040226-1 Briggs and Stratton 20,000 Watt Home Generator System

Model: 040226-1

Save
 Part Not Listed?Part Not Listed?
product name

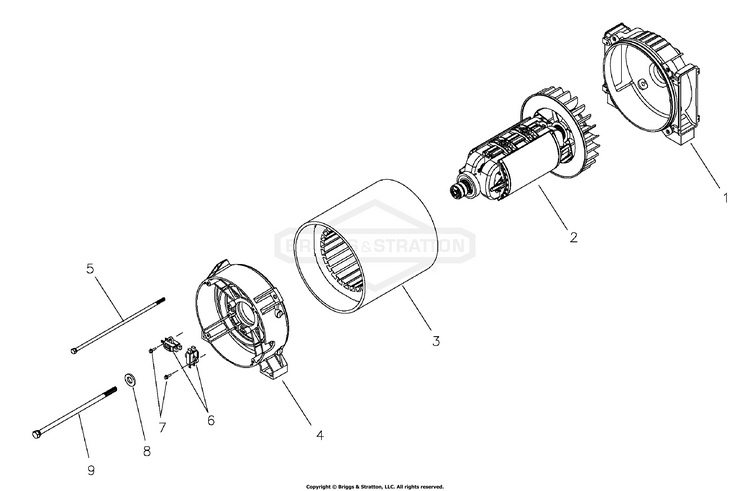

Alternator Group

...
...
1
ADAPTER, Engine BS-195235GS
...
2
ROTOR BS-706426
...
3
STATOR BS-199254GS
...
4
RBC BS-195234GS
...
5
SCREW BS-315199GS
...
6
ASSEMBLY, Brush BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
WASHER BS-203200GS
...
9
BOLT BS-315204GS

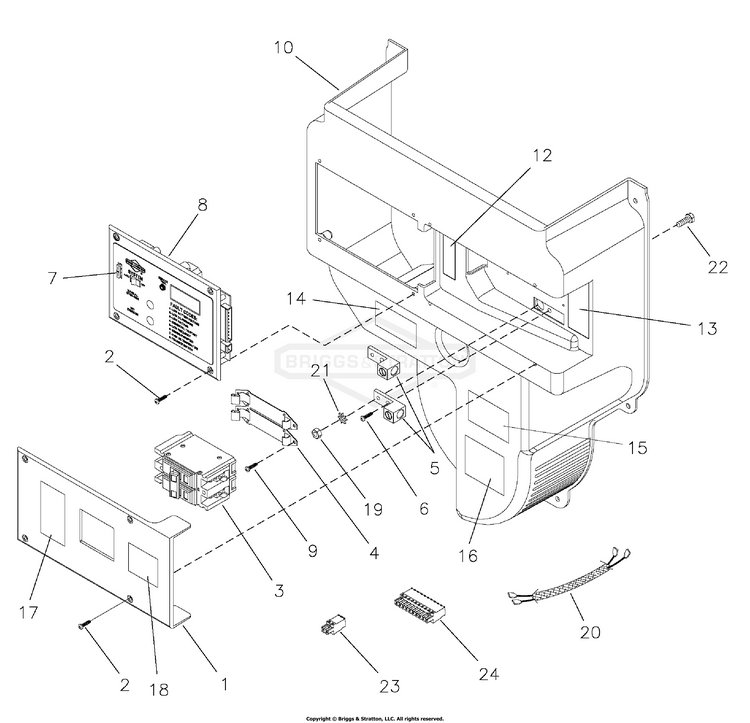

Control Panel Group

...
...
1
COVER, Circuit Breaker w/Decals BS-198911GS
...
3
BREAKER, Circuit, 100A BS-311318GS
...
4
BRACKET, Mounting / Breaker BS-192770GS
...
5
LUG BS-199011GS
...
6
PLASTITE BS-191991GS
...
7
FUSE, Auto Type, 15 Amp BS-84010838
...
8
CONTROL PANEL ASSEMBLY BS-311353GS
...
9
SCREW BS-197492GS
...
10
DUCT BS-198910GS
...
12
DECAL, TerminalBlock BS-198549GS
...
13
DECAL, Ground, Neutral BS-198550GS
...
14
DECAL, Warning, Outdoor Install BS-205393GS
...
15
DECAL BS-193297GS
...
16
DECAL SHEET, WARNINGS BS-705920
...
17
DECAL, Caution, Electric Shock BS-205394GS
...
18
DECAL, Warning Shock BS-205395GS
...
20
HARNESS, WIRING BS-198517GS
...
23
CONNECTOR, 2 Pin BS-198515GS
...
24
CONNECTOR, 10 Pin BS-198516GS
...
--
HARNESS, Wiring (Not Shown) BS-202882GS
...
--
HARNESS, AVR (Not Shown) BS-203020GS

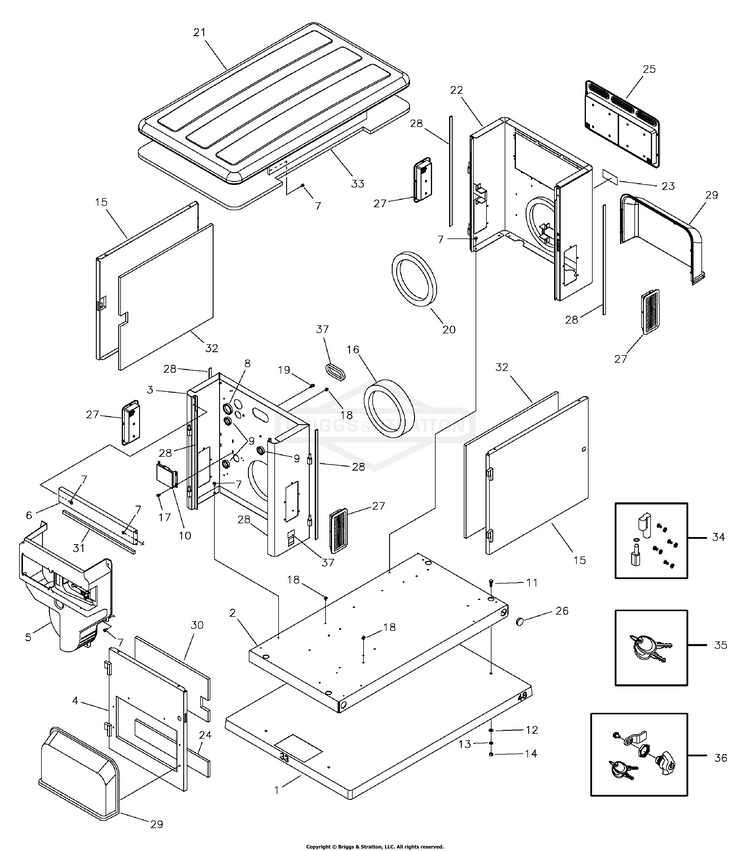

Enclosure Group

...
...
1
PAD, Mounting w/ Holes BS-197275GS
...
2
BASE BS-U313049GS
...
3
BULKHEAD, Engine BS-202984GS
...
4
ASSEMBLY, Door, Engine End BS-198986GS
...
5
DUCT BS-198910GS
...
6
SUPPORT, Rail BS-198993GS
...
7
SCREW, HEX, 1/4-20X.5 BS-704130
...
8
BUSHING, Snap BS-203015GS
...
9
BUSHING, Snap, 1-1/2 BS-197493GS
...
10
REGULATOR, Voltage BS-198338GS
...
15
DOOR BS-200438GS
...
16
SEAL BS-770041
...
17
TAPTITE BS-192778GS
...
18
MOUNT, Tie Wrap BS-195733GS
...
19
CLIP BS-192940GS
...
20
SEAL-FOAM BS-770424
...
21
ROOF BS-198893GS
...
22
BULKHEAD, Alternator BS-202988GS
...
23
DECAL BS-200409GS
...
24
INSULATION, Engine Door, Bottom BS-203303GS
...
25
ASSEMBLY, Vent, Exhaust BS-198926GS
...
26
PLUG, Hole BS-198460GS
...
27
VENT BS-198927GS
...
28
SEAL, Foam BS-198888GS
...
29
COVER, Air Intake, Engine BS-194694GS
...
30
INSULATION, Engine Door, Top BS-203302GS
...
31
SEAL, Foam BS-197312GS
...
32
INSULATION BS-196397GS
...
33
INSULATION BS-195597GS
...
34
HINGE BS-198890GS
...
35
KEY, Latch BS-207652GS
...
36
LATCH BS-198889GS
...
37
DECAL BS-203845GS

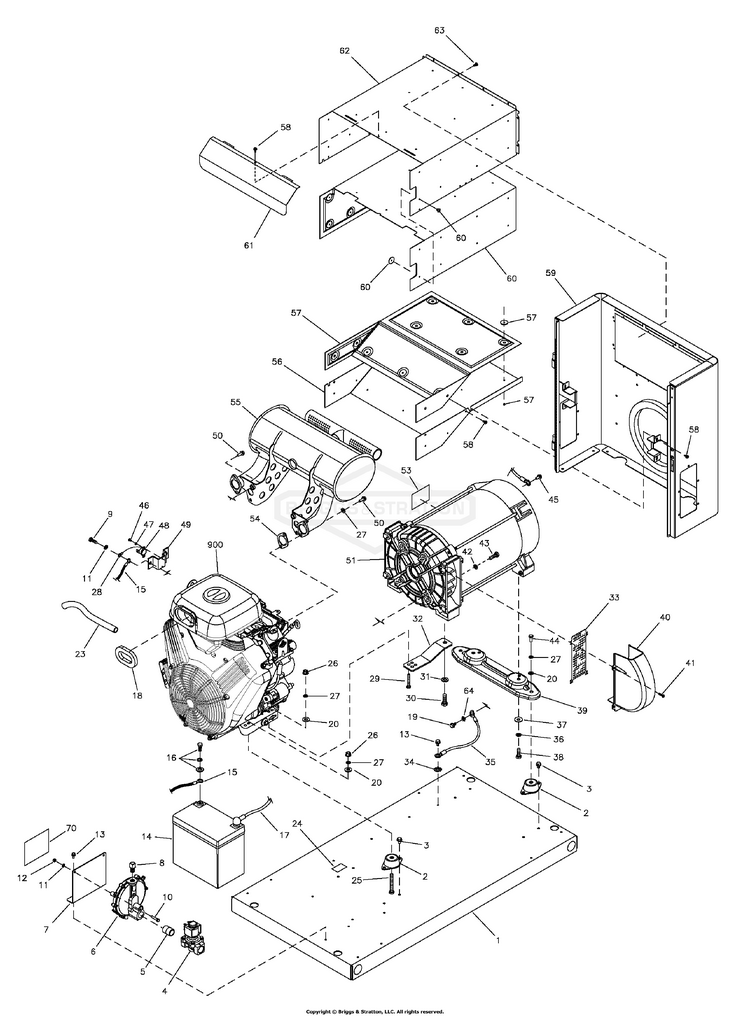

Main Unit Group

...
...
1
BASE BS-U313049GS
...
2
MOUNT, Vibration BS-187594GS
...
3
CAPSCREW, Hex Head, Trilobular, 5/16, 18 x 1/2 BS-24910GS
...
4
SOLENOID, Gas Fuel BS-194683GS
...
5
FITTING BS-194829GS
...
6
REGULATOR, NG/LPG BS-194830GS
...
7
BRACKET BS-313562GS
...
8
FITTING, 3/4 Flare to 3/8 NPT BS-202382GS
...
13
SCREW, HEX, 1/4-20X.5 BS-704130
...
14
BATTERY BS-194818GS
...
15
WIRE BS-185939UGS
...
16
KIT, Battery Hardware BS-198913GS
...
17
WIRE BS-198593DGS
...
18
SEAL-FOAM BS-770423
...
19
SCREW BS-B4995GS
...
23
HOSE, Oil Drain BS-1723165SM
...
24
DECAL, Operation Instructions BS-186640GS
...
28
WIRE BS-186790CGS
...
32
SUPPORT, Engine BS-B194685GS
...
33
SCREEN BS-202922GS
...
35
WIRE BS-185939WGS
...
39
SUPPORT, Alternator BS-B198896GS
...
40
ENGINE (Contact Engine Manufacturer) BS-202761GS
...
45
SCREW, HEX, 1/4-20X.5 BS-704130
...
48
SWITCH, Temp BS-204426GS
...
49
PLATE, Temp Switch BS-313561GS
...
50
SCREW BS-846149
...
53
DECAL SHEET, WARNINGS BS-705920
...
54
GASKET BS-80972
...
55
MUFFLER BS-202885GS
...
56
BASE, Muffler Box BS-202884GS
...
57
INSULATION BS-203533GS
...
58
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
59
BULKHEAD, Alternator BS-202988GS
...
60
INSULATION BS-203534GS
...
61
COLLECTOR, Muffler Box BS-194682GS
...
62
BOX, Muffler Top BS-202883GS
...
63
SCREW, 10-32 x 5/8 BS-192445GS
...
70
DECAL, Requirements, Fuel BS-205397GS
...
--
MANUAL, Installation (Not Shown) BS-202826GS
...
--
MANUAL, Operator’s (Not Shown) BS-202827GS
...
--
MANUAL, Engine (Not Shown) BS-277810TRI
...
--
KIT, Manual ACC (Not Shown) BS-204510GS
...
--
PAINT, Touch Up, Gray (Not Shown) BS-198810GS
...
--
PAINT, Touch Up, Silver (Not Shown) BS-198811GS
...
--
CAP, Funnel, Oil Bottle (Not Shown) BS-B3518GS
...
--
HOSE-FLEX NG/LPG (Not Shown) BS-202295GS
...
--
KIT,SERVICE,WALL PLATE (Not Shown) BS-313326GS
...
--
KIT, Decal (Not Shown) BS-203438GS
...
--
FILTER, A/C Cartridge (Not Shown) BS-841856
...
--
FILTER, PreCleaner (Not Shown) BS-692520
...
--
FILTER, Oil (Not Shown) BS-842921
...
--
PAINT, Spray, Gray (Optional Accessory) BS-199474GS
...
--
PAINT, Spray, Silver (Optional Accessory) BS-199475GS
...
--
ACC, KIT, MAINTENANCE, 17-26000 (Optional Accessory) BS-6872
...
--
KIT, Cold Weather (IncludesBattery and Oil Warmers) (Optional Accessory) BS-6030

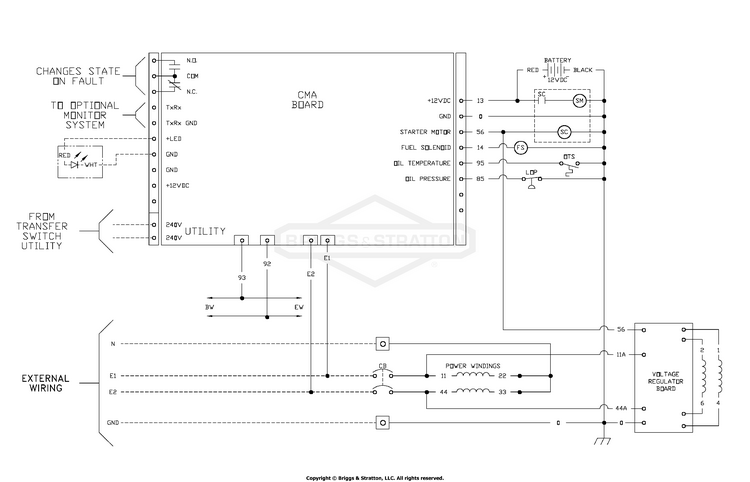

Wiring Diagram

...

No Parts Available for this Schematic

Wiring Schematic

...

No Parts Available for this Schematic

...
...
...
...
...
