040220A-0 Briggs and Stratton 7,000 Watt Home Generator System

Model: 040220A-0

Save
 Part Not Listed?Part Not Listed?
product name

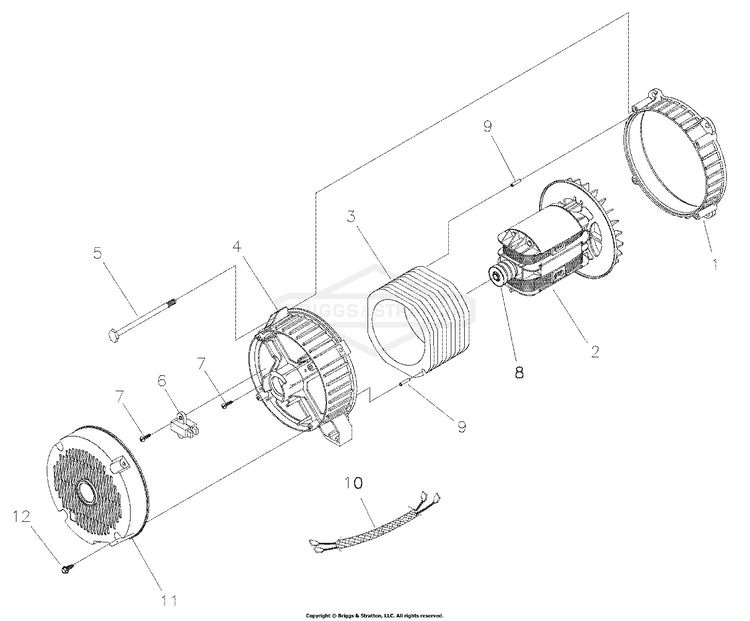

Alternator Group

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-195430GS
...
3
STATOR BS-207354GS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 140 SEMS BS-86308KGS
...
6
ASSY, Holder, Brush BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
BEARING BS-65791GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
HARNESS, Volt Reg/Brush BS-193472GS
...
11
COVER, Bearing BS-192906GS
...
12
TAPTITE, M5 - .8 x 10 BS-74908GS

Control Panel Group

...
...
1
PANEL, Control BS-195229GS
...
2
PANEL, Control BS-199334GS
...
3
PANEL, Side BS-198990GS
...
4
BOARD, Circuit BS-195004GS
...
--
STANDOFF BS-186413GS
...
5
BOARD, Battery Charge BS-195003GS
...
--
STANDOFF BS-186413GS
...
6
BREAKER, Circuit, 30A BS-190818EGS
...
7
SWITCH, ON/OFF BS-87799GS
...
11
SWITCH BS-193423GS
...
12
HOLDER, Fuse BS-195006GS
...
13
BUSHING, Snap BS-192455GS
...
14
BUSHING, Snap BS-186173GS
...
15
BUSHING, Snap BS-186582GS
...
16
HARNESS, WIRING BS-195007GS
...
18
KIT, Retainer Clips BS-195009GS
...
22
WIRE BS-193171GS
...
23
SOLENOID, Starter BS-691656
...
24
CABLE, Starter Solenoid to Starter Motor, 6 AWG Red BS-194659GS
...
25
KIT, Hardware BS-194251GS
...
26
WIRE BS-188573AGS
...
27
KIT, Hardware, Battery BS-199844GS
...
28
KIT, Hardware, Battery Terminal BS-193347GS
...
29
BATTERY BS-188443GS
...
30
REGULATOR, FUEL BS-84012834
...
31
FITTING BS-186151GS
...
32
HOSE, Flex, NG/LPG BS-186148GS
...
33
FITTING BS-186150GS
...
34
HOSE, NG/LPG BS-195005GS
...
35
WIRE BS-193537CGS
...
36
FITTING BS-192449GS
...
37
SOLENOID, Gas Fuel BS-194683GS
...
41
DECAL, Operation Instructions BS-186640GS
...
42
DECAL BS-195306GS
...
43
DECAL SHEET, WARNINGS BS-705920
...
46
DECAL, Operation Instructions BS-186640GS
...
48
DECAL, Requirements, Fuel BS-205397GS

Enclosure Group

...
...
2
BASE BS-U191852GS
...
3
PANEL, Side BS-198989GS
...
4
PANEL, End BS-199333GS
...
5
PANEL, Side BS-199335GS
...
6
COVER, Oil Drain BS-U208787GS
...
7
DUCT (Includes Ref. No. 49) BS-195228GS
...
9
ROOF BS-199009GS
...
10
REGULATOR, Voltage BS-314338GS
...
11
KIT, Hardware, Enclosure BS-194991GS
...
12
CRADLE BS-B191860GS
...
13
PLUG, Hole BS-185976GS
...
14
DECAL BS-199296GS
...
16
DECAL BS-200409GS
...
18
DECAL BS-195642GS
...
19
DECAL, Operation Instructions BS-186640GS
...
25
DECAL BS-206824GS
...
48
WIRE BS-195496GS
...
49
SEAL, Foam BS-193061GS

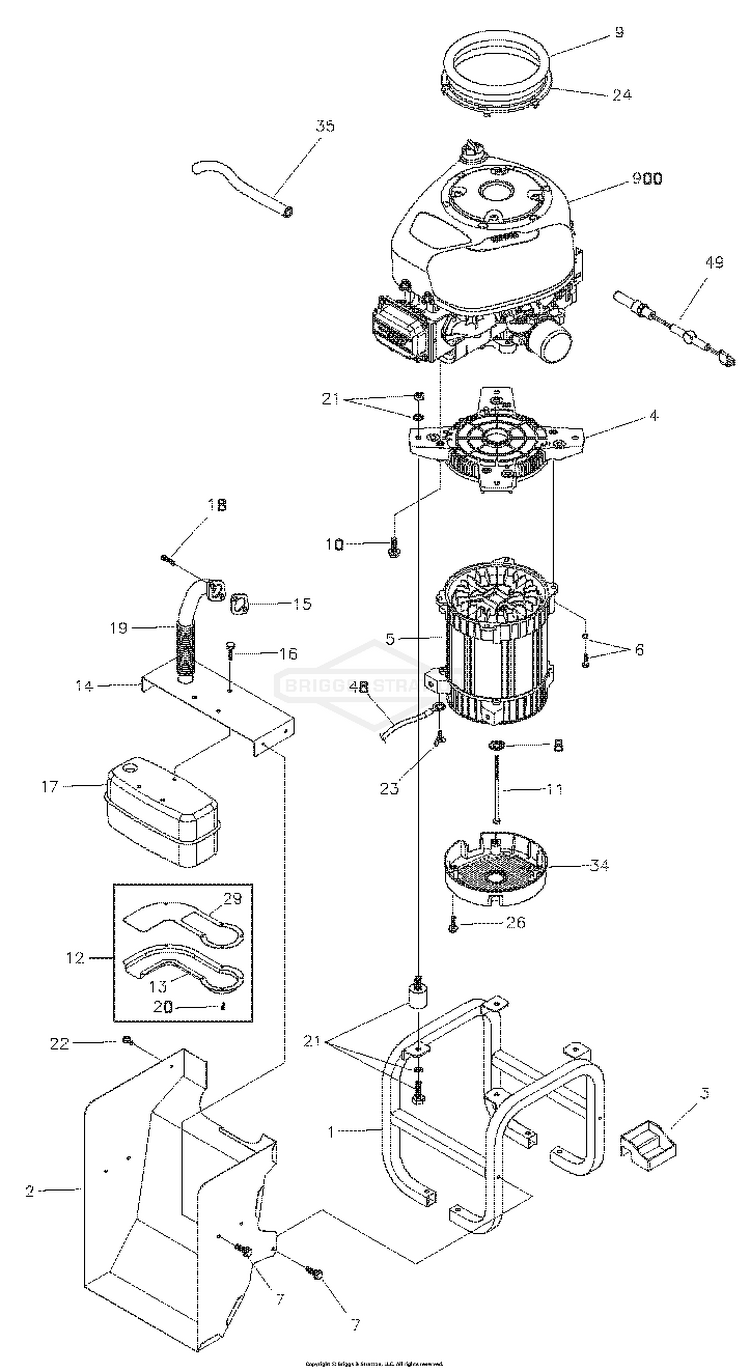

Main Unit Group

...
...
1
WELDMENT, Cradle BS-B191860GS
...
2
ASSY, Duct, Air Muffler BS-194568GS
...
3
TRAY, Oil Drain BS-193536GS
...
4
ADAPTER, Engine BS-191793GS
...
5
ASSY, Alternator (see page 4) BS-~NSP
...
6
KIT, Hardware Mounting Adapter BS-194728GS
...
8
WASHER, 8.4 x 22.2 x 3 BS-96796GS
...
9
SEAL, Engine Air Intake BS-193012GS
...
10
SCREW-HEX WSHR HD TAP BS-2828635SM
...
11
HHCS, 5/16-24 x 9.84 BS-187365HGS
...
12
KIT, Deflector Muffler Assy w/Hardware BS-194990GS
...
13
ASSY, Deflector Muffler BS-193605GS
...
14
KIT-MUFFLER BS-315466GS
...
15
GASKET, Exhaust BS-692236
...
16
SCREW, M8 1.25 x 15, Taptite BS-83512GS
...
17
MUFFLER BS-207059GS
...
18
SCREW BS-698941
...
19
PIPE, Exhaust BS-194159GS
...
20
KIT, Muffler Hardware BS-195008GS
...
21
KIT, Vibration Mount BS-194209GS
...
22
CLIP, Retainer Fuel Hose BS-192940GS
...
23
SCREW, Wing, M6 - 1.0 x 16 BS-86494GS
...
24
COLLAR, Inlet Air BS-192853GS
...
26
SCREW, M5- .8 x 10 Taptite BS-74908GS
...
34
COVER, Bearing BS-192906GS
...
35
HOSE, Oil Drain BS-1723165SM
...
48
WIRE, Ground BS-15253621GS
...
49
WARMER, Oil BS-1916
...
--
MANUAL, Operator’s Parts Not Illustrated BS-207539GS
...
--
KIT, Manual/Accessory, ELS Parts Not Illustrated BS-207358GS
...
--
ASSY, Disconnect Box Parts Not Illustrated BS-194089GS
...
--
HOSE-FLEX NG/LPG Parts Not Illustrated BS-202295GS
...
--
PAINT, Touchup, Gray Parts Not Illustrated BS-198810GS
...
--
ASSY, Plate Status, Auto Parts Not Illustrated BS-194989GS
...
--
MANUAL, Engine Parts Not Illustrated BS-277766TRI
...
--
KIT, CNVRSN, LP Parts Not Illustrated BS-195069GS
...
--
BIT, Screw Parts Not Illustrated BS-196731BGS
...
--
WARMER, Battery Optional Accessories BS-01915
...
--
PAINT, Touchup Spray, 12oz, Gray Optional Accessories BS-199474GS
...
...
...
...
...
