040212-1 Briggs and Stratton 12,000 Watt Home Generator System

Model: 040212-1

Save
 Part Not Listed?Part Not Listed?
product name

Alternator Group

...
...
1
ADAPTER, Engine BS-192970GS
...
2
GRID BS-192973GS
...
3
BOLT BS-209142GS
...
4
SCREW BS-31183GS
...
5
STATOR BS-192969GS
...
6
PLUG BS-192962GS
...
7
COVER, Rear Bearing BS-192966GS
...
9
COVER, Capacitor BS-192967GS
...
10
BLOCK, Terminal BS-192968GS
...
15
KIT, Electronics BS-194579GS
...
16
ROTOR BS-192971GS
...
20
FAN BS-206897GS
...
21
RING, Fixing BS-206927GS
...
22
BEARING BS-206594GS
...
--
KIT, Capacitors (Includes 2 ea. 35uF) BS-312699GS
...
--
CAPACITOR (Optional service part, order as requried) BS-317837GS
...
--
CAPACITOR, 40uF (1 ea) (Optional service part, order as requried) BS-317838GS

Control Panel Group

...
...
1
COVER BS-198911GS
...
3
CIRCUIT BREAKER, 60A BS-311316GS
...
4
BRACKET, Mounting Breaker BS-192770GS
...
5
LUG BS-199011GS
...
6
CAPSCREW, Plastite, 1/4-10 x 1 BS-191991GS
...
7
FUSE, Auto Type, 15 Amp BS-84010838
...
8
CONTROL PANEL ASSEMBLY BS-311353GS
...
9
SCREW, Pt, M4 - 1.79 x 16.0 BS-197492GS
...
10
DUCT BS-198910GS
...
12
DECAL, Terminal Block BS-198549GS
...
13
DECAL, Ground, Neutral BS-198550GS
...
14
DECAL, Warning, Outdoor Install BS-205393GS
...
15
DECAL, Caution, Standby BS-193297GS
...
16
DECAL SHEET, WARNINGS BS-705920
...
17
DECAL, Caution, Electric Shock BS-205394GS
...
18
DECAL, Warning Shock BS-205395GS
...
20
CONNECTOR, Terminal, 10 Pin (Not Illustrated) BS-198516GS
...
23
CONNECTOR, Terminal, 2 Pin (Not Illustrated) BS-198515GS
...
24
WIRING HARNESS (Not Illustrated) BS-198517GS
...
--
WIRING HARNESS (Not Illustrated) BS-201090GS

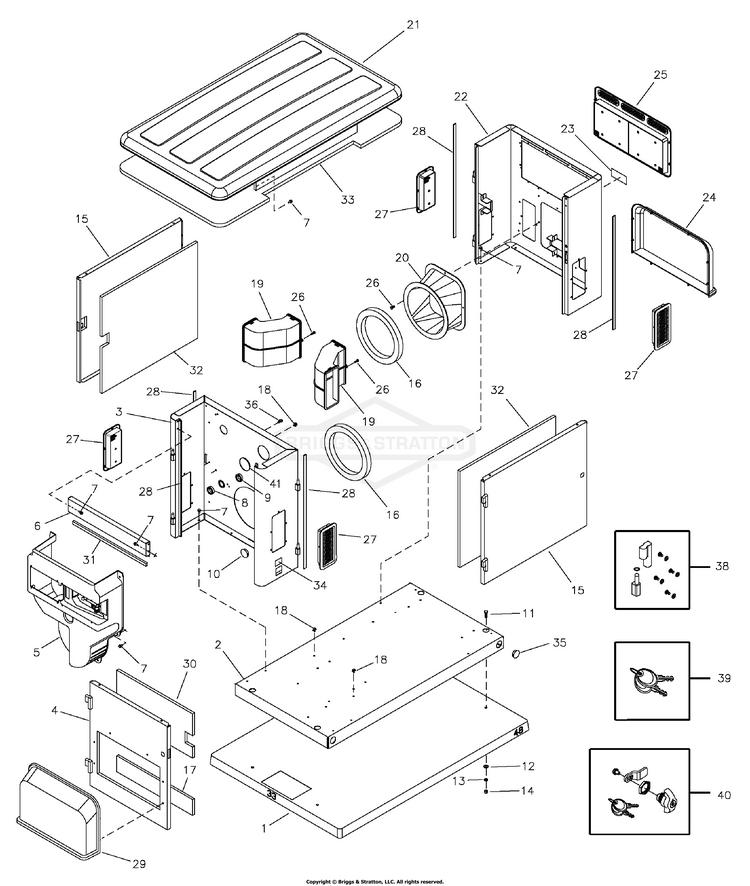

Enclosure Group

...
...
1
PAD, Mounting w/ Holes BS-197275GS
...
2
BASE BS-T203030GS
...
3
BULKHEAD, Engine BS-198915GS
...
4
DOOR BS-198891GS
...
5
DUCT BS-198910GS
...
6
SUPPORT, Rail BS-198917GS
...
7
SCREW, HEX, 1/4-20X.5 BS-704130
...
8
BUSHING, Snap BS-186173GS
...
9
BUSHING, Snap BS-197493GS
...
10
PLUG, Hole BS-198461GS
...
15
DOOR BS-198892GS
...
16
SEAL, Foam BS-199629GS
...
17
INSULATION BS-203303GS
...
18
MOUNT, Tie Wrap BS-195733GS
...
19
DUCT BS-195935GS
...
20
ADAPTER, Alternator BS-203029GS
...
21
DOOR BS-198893GS
...
22
BULKHEAD, Alternator BS-201281GS
...
23
DECAL BS-200409GS
...
24
COVER, Air Intake BS-194679GS
...
25
VENT BS-198926GS
...
26
CLIP BS-B1797GS
...
27
VENT BS-198927GS
...
28
SEAL, Foam BS-198888GS
...
29
COVER, Air Intake BS-194694GS
...
30
INSULATION BS-203302GS
...
31
SEAL, Foam BS-197312GS
...
32
INSULATION BS-196397GS
...
33
INSULATION BS-195597GS
...
34
DECAL, Operation Instructions BS-186640GS
...
35
PLUG, Hole BS-198460GS
...
36
CLIP BS-192940GS
...
38
HINGE BS-198890GS
...
39
KEY, Latch BS-207652GS
...
40
LATCH BS-204700GS
...
41
PLUG, Hole BS-202555GS

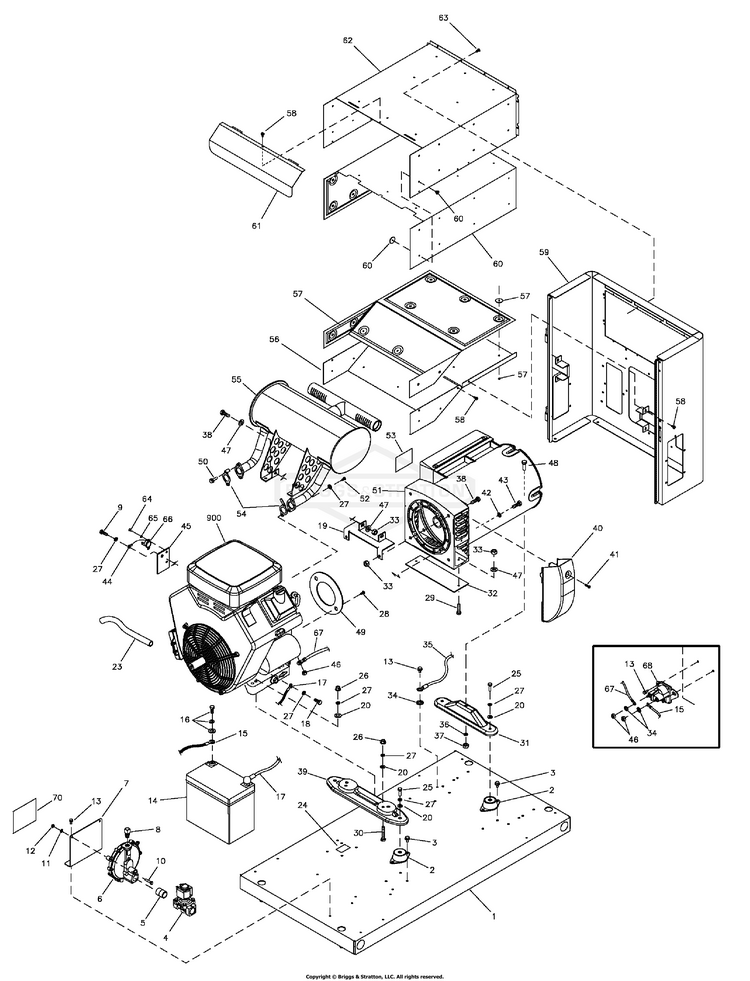

Main Unit Group

...
...
1
BASE BS-T203030GS
...
2
MOUNT, Vibration BS-198899GS
...
3
CAPSCREW, Hex Head, Trilobular, 5/16, 18 x 1/2 BS-24910GS
...
4
SOLENOID, Gas Fuel BS-194683GS
...
5
FITTING BS-194829GS
...
6
REGULATOR, NG/LPG BS-194830GS
...
7
BRACKET BS-313562GS
...
8
FITTING, 3/4 Flare to 3/8 NPT BS-202382GS
...
13
SCREW, HEX, 1/4-20X.5 BS-704130
...
14
BATTERY BS-194818GS
...
15
WIRE BS-185939VGS
...
16
KIT, Battery Hardware BS-198913GS
...
17
WIRE BS-198593BGS
...
19
BRACKET BS-201824GS
...
23
HOSE, Oil Drain BS-1723165SM
...
24
DECAL, Operation Instructions BS-186640GS
...
31
SUPPORT, Alternator BS-B198897GS
...
32
PLATE, Cover BS-200013GS
...
33
NUT BS-194005GS
...
35
WIRE BS-186790HGS
...
39
SUPPORT, Alternator BS-B198896GS
...
40
DUCT BS-201817GS
...
41
SCREW BS-199999GS
...
44
WIRE BS-186790CGS
...
45
PLATE, Temp Switch BS-186206GS
...
49
DISK BS-B4260GS
...
50
SCREW BS-692062
...
52
SCREW BS-40976GS
...
53
DECAL BS-193506GS
...
54
GASKET BS-806425
...
55
MUFFLER BS-198758GS
...
56
BASE BS-194681GS
...
57
INSULATION BS-198928GS
...
58
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
59
BULKHEAD, Alternator BS-201281GS
...
60
INSULATION BS-198929GS
...
61
COLLECTOR, Muffler Box BS-194682GS
...
62
BOX, Muffler Top BS-194680GS
...
63
SCREW, 10-32 x 5/8 BS-192445GS
...
66
SWITCH, Temp BS-204426GS
...
67
WIRE BS-198593CGS
...
68
SOLENOID, Starter BS-691656
...
70
DECAL, Requirements, Fuel BS-205397GS
...
--
KIT, Manual ACC (Not Illustrated) BS-203061GS
...
--
PAINT, Touch Up, Silver (Not Illustrated) BS-198811GS
...
--
CAP, Funnel, Oil Bottle (Not Illustrated) BS-B3518GS
...
--
HOSE-FLEX NG/LPG (Not Illustrated) BS-202295GS
...
--
KIT,SERVICE,WALL PLATE (Not Illustrated) BS-313326GS
...
--
KIT, Decal (Not Illustrated) BS-198918GS
...
--
FILTER, A/C Cartridge (Not Illustrated) BS-841359
...
--
FILTER, Pre Cleaner (Not Illustrated) BS-272490S
...
--
FILTER, Oil (Not Illustrated) BS-492932B
...
--
PAINT, Spray, Silver (Optional Accessory) BS-199475GS
...
--
KIT, Maintenance (Optional Accessory) BS-6873
...
--
KIT, Cold Weather (IncludesBattery and Oil Warmers) (Optional Accessory) BS-6030

Wiring Diagram - Standby Generator

...

No Parts Available for this Schematic

Wiring Schematic - Standby Generator

...

No Parts Available for this Schematic

...
...
...
...
...
