030274-0 Briggs and Stratton Portable Generator ProClassic 5000-3 Briggs and Stratton Portable Generator UK

Model: 030274-0

Save
 Part Not Listed?Part Not Listed?
product name

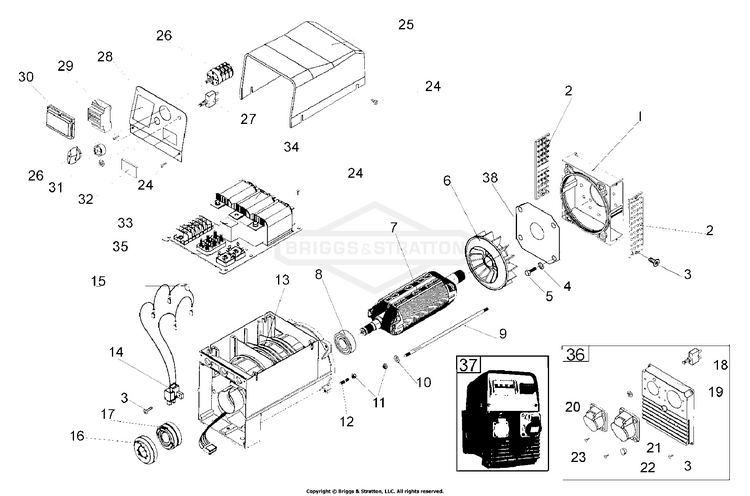

Alternator & Outlet Panel

...
...
1
FLANGE PLATE BS-102271GS
...
2
SIDE GRILL (PLASTIC) BS-102139GS
...
3
SCREW MC PPHD M5*10MM BS-~NSP
...
4
WASHER LOCK M10/ 3/8 OXY BLACK BS-~NSP
...
5
SCREW CAP 3/8" UNC X 1" BS-~NSP
...
6
ROTOR FAN SINCRO BS-102073GS
...
7
ROTOR ASSEMBLY BS-102336GS
...
8
ROTOR BEARING BS-102038GS
...
9
ROTOR BOLT, M8-1.25*265MM BS-102160GS
...
10
WASHER FLAT M8 & 5/16" BS-~NSP
...
11
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
12
STUD M8*30MM BS-102131GS
...
13
STATOR ASSY ET4 3PHASE BS-102337GS
...
14
BRUSHASSEMBLY BS-102240GS
...
15
VARISTOR BS-102338GS
...
16
SLIP RING COVER BS-102243GS
...
17
SLIP RING ASSEMBLY BS-102242GS
...
18
CIRCUIT BREAKER 10A BS-102132GS
...
19
OUTLET PANEL BLANK SINCRO 3 PHASE BS-102339GS
...
20
OUTLET 230V 16AMP BLUE BS-102418GS
...
21
SOCKET OUTLET 16A 230/415V BS-102341GS
...
22
END CAP PLASTIC PLUG BS-102085GS
...
23
SCREW SELF TAP #10*15MM BS-~NSP
...
24
SCREW MACHINE M5*8MM BS-~NSP
...
25
COVER TOP BOX BS-102287GS
...
26
SWITCH ROTORY SINCRO 3PHASE BS-102342GS
...
27
CIRCUIT BREAKER 3A BS-102343GS
...
28
PANEL ASSY TOP BOX (ALUMINIUM) BS-102344GS
...
29
CIRCUIT BREAKER ASSY SINCRO 3PHASE 6A BS-102345GS
...
30
COVER CLEAR PLASTIC (CIRCUIT BREAKERS) BS-102346GS
...
31
LAMP HOLDER ASSY SINCRO 3 PHASE BS-102347GS
...
32
VOLTMETER 360-440V L.E.D. TYPE BS-102348GS
...
33
FILTER ASSY (WAVE FORM) BS-102349GS
...
34
TRANSFORMER ASSY COMPOUND BS-102350GS
...
35
BRIDGE RECTIFIER BS-102161GS
...
36
OUTLET PANEL COMPLETE ET4.0 BS-102927GS
...
37
ALTERNATOR SINCRO ET4.0 3/1PHASE 4KVA BS-102352GS
...
38
GUARD FINGER BS-102252GS

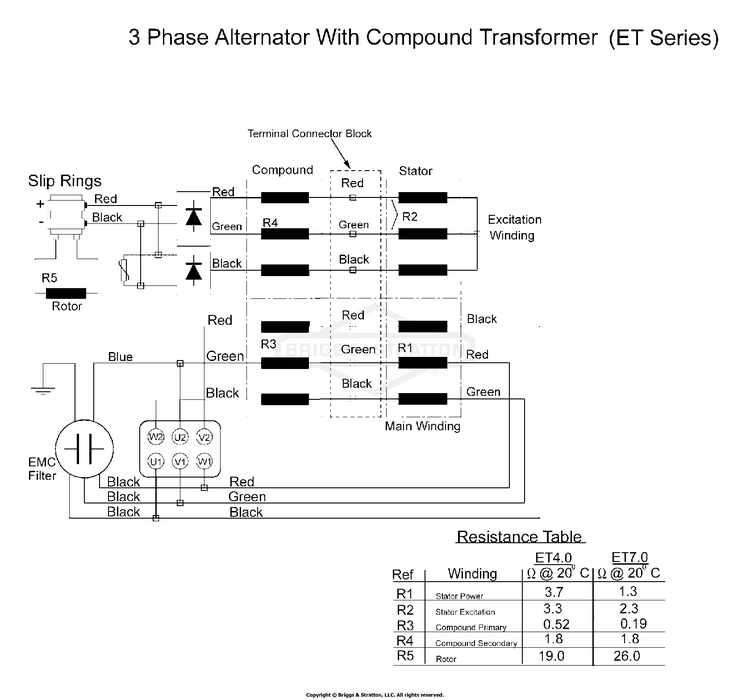

Alternator Wiring Diagram

...

No Parts Available for this Schematic

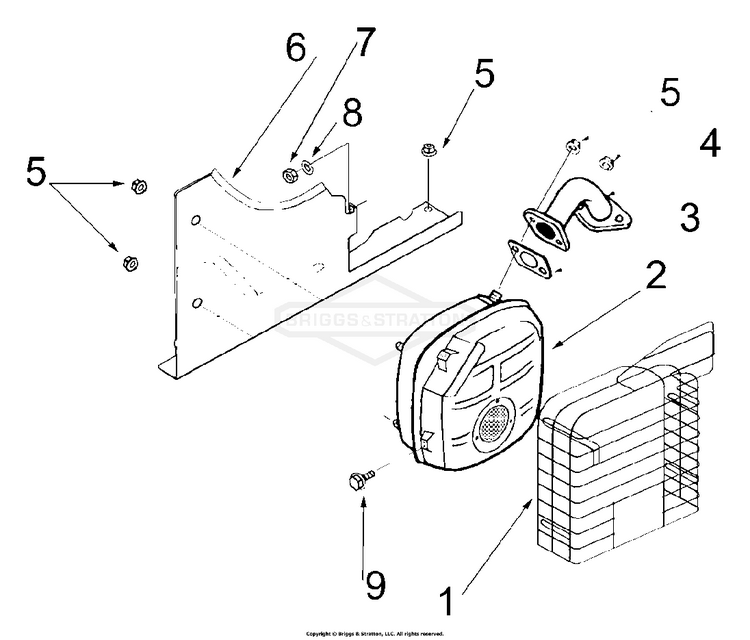

Exhaust And Fittings

...
...
1
GUARD MUFFLER BS-103302GS
...
2
MUFFLER BS-103303GS
...
3
GASKET EXHAUST BS-710250
...
4
MANIFOLD, EXHAUST BS-103308GS
...
5
NUT FLANGE M8 BS-710090
...
6
BRACKET, MUFFLER BS-103297GS
...
7
LOCKNUT BS-691105
...
8
WASHER, 5/16" LOCK BS-5025170SM
...
9
SCREW TAPTITE M6*12 BS-710023

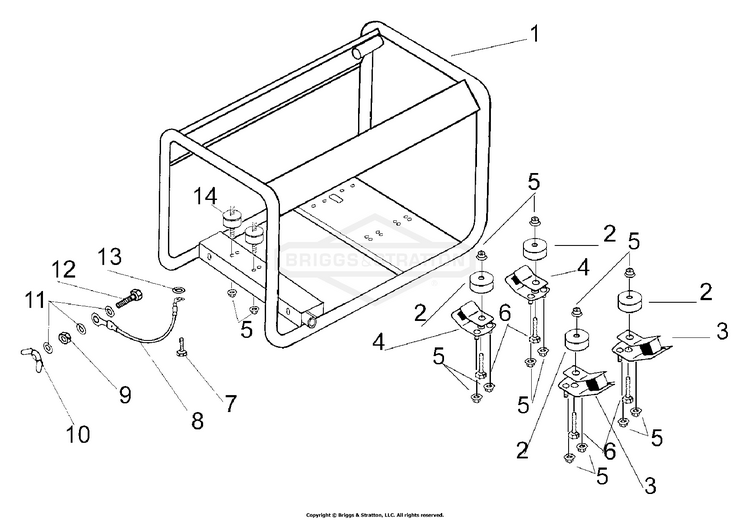

Frame And Fittings

...
...
1
CRADLE PROCLASSIC 5000, PROPLUS4500 BS-103216GS
...
2
SPACER 24MM BS-102136GS
...
3
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
4
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
5
NUT FLANGE M8-1.25 BS-~NSP
...
6
SCREW SET HXHD M8-1.25X60MM BS-103007GS
...
7
SCREW SET M8-1.25X12 PLATED BS-~NSP
...
8
LEAD EARTH ASSY 145MM BS-102050GS
...
9
NUT FULL M6-1.0 BS-~NSP
...
10
NUT WING M6-1.0 BS-102036GS
...
11
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
12
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
13
WASHER SHAKEPROOF M8 INT BS-~NSP
...
14
VIBRATION MOUNT 32MM DIAMETER BS-102034GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
DECAL, PROCLASSIC 5000-3 (Not Illustrated) BS-103235GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
Owner's MANUAL EUROPE 25L (Not Illustrated) BS-MS5796

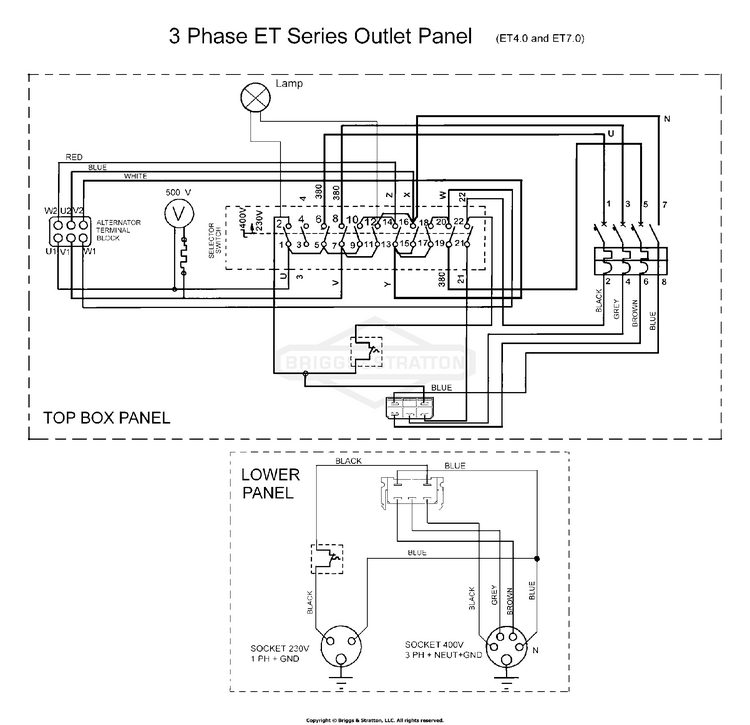

Panel Wiring Diagram

...

No Parts Available for this Schematic

...
...
...
...
...
