030273-0 Briggs and Stratton Portable Generator ProClassic 5000 UK

Model: 030273-0

Save
 Part Not Listed?Part Not Listed?
product name

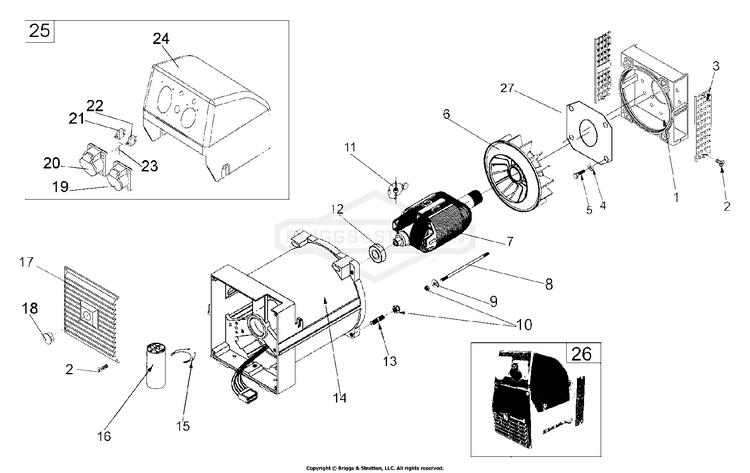

Alternator & Outlet Panel

...
...
1
FLANGE PLATE BS-102271GS
...
2
SCREW MC PPHD M5*10MM BS-~NSP
...
3
SIDE GRILL (PLASTIC) BS-102139GS
...
4
WASHER LOCK M10/ 3/8 OXY BLACK BS-~NSP
...
5
SCREW CAP 3/8 UNC * 1 1/4" BS-102279GS
...
6
ROTOR FAN SINCRO BS-102073GS
...
7
ROTOR ASSEMBLY ER 4.2 BS-102535GS
...
8
ROTOR BOLT 200MM M8+5/16UNF BS-102039GS
...
9
WASHER FLAT M8 & 5/16" BS-~NSP
...
10
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
11
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
12
ROTOR BEARING BS-102038GS
...
13
STUD M8*30MM BS-102131GS
...
14
STATOR ASSEMBLY ER 4.2 BS-102534GS
...
15
CAPACITOR CLIP EP SERIES BS-~NSP
...
16
CAPACITOR 31.5UF BS-102219GS
...
17
END PANEL BLANK BS-102407GS
...
18
END CAP PLASTIC PLUG BS-102085GS
...
19
OUTLET 230V 16AMP BLUE BS-102418GS
...
20
SOCKET OUTLET 32A 115V BS-102406GS
...
21
CIRCUIT BREAKER 30A BS-102289GS
...
22
CIRCUIT BREAKER 15A BS-102133GS
...
23
SWITCH VOLTAGE CHANGE-OVER BS-102404GS
...
24
OUTLET PANEL BLANK ER 4.2 UK BS-102796GS
...
25
OUTLET PANEL COMPLETE ER4.2 UK BS-102795GS
...
26
ALTERNATOR SINCRO ER 4.2 UK BS-102730GS
...
27
GUARD FINGER BS-102252GS

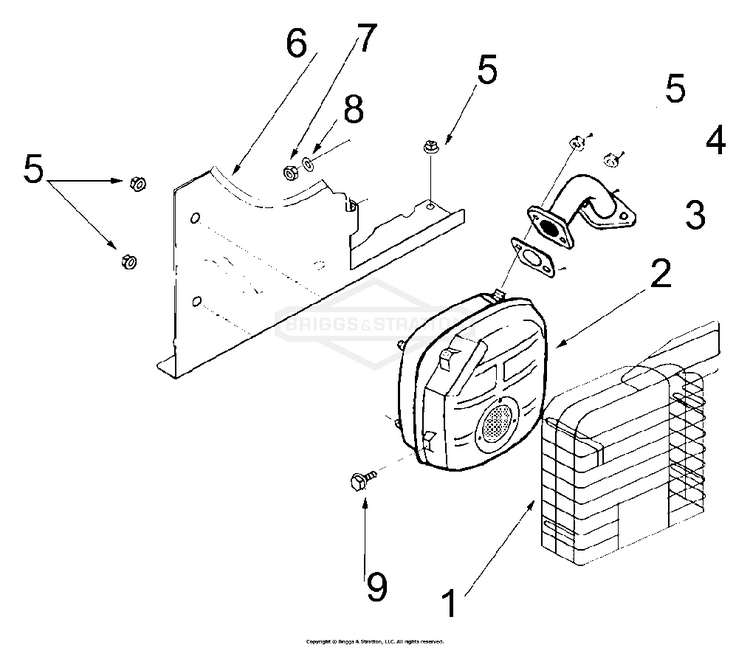

Exhaust And Fittings

...
...
1
GUARD MUFFLER BS-103302GS
...
2
MUFFLER BS-103303GS
...
3
GASKET EXHAUST BS-710250
...
4
MANIFOLD, EXHAUST BS-103308GS
...
5
NUT FLANGE M8 BS-710090
...
6
BRACKET, MUFFLER BS-103297GS
...
7
LOCKNUT BS-691105
...
8
WASHER, 5/16" LOCK BS-5025170SM
...
9
SCREW TAPTITE M6*12 BS-710023

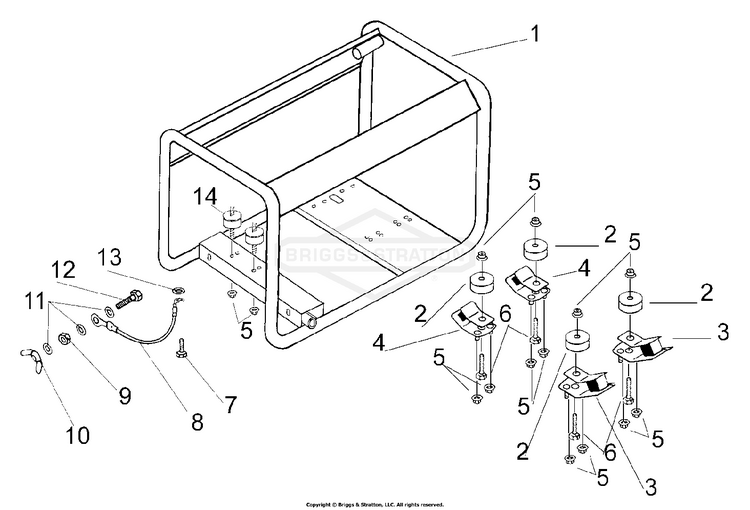

Frame And Fittings

...
...
1
CRADLE PROCLASSIC 5000, PROPLUS4500 BS-103216GS
...
2
SPACER 24MM BS-102136GS
...
3
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
4
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
5
NUT FLANGE M8-1.25 BS-~NSP
...
6
SCREW SET HXHD M8-1.25X60MM BS-103007GS
...
7
SCREW SET M8-1.25X12 PLATED BS-~NSP
...
8
LEAD EARTH ASSY 145MM BS-102050GS
...
9
NUT FULL M6-1.0 BS-~NSP
...
10
NUT WING M6-1.0 BS-102036GS
...
11
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
12
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
13
WASHER SHAKEPROOF M8 INT BS-~NSP
...
14
VIBRATION MOUNT 32MM DIAMETER BS-102034GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
DECAL, PROCLASSIC 5000 (Not Illustrated) BS-103179GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
OWNER’S MANUAL EUROPE 25L (Not Illustrated) BS-MS5796

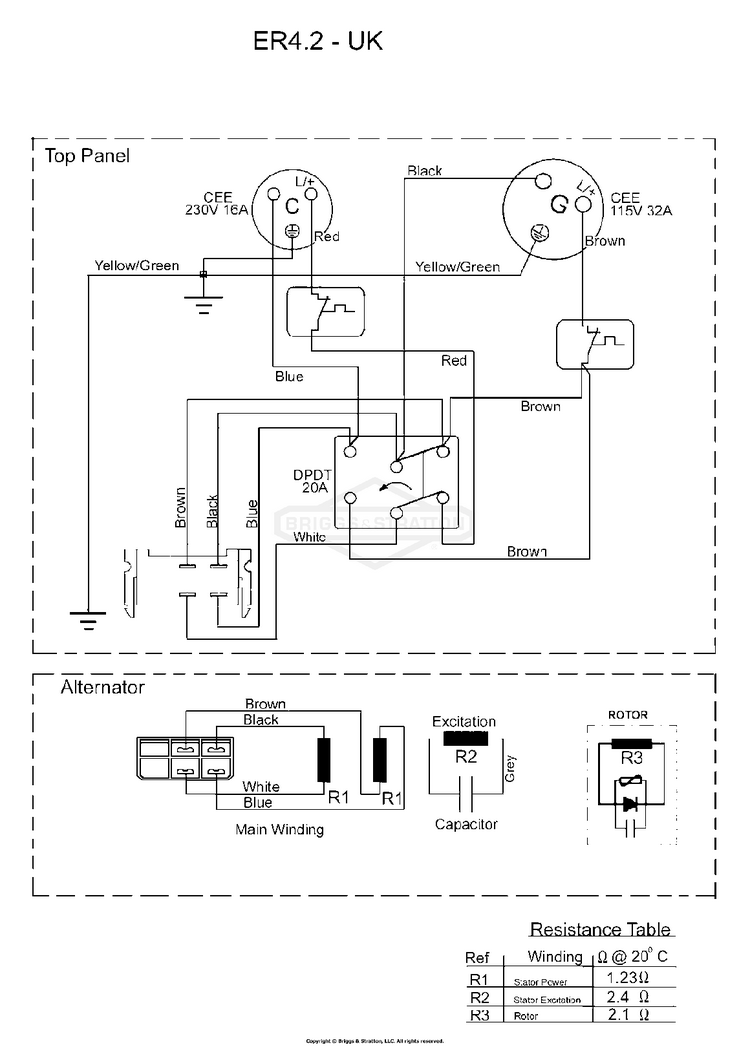

Panel Wiring Diagram

...

No Parts Available for this Schematic

...
...
...
...
...
