030271-0 Briggs and Stratton Portable Generator ProClassic 3500 UK

Model: 030271-0

Save
 Part Not Listed?Part Not Listed?
product name

Alternator & Outlet Panel

...
...
1
FLANGE PLATE BS-102051GS
...
2
WASHER SPRING M8 & 5/16" BS-~NSP
...
3
SCREW SET 5/16" UNF X 3/4" BS-~NSP
...
4
FAN BS-707048
...
5
ROTOR R100 BS-102704GS
...
6
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
7
BEARING ROTOR R100 BS-102705GS
...
8
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
9
ROTOR BOLT 200MM M8-1.25*15MM+5/16UNF*9/16" BS-102039GS
...
10
STATOR ASSY SINCRO R100 BS-103292GS
...
11
END COVER AIR GRILL R100 BS-102707GS
...
12
CAPACITOR BS-707029
...
13
CAPACITOR CLIP BS-~NSP
...
14
SOCKET OUTLET 16A 230V BS-102418GS
...
15
SOCKET OUTLET 16A 115VOLT BS-102419GS
...
16
OUTLET PANEL BLANK R100 UK BS-102803GS
...
17
SWITCH VOLTAGE CHANGE-OVER BS-102404GS
...
18
CIRCUIT BREAKER 20A BS-102261GS
...
19
CIRCUIT BREAKER 12A BS-102049GS
...
20
OUTLET PANEL COMPLETE R100 UKDV BS-102801GS
...
21
ALTERNATOR SINCRO R100 UK BS-103204GS

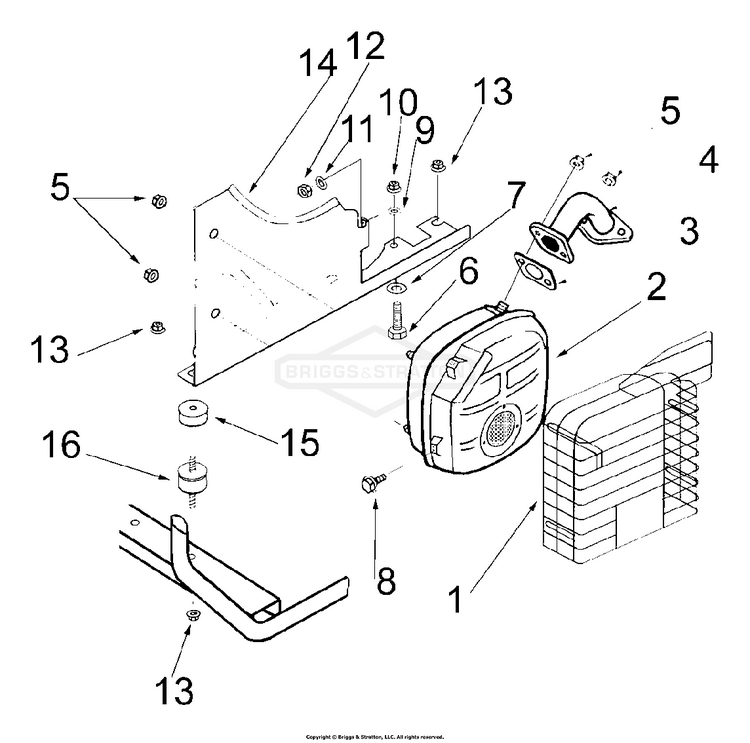

Exhaust And Fittings

...
...
1
MUFFLER GUARD BS-103302GS
...
2
MUFFLER BS-103303GS
...
3
GASKET BS-710250
...
4
MANIFOLD BS-707075
...
5
NUT FLANGE M8 BS-710090
...
6
SCREW BS-690352
...
7
WASHER SHAKEPROOF M8 INT BS-~NSP
...
8
SCREW TAPTITE M6*12 BS-710023
...
9
WASHER, 5/16" LOCK BS-5025170SM
...
10
LOCKNUT BS-691105
...
11
LOCKWASHER, HELICAL SPRING BS-103311GS
...
12
NUT, HEX BS-103310GS
...
13
NUT FLANGE M8-1.25 BS-~NSP
...
14
BRACKET, MUFFLER, MOUNTING BS-103296GS
...
15
SPACER 32MM*9MM*15MM BS-103234GS
...
16
VIBRATION MOUNT 32MM DIAMETER BS-102111GS

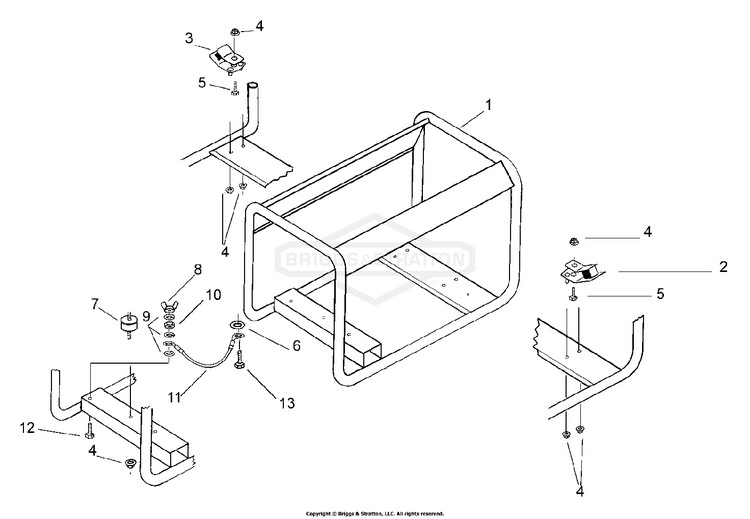

Frame And Fittings

...
...
1
CRADLE PROCLASSIC 2600 YELLOW BS-103213GS
...
2
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
3
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
4
NUT FLANGE M8-1.25 BS-~NSP
...
5
SCREW SET HEXHD M8-1.25*35MM BS-~NSP
...
6
WASHER SHAKEPROOF M8 INT BS-~NSP
...
7
VIBRATION MOUNT 32MM DIAMETER BS-102111GS
...
8
NUT WING M6-1.0 BS-102036GS
...
9
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
10
NUT FULL M6-1.0 BS-~NSP
...
11
LEAD EARTH ASSY 145MM BS-102050GS
...
12
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
13
SCREW SET M8-1.25X12 PLATED BS-~NSP
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
DECAL, PROCLASSIC 3500 (Not Illustrated) BS-103178GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
OWNER’S MANUAL EUROPE 25L (Not Illustrated) BS-MS5796

Panel Wiring Diagram

...

No Parts Available for this Schematic

...
...
...
...
...
