030266-0 Briggs and Stratton Portable Generator HandyPro 5000L Continental

Model: 030266-0

Save
 Part Not Listed?Part Not Listed?
product name

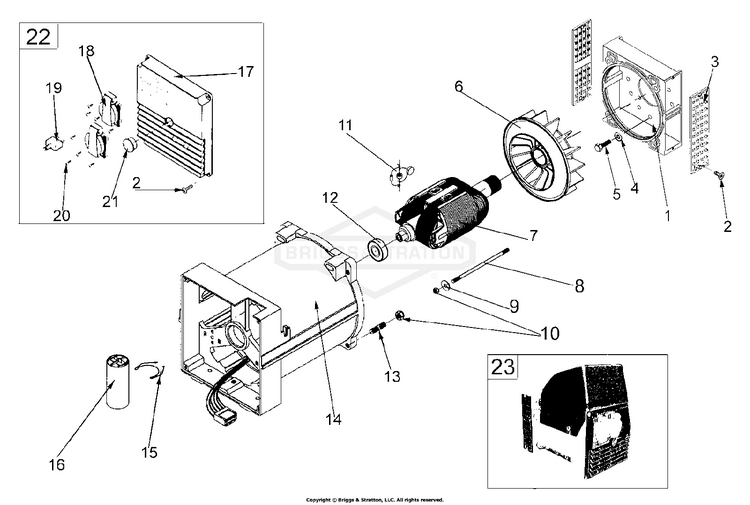

Alternator & Outlet Panel

...
...
1
FLANGE PLATE BS-102271GS
...
2
SCREW MC PPHD M5*10MM BS-~NSP
...
3
SIDE GRILL (PLASTIC) BS-102139GS
...
4
WASHER LOCK M10/ 3/8 OXY BLACK BS-~NSP
...
5
SCREW CAP 3/8 UNC * 1 1/4" BS-102279GS
...
6
ROTOR FAN SINCRO BS-102073GS
...
7
ROTOR ASSEMBLY ER 4.2 BS-102535GS
...
8
ROTOR BOLT, M8-1.25*265MM BS-102160GS
...
9
WASHER FLAT M8 & 5/16" BS-~NSP
...
10
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
11
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
12
ROTOR BEARING BS-102038GS
...
13
STUD M8*30MM BS-102131GS
...
14
STATOR ASSEMBLY ER 4.2 BS-102534GS
...
15
CAPACITOR CLIP EP SERIES BS-~NSP
...
16
CAPACITOR 35UF BS-102251GS
...
17
OUTLET PANEL BLANK BS-102075GS
...
18
SOCKET OUTLET SCHUKO BS-102030GS
...
19
CIRCUIT BREAKER 18 AMP BS-102220GS
...
20
SCREW PLASTITE PPHD NO6 * 3/8" BS-~NSP
...
21
END CAP PLASTIC PLUG BS-102085GS
...
22
OUTLET PANEL ASSY BS-102222GS
...
23
ALTERNATOR SINCRO ER 4.2 G/S BS-102540GS

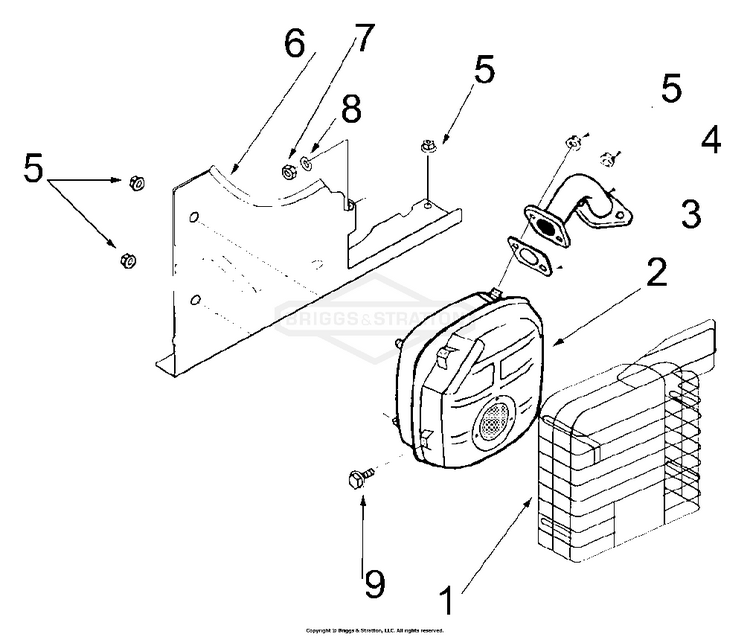

Exhaust and Fittings

...
...
1
GUARD MUFFLER BS-103302GS
...
2
MUFFLER BS-103303GS
...
3
GASKET EXHAUST BS-710250
...
4
MANIFOLD, EXHAUST BS-103308GS
...
5
NUT FLANGE M8 BS-710090
...
6
BRACKET, MUFFLER BS-103297GS
...
7
LOCKNUT BS-691105
...
8
WASHER, 5/16" LOCK BS-5025170SM
...
9
SCREW TAPTITE M6*12 BS-710023

Frame and Fittings

...
...
1
CRADLE HANDYPRO 5000L (RED) BS-103212GS
...
2
SPACER 24MM BS-102136GS
...
3
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
4
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
5
NUT FLANGE M8-1.25 BS-~NSP
...
6
SCREW SET HXHD M8-1.25X60MM BS-103007GS
...
7
SCREW SET M8-1.25X12 PLATED BS-~NSP
...
8
LEAD EARTH ASSY 145MM BS-102050GS
...
9
NUT FULL M6-1.0 BS-~NSP
...
10
NUT WING M6-1.0 BS-102036GS
...
11
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
12
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
13
WASHER SHAKEPROOF M8 INT BS-~NSP
...
14
VIBRATION MOUNT 32MM DIAMETER BS-102034GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL, HANDYPRO 5000L (Not Illustrated) BS-103176
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
OWNERS MANUAL EURO-25L PORTABLE GENERATOR (Not Illustrated) BS-MS5796

Fuel Tank

...
...
1
FUEL TANK, BLACK BS-103294GS
...
2
FUEL CAP BS-102090GS
...
3
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
4
WASHER REPAIR 6X20 OXY BLACK BS-102042GS
...
5
NUT LOCKING FLANGE M6-1.0MM BS-~NSP
...
6
VALVE FUEL BS-102774GS
...
7
CLAMP HOSE 14MM OD BS-102549GS
...
8
HOSE FUEL 3/16" ID SAE J30R7 BS-102109GS

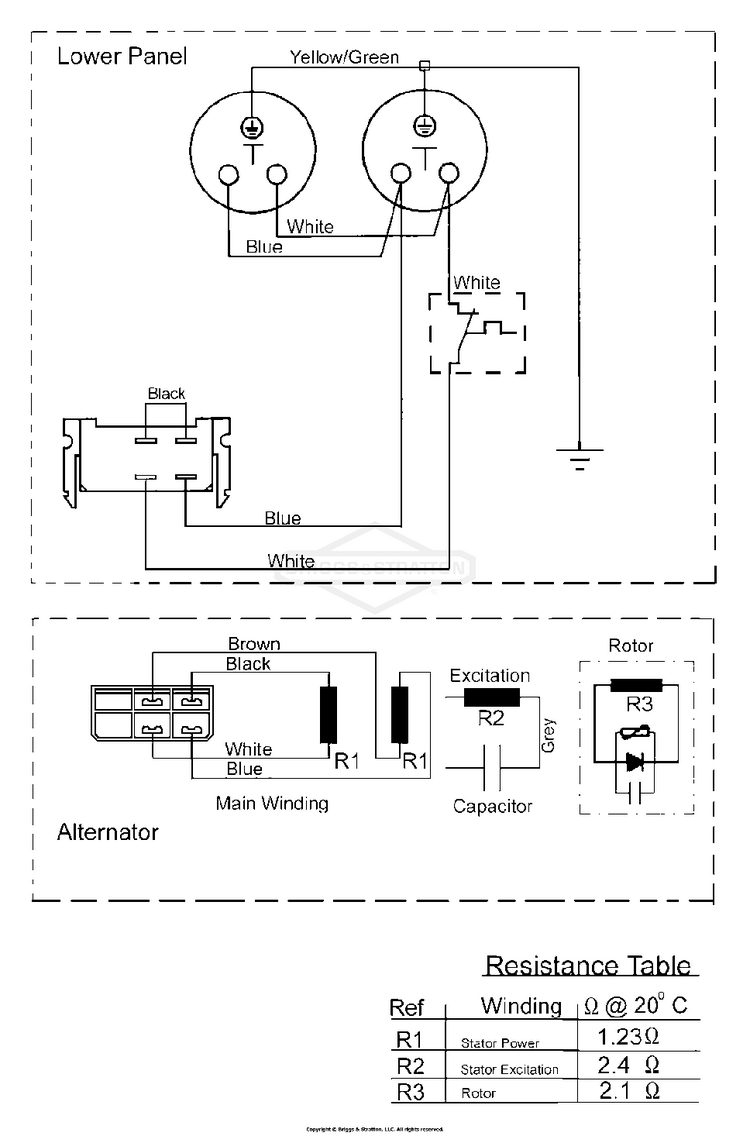

Panel Wiring Diagram

...

No Parts Available for this Schematic

...
...
...
...
...
