030264-1 Briggs and Stratton Portable Generator HandyPro 3500L Continental

Model: 030264-1

Save
 Part Not Listed?Part Not Listed?
product name

Alternator & Outlet Panel

...
...
1
FLANGE PLATE BS-102051GS
...
2
WASHER SPRING M8 & 5/16" BS-~NSP
...
3
SCREW SET 5/16"UNF X 3/4" BS-~NSP
...
4
FAN BS-707048
...
5
ROTOR R100 BS-102704GS
...
6
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
7
BEARING R100 6005-C3 BS-102705GS
...
8
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
9
ROTOR BOLT 200MM M8+5/16UNF BS-102039GS
...
10
STATOR ASSY SINCRO R100 SCHUKO BS-103292GS
...
11
FRONT GRILL R100 BS-102707GS
...
12
CAPACITOR BS-707029
...
13
CAPACITOR CLIP BS-~NSP
...
14
SOCKET OUTLET SCHUKO BS-102030GS
...
15
OUTLET PANEL BLANK R100 F/B G/S SWISS BS-102861GS
...
16
CIRCUIT BREAKER 15A BS-102133GS
...
17
OUTLET PANEL R100 G/S (BB60-B) BS-102858GS
...
18
ALTERNATOR SINCRO R100 3.0 CONTINENTAL BS-103205GS

Exhaust And Fittings

...
...
1
Guard Muffler BS-103302GS
...
2
Muffler BS-103303GS
...
3
Gasket Exhaust BS-710250
...
4
MANIFOLD BS-707075
...
5
Nut Flange M8 BS-710090
...
6
SCREW BS-690352
...
7
Washer Shakeproof M8 int BS-~NSP
...
8
Screw Taptite M6*12 BS-710023
...
9
WASHER, 5/16" LOCK BS-5025170SM
...
10
LOCKNUT BS-691105
...
11
Lockwasher, Helical Spring BS-103311GS
...
12
Nut, Hex BS-103310GS
...
13
Nut Flange M8-1.25 BS-~NSP
...
14
Bracket, Muffler BS-103296GS

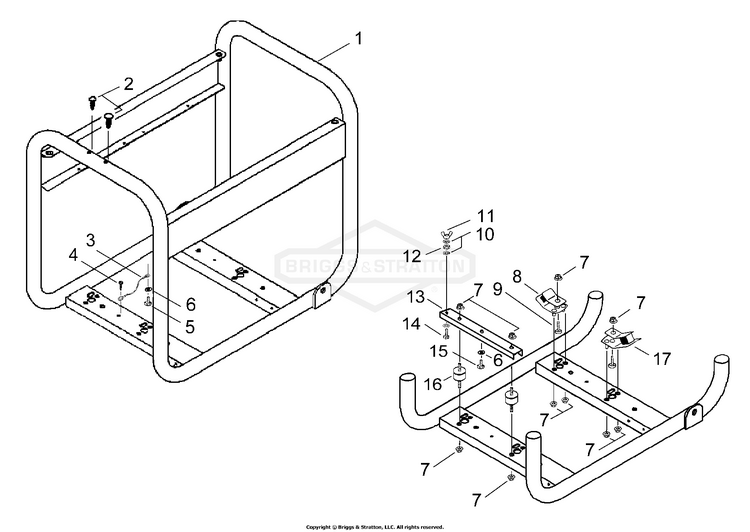

Frame And Fittings

...
...
1
Cradle HandyPro 3500L BS-103375GS
...
2
Clip, Tree BS-B1797GS
...
3
Lead Earth Assy 145mm BS-102050GS
...
4
SCREW BS-313085GS
...
5
Screw, set M8-1.25x12mm plated BS-~NSP
...
6
Washer shakeproof M8 internal BS-~NSP
...
7
Nut, Flange M8-1.25 BS-~NSP
...
8
Vibration mount, 45 degree, soft BS-102033GS
...
9
Screw, M8-1.25x35mm BS-~NSP
...
10
Washer shakeproof M6 internal BS-~NSP
...
11
Nut Wing M6-1.0 BS-102036GS
...
12
Nut Full M6-1.0 BS-~NSP
...
13
Bracket, alternator support BS-103376GS
...
14
Screw, set M6-1.0x25mm plated BS-~NSP
...
15
Screw, set M8-1.25x16mm plated BS-~NSP
...
16
Vibration mount, 32mm diameter BS-102111GS
...
17
Vibration mount, 45 degree, hard BS-102031GS

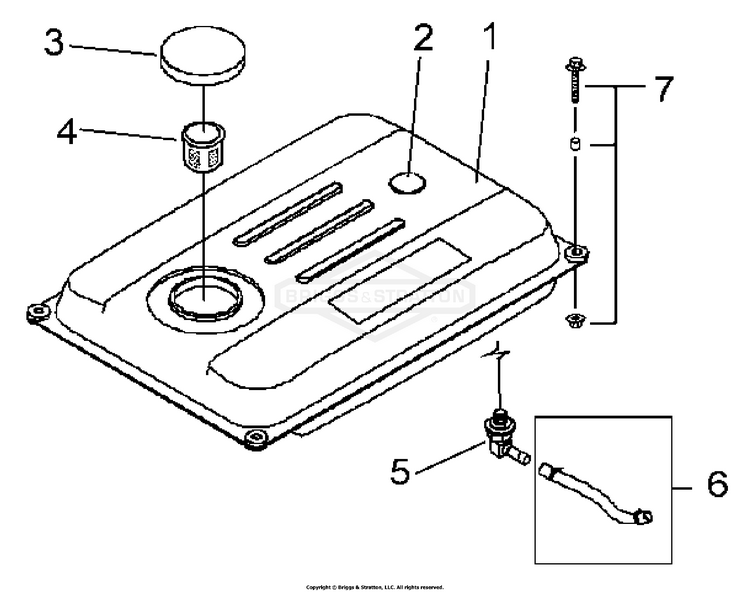

Fuel Tank And Fittings

...
...
1
Fuel Tank, Black BS-103294GS
...
2
Gauge, Fuel BS-189136GS
...
3
Cap, Fuel, Vented BS-189135GS
...
4
Strainer, Tank Fuel BS-197499GS
...
5
VALVE, Fuel BS-310574GS
...
6
Kit, Fuel Hose w/ Clamps BS-197619GS
...
7
KIT, Fuel Tank Hardware BS-197618GS

Panel Wiring Diagram

...

No Parts Available for this Schematic

...
...
...
...
...
