030258-0 Briggs and Stratton Portable Generator HandyGen 2500 Continental

Model: 030258-0

Save
 Part Not Listed?Part Not Listed?
product name

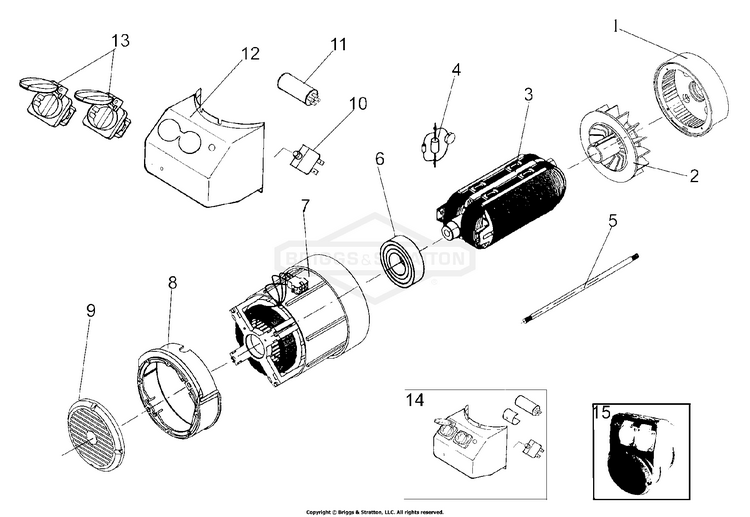

Alternator & Outlet Panel

...
...
1
FLANGE ALTERNATOR BS-102059GS
...
2
FAN ROTOR SINCRO R80 BS-102046GS
...
3
ROTOR SINCRO R80 BS-102056GS
...
4
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
5
ROTOR BOLT SINCRO R80 BS-102057GS
...
6
BEARING ROTOR BS-102063GS
...
7
STATOR SINCRO R80 BS-102058GS
...
8
COWLING ALTERNATOR R80 BS-102060GS
...
9
END COVER ALTERNATOR R80 BS-102061GS
...
10
CIRCUIT BREAKER 10A BS-102132GS
...
11
CAPACITOR 16UF BS-102053GS
...
12
OUTLET BOX BLANK (NO FITTINGS) R80 BS-102469GS
...
13
SOCKET OUTLET BS-102030GS
...
14
OUTLET BOX SINCRO VERTICAL G/S BS-102470GS
...
15
ALTERNATOR SINCRO R80 VERTICAL BS-102484GS

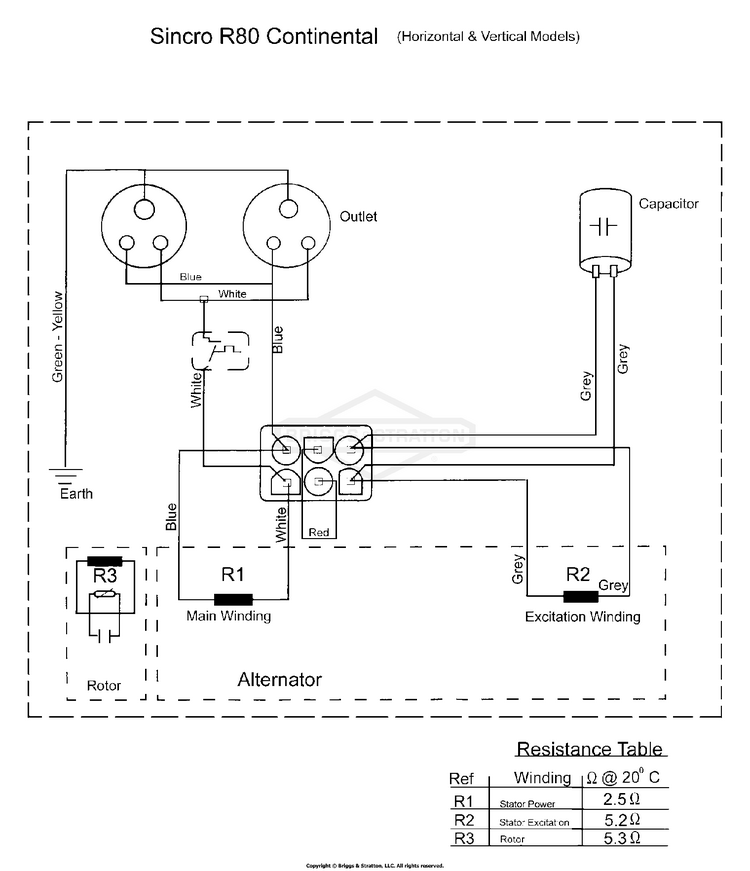

Alternator Wiring Diagram

...

No Parts Available for this Schematic

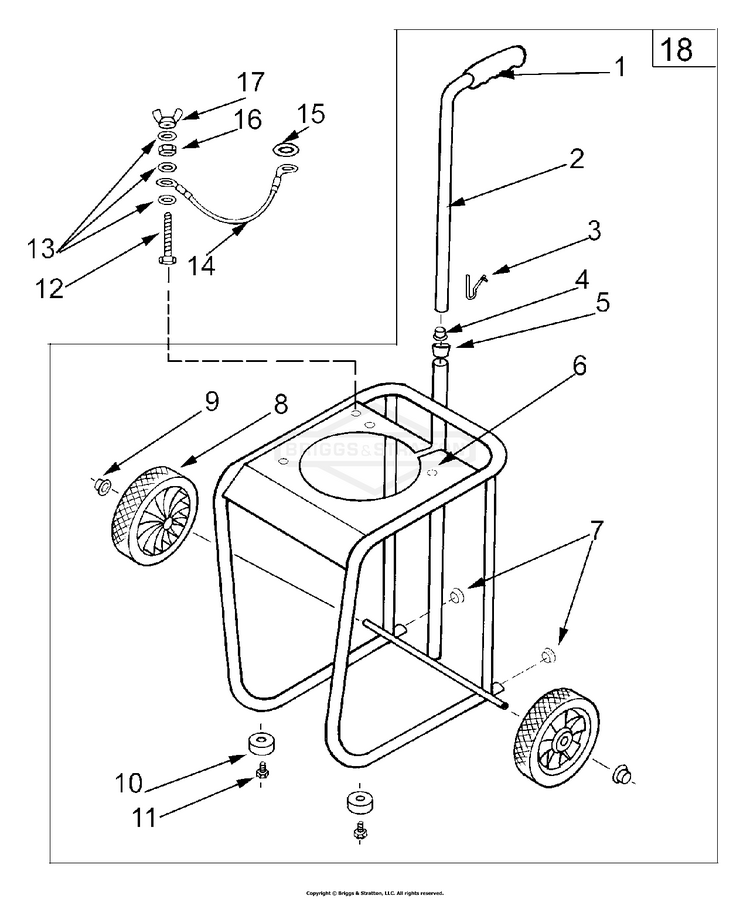

Frame And Fittings

...
...
1
GRIP BLACK (HANDLE GRIP) BS-~NSP
...
2
HANDLE (VT FRAME) BS-~NSP
...
3
SPRING CLIP 7/8" TUBE BS-~NSP
...
4
PLUG BLACK 7/8" / 18SWG TUBE BS-~NSP
...
5
ANTI RATTLE RING BS-~NSP
...
6
CRADLE VT2800 SERIES BS-~NSP
...
7
PLUG BLACK 7/8" / 18SWG TUBE BS-~NSP
...
8
WHEEL 7" BS-~NSP
...
9
PUSHNUT BS-~NSP
...
10
VIBRATION MOUNT EG SERIES BS-~NSP
...
11
SCREW MACHINE HHD M8-1.2516MM BS-~NSP
...
14
LEAD EARTH ASSY 145MM BS-102050GS
...
18
HANDYGEN2500 CRADLE/HANDLE KIT BS-103066GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL HANDYGEN 2500 (Not Illustrated) BS-103172GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
OWNERS MANUAL EURO-25L PORTABLE GENERATOR (Not Illustrated) BS-MS5796
...
...
...
...
...
