030256-0 Briggs and Stratton Portable Generator HandyGen 1400 Continental

Model: 030256-0

Save
 Part Not Listed?Part Not Listed?
product name

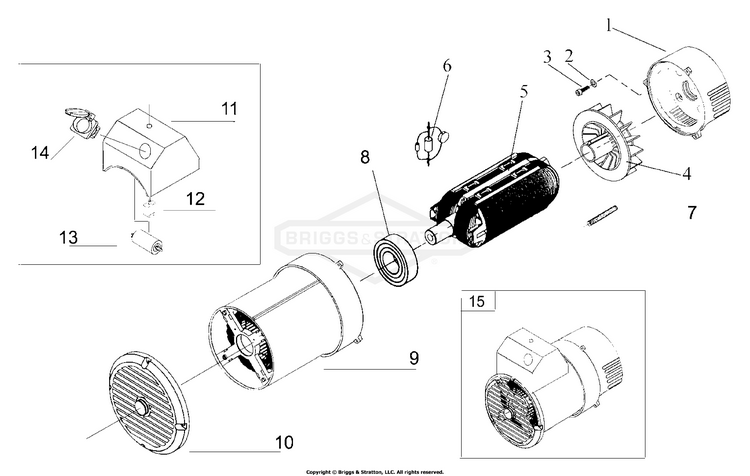

Alternator Outlet Panel

...
...
1
FLANGE, ALTERNATOR TEKEL M80 BS-103333GS
...
2
WASHER SPRING M8 & 5/16" BS-~NSP
...
3
SCREW SET 5/16"UNF X 3/4" BS-~NSP
...
4
FAN, ROTOR, TEKEL M80 BS-103334GS
...
5
ROTOR, TEKEL M80 BS-103335GS
...
6
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
7
STUD, ROTOR TEKEL M80 3/8 * 56MM BS-103342GS
...
8
BEARING, ROTOR, TEKEL M80 BS-103337GS
...
9
STATOR, TEKEL M80 BS-103336GS
...
10
COVER, GRILL, ALTERNATOR, TEKEL M80 BS-103343GS
...
11
OUTLET BOX, BLANK, TEKEL M80 BS-103344GS
...
12
CIRCUIT BREAKER 5 AMP BS-103341GS
...
13
CAPACITOR 16UF, TEKEL M80 (STUD ATTACHED) BS-103345GS
...
14
OUTLET SCHUKO, G/S TEKEL M80 BS-103338GS
...
15
ALTERNATOR TEKEL AM80 1.6KVA CONTI BS-103192GS

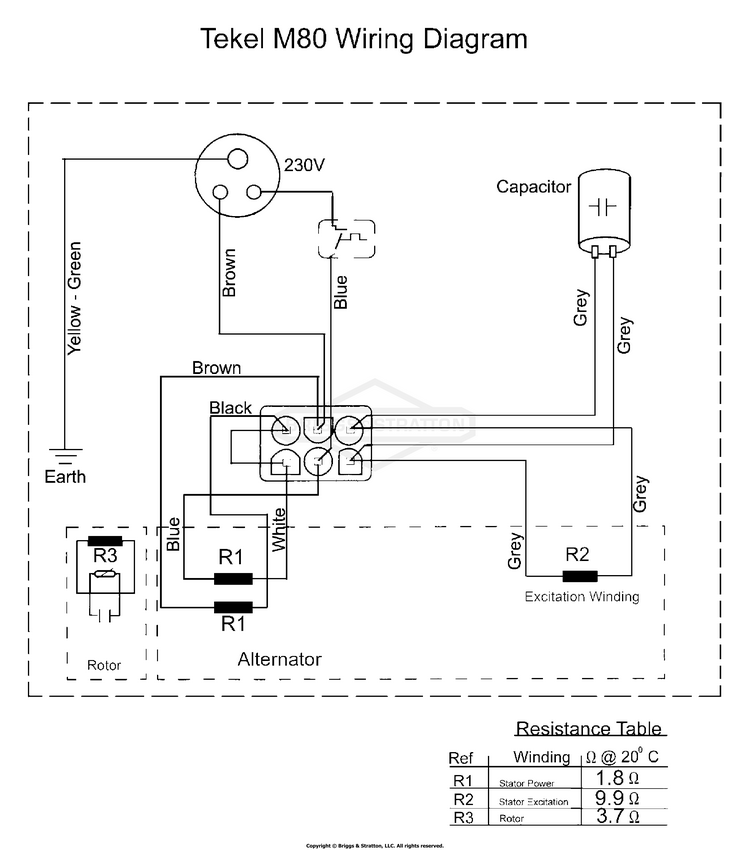

Alternator Wiring Diagram

...

No Parts Available for this Schematic

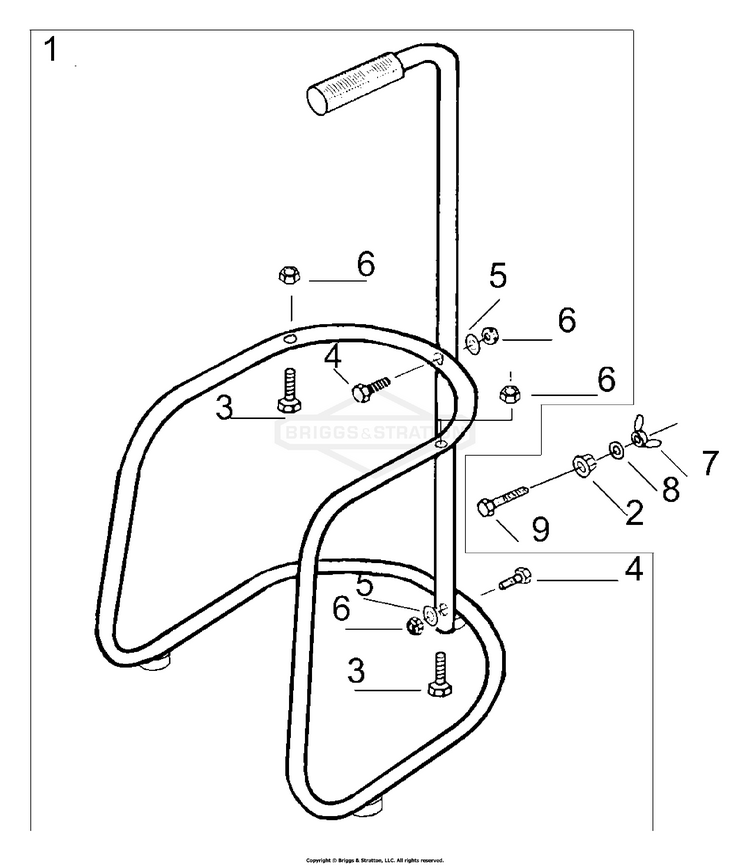

Frame and Fittings

...
...
1
CRADLE KIT HANDYGEN 1400 BS-103161GS
...
2
NUT FLANGE M8-1.25 BS-~NSP
...
3
SCREW SET HEX HEAD M8-1.25*55MM BS-102460GS
...
4
SCREW SET HHD M8-1.25 X 35MM BS-~NSP
...
5
WASHER FLAT M8 BS-~NSP
...
6
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
7
NUT, WING M8-1.25 BS-52833GS
...
8
WASHER SHAKEPROOF M8 INT BS-~NSP
...
9
SCREW SET HHD M8-1.25 X 30MM BS-~NSP
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL, UNIT, HANDYGEN 1400 (Not Illustrated) BS-103171GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
OWNERS MANUAL EURO-25L PORTABLE GENERATOR (Not Illustrated) BS-MS5796
...
...
...
...
...
