030254-0 Briggs and Stratton Portable Generator 7,200 Watt CSA

Model: 030254-0

Save
 Part Not Listed?Part Not Listed?
product name

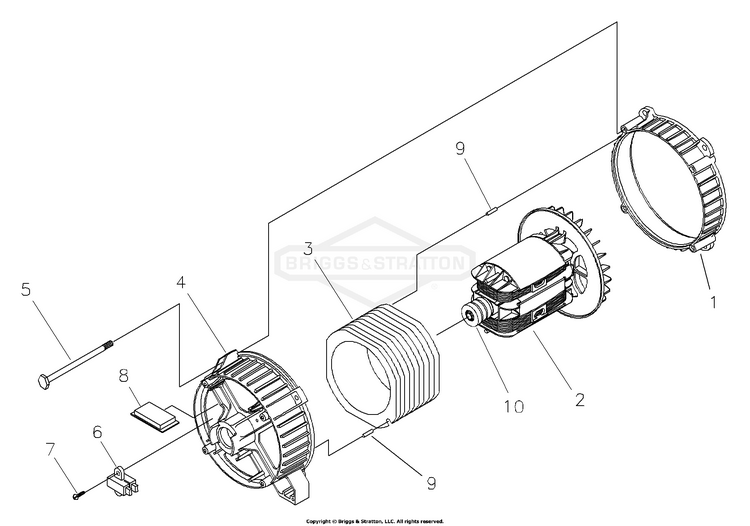

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ASSY, Rotor (Includes Item 10) BS-194773GS
...
3
STATOR BS-198498AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 175 SEMS BS-86308KGS
...
6
ASSY, Holder, Brush BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
BOARD, Circuit, System Control BS-205858GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
BEARING BS-65791GS

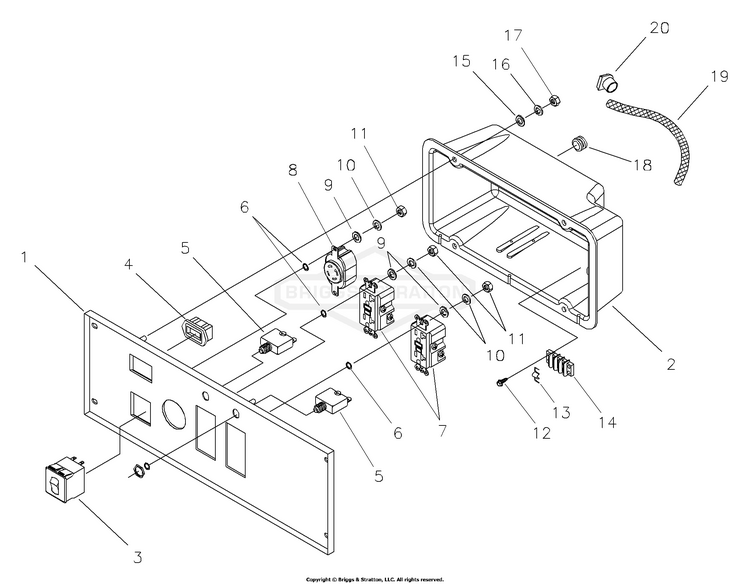

Control Panel

...
...
1
PANEL, Control BS-198237GS
...
2
BOX, Control Panel BS-198239GS
...
3
BREAKER, Circuit,30A BS-192785GS
...
4
METER-HOUR BS-202602GS
...
5
BREAKER, Circuit,15A BS-75207DGS
...
7
OUTLET, 120V, 15A Duplex BS-94373GS
...
8
OUTLET, 120/240V, 30A BS-43437GS
...
12
SCREW,4 x 18,Tapping BS-198495GS
...
13
JUMPER,Terminal Block BS-193095GS
...
14
STRIP,Terminal, 3 Pole BS-193427GS
...
18
GROMMET BS-38057GS
...
19
CONDUIT, Flex Tubing BS-77043BGS
...
20
BOOT,Wire Outlet, Rubber BS-188632GS

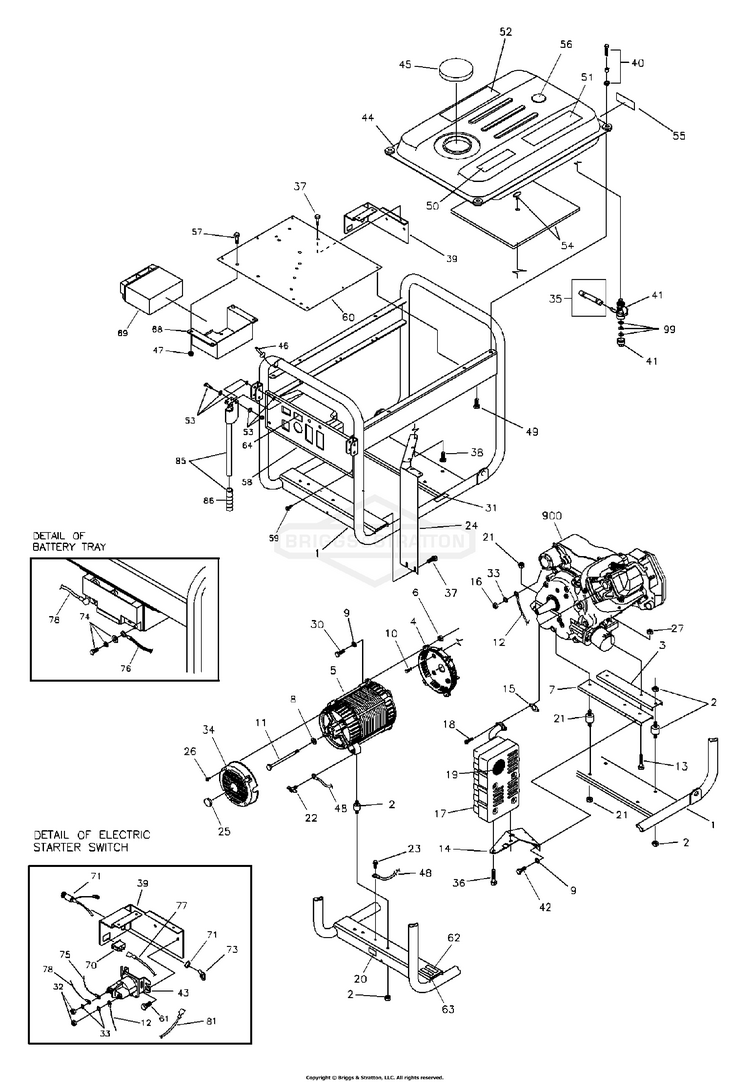

Main Unit

...
...
1
KIT, Cradle BS-B194898GS
...
2
KIT,Vibration Mount BS-194155GS
...
3
BRACKET, Support Engine BS-B92531GS
...
4
ADAPTER, Engine BS-190220GS
...
5
ASSY,Alternator (see "Alternator") BS-~NSP
...
7
BRACKET, Support Eng/Muffler BS-B92731GS
...
8
WASHER BS-96796GS
...
10
SBHC, 3/8-16 x 1" BS-190274BGS
...
11
HHCS, 5/16 - 24 x 10.62 BS-47481GS
...
12
ASSY,Wire, #16, Red BS-189302LGS
...
14
BRACKET,Muffler BS-92532GS
...
15
GASKET, Exhaust BS-90239GS
...
17
MUFFLER BS-A7433GS
...
19
SCREEN,Spark Arrest BS-83083GS
...
20
DECAL, Ground BS-B4986GS
...
21
KIT,Vibration Mount BS-198222GS
...
22
SCREW,Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
24
ASSY,Heat Shield BS-194390GS
...
25
CAP BS-191190GS
...
26
TAPTITE, M5 - 0.8 x 10 BS-74908GS
...
27
NUT,M8 Flange Serrated BS-67989GS
...
31
DECAL, Caution Hot Muffler BS-200310GS
...
34
COVER, RBC, Plastic w/ Cap BS-195422GS
...
35
LINE, Fuel BS-791745
...
37
CRIMPTITE,10-24 x 1/2 BS-56893GS
...
38
SCREW, Self Driller, 12-14 x 7/8 BS-B2153GS
...
39
BRACKET,Starter BS-B196810GS
...
40
KIT, Fuel Tank Hardware (Includes Qty of 4) BS-198221GS
...
41
VALVE-FUEL BS-310573GS
...
43
SOLENOID, Starter BS-691656
...
44
ASSY,Tank Fuel (Includes Items 41, 50, 51, 52 & 55) BS-200590GS
...
45
CAP,Tank Fuel BS-189135GS
...
46
PIN, Handle Release BS-B4135GS
...
47
NUT,M6 Flange Lock BS-77395GS
...
48
WIRE, Ground BS-195373GS
...
49
SCREW, 12-24 x 1/2,Thread Forming BS-192376GS
...
50
DECAL, Instruction Fuel Level BS-188333GS
...
51
DECAL,Warning BS-194984GS
...
52
DECAL, Start Instructions BS-94480GS
...
53
KIT,Folddown Handle Hardware BS-194034GS
...
54
KIT, Insulation w/ Clip BS-194448GS
...
55
DECAL,Fuel Shutoff BS-197797GS
...
56
GAUGE, Fuel BS-192724GS
...
58
ASSY, Control Panel (see "Control Panel") BS-198238GS
...
59
PPHS, 1/4 - 20 x 0.5 BS-198611GS
...
60
HEATSHEILD BS-195537GS
...
61
SCREW, HEX, 1/4-20X.5 BS-704130
...
62
DECAL, Neutral, Grnd, Neutral BS-195940GS
...
63
DECAL, Grnd, Neutral BS-195459GS
...
64
DECAL, Neutral Bonded,Frnch BS-200311GS
...
68
TRAY, Battery BS-195680GS
...
69
BATTERY BS-193463GS
...
70
SWITCH, Rocker On/Off BS-87799GS
...
71
JACK-COAXIAL BS-312004GS
...
73
LUG, 1/4, #22/18 BS-192351GS
...
74
KIT, Hardware Battery BS-193347GS
...
75
ASSY,Wire, #13, Red BS-196627AGS
...
76
ASSY,Wire, #55 Blk BS-185939KGS
...
77
ASSY,Wire, #13B, Red BS-196627BGS
...
78
ASSY,Wire, #13 Red BS-189302MGS
...
81
ASSY,Wire, #0, Blk BS-196627EGS
...
85
ASSY, Fold Down Handle (Includes Item 86) BS-B193200GS
...
86
GRIP, Handle BS-198669GS
...
99
VALVE, Fuel BS-310574GS
...
MANUAL, Operator's Not Illustrated BS-200309GS
...
BOTTLE, Oil Not Illustrated BS-BB3061GS
...
CHARGER, Battery Not Illustrated BS-84002790
...
FUSE (5 Pack) Not Illustrated BS-195236GS
...
CAP, Fuse (4 Pack) Not Illustrated BS-195237GS
...
SET, Cord Not Illustrated BS-191895DGS
...
DECAL, Family, CA EVP Not Illustrated BS-199384GS
...
Front Draw Bar w/Spindles-RH Side Not Illustrated BS-100126
...
KIT, Decal Srv Not Illustrated BS-198220GS

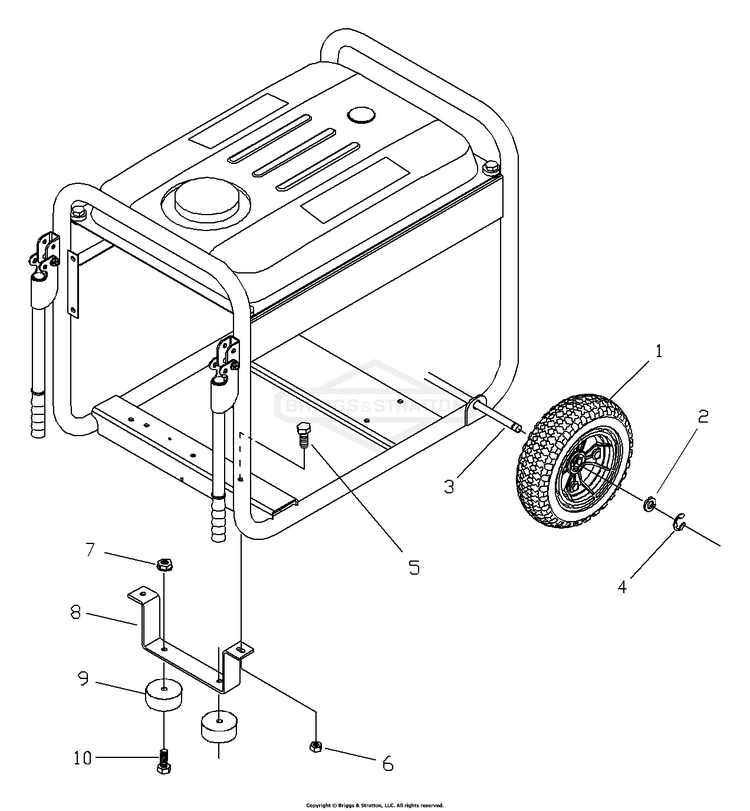

Wheel Kit

...
...
1
WHEEL BS-209322GS
...
3
AXLE, 5/8" BS-191267RGS
...
4
E-RING BS-703977
...
6
NUT, M8, Flange Serrated BS-67989GS
...
7
NUT, 1/4 - 20 Flange, Nylok BS-194005GS
...
8
SUPPORT,Wheel Kit BS-B186927GS
...
9
MOUNT,Vibration BS-191413GS

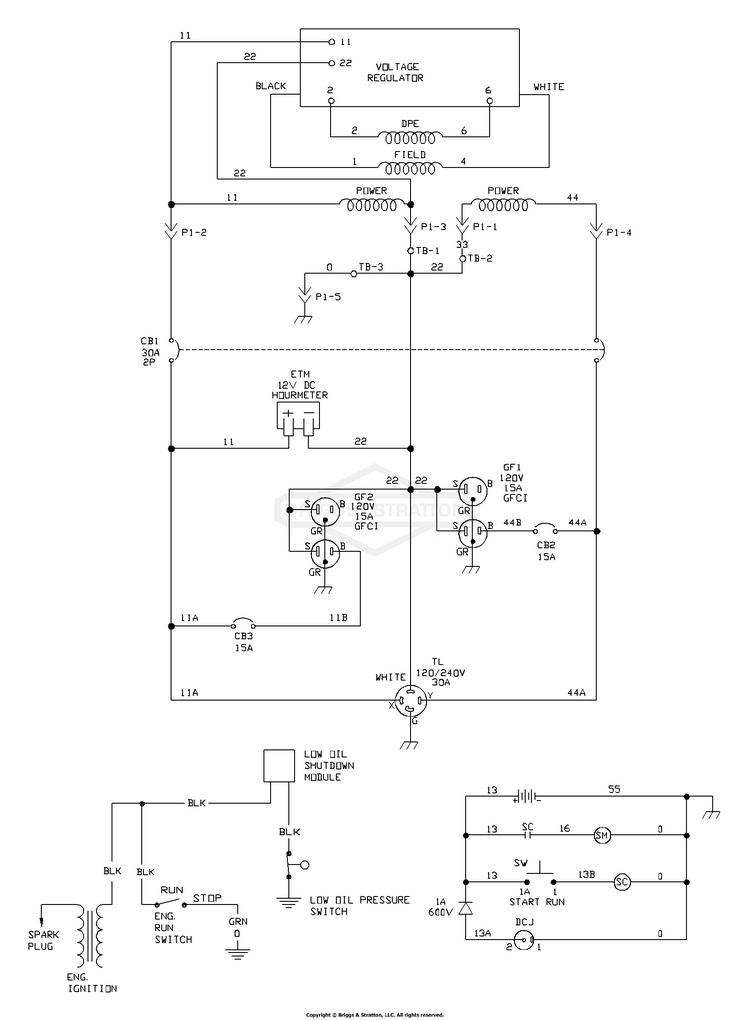

Wiring Diagram

...

No Parts Available for this Schematic

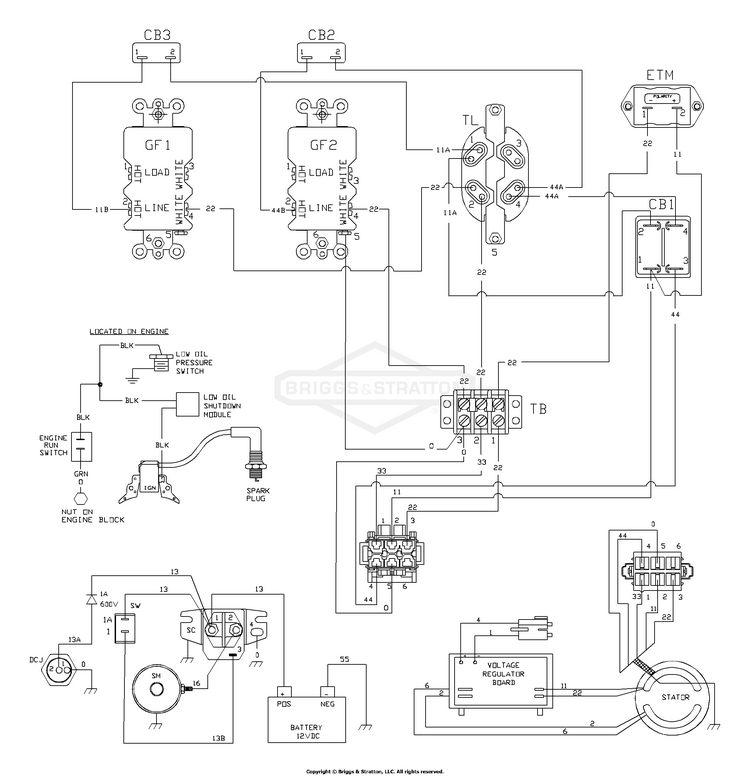

Wiring Schematic

...

No Parts Available for this Schematic

...
...
...
...
...
