030242-0 Briggs and Stratton Generator 6,200 Watt

Model: 030242-0

Save
 Part Not Listed?Part Not Listed?
product name

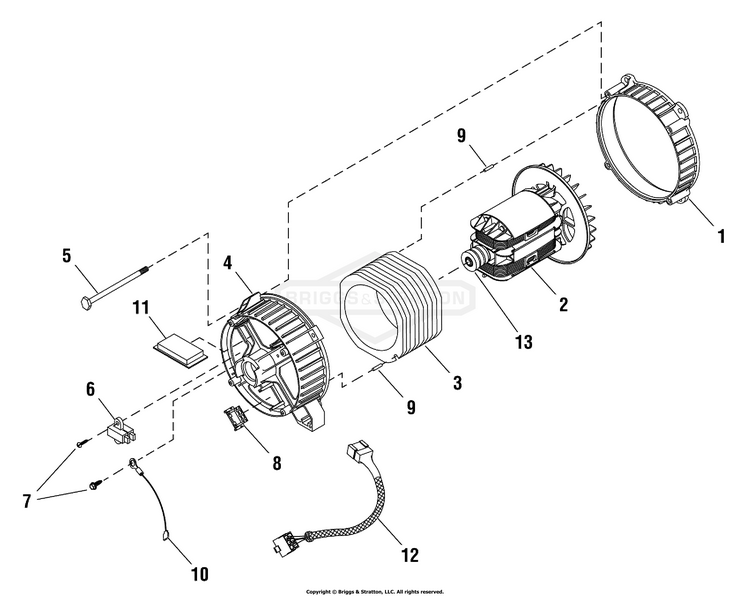

Alternator (194087)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-191876GS
...
3
STATOR BS-194006AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
SCREW BS-86308CGS
...
6
BRUSH ASSEMBLY BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
CONNECTOR BS-22694GS
...
9
PIN BS-81917GS
...
10
WIRE BS-193428AGS
...
11
REGULATOR, Voltage BS-205858GS
...
12
HARNESS, Wiring BS-194274GS
...
13
BEARING BS-65791GS

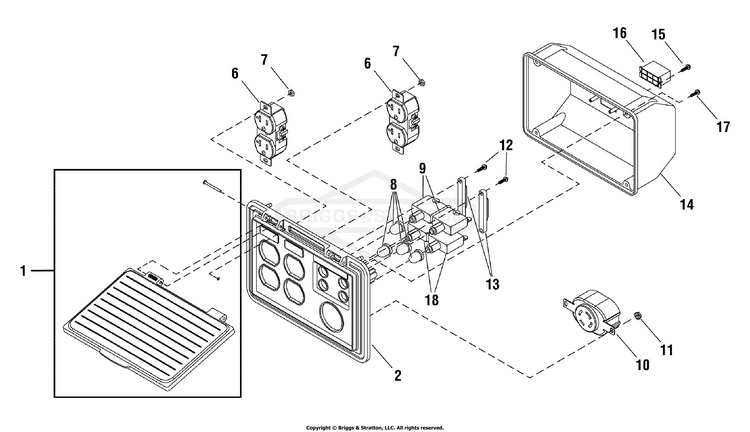

Control Panel (191780)

...
...
1
COVER, Panel BS-195112GS
...
2
PANEL, Control BS-191450GS
...
6
OUTLET, 120V, 20Amp BS-68759GS
...
7
NUT, Palnut, 5/32 BS-189165GS
...
8
BOOT, Circuit Breaker BS-84198GS
...
9
BREAKER-CIRCUIT 30A BS-706178
...
10
OUTLET, 120/240V TL30A BS-43437GS
...
11
NUT, Palnut, 3/16 BS-189164GS
...
13
BAR, Retaining BS-93857GS
...
14
BOX, Control Panel BS-188890GS
...
15
SCREW BS-82308GS
...
16
CONNECTOR BS-22694GS
...
17
SCREW, Tapping, 3.5 x 14 BS-192241GS
...
18
BREAKER-CIRCUIT 25A BS-706175

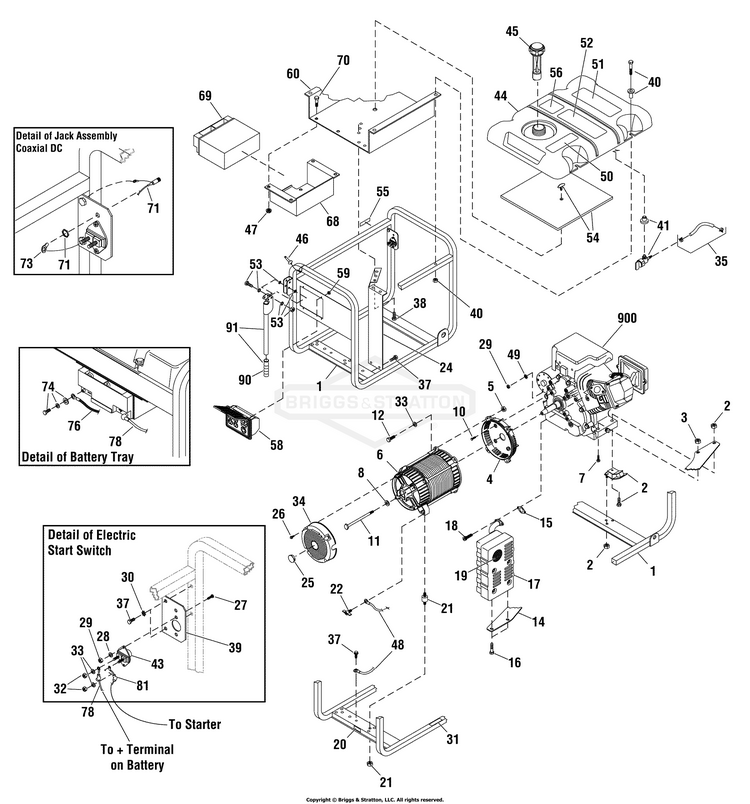

Main Unit (196819)

...
...
1
CRADLE Includes Items 20, 31 & 55 BS-197464BNGS
...
2
MOUNT, Vibration BS-194150GS
...
3
NUT BS-67989GS
...
4
ADAPTER, Engine BS-190220GS
...
8
WASHER BS-96796GS
...
10
CAPSCREW, 3/8-16 x 7/8 BS-190274DGS
...
11
CAPSCREW, Hex Head, 5/16-24 x 7.44 BS-187365FGS
...
14
BRACKET BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
18
SCREW BS-204885GS
...
19
ARRESTOR, Spark BS-83083GS
...
20
DECAL BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW BS-86494GS
...
24
SHIELD, Heat BS-194390GS
...
25
CAP BS-191190GS
...
26
TAPTITE BS-74908GS
...
31
DECAL BS-196830GS
...
34
COVER, Rear Bearing BS-195422GS
...
35
LINE, Fuel (Cut To Fit) BS-791745
...
37
SCREW, Self Drill, 12-14 x 7/8 BS-B2153GS
...
38
CRIMPTITE BS-56893GS
...
39
BRACKET BS-188987GS
...
40
KIT, Hardware, Fuel Tank Includes Qty 4 BS-195477GS
...
41
KIT, Fuel Valve BS-192980GS
...
43
SWITCH, Starter BS-77282GS
...
44
TANK, Fuel (Includes Items 41, 50, 51, 52 & 56) BS-194217GS
...
45
CAP, Fuel Gauge BS-B4363GS
...
46
PIN BS-B4135GS
...
47
* NUT, Flange Lock, M6 BS-77395GS
...
48
WIRE BS-195373GS
...
50
DECAL BS-188333GS
...
51
DECAL BS-189235GS
...
52
DECAL BS-194799GS
...
53
KIT, Hardware, Handle BS-194034GS
...
54
INSULATION BS-194448GS
...
55
DECAL BS-197798GS
...
56
DECAL BS-202997GS
...
58
PANEL, Control BS-191757GS
...
59
NUT, Palnut, 3/16 BS-189164GS
...
60
HEATSHIELD BS-208564GS
...
68
TRAY, Battery BS-195680GS
...
69
BATTERY BS-193043GS
...
71
JACK, Coaxial BS-192531GS
...
73
LUG BS-58359GS
...
74
KIT, Hardware, Battery Terminal BS-315546GS
...
76
WIRE BS-185939KGS
...
78
WIRE BS-189302CGS
...
81
WIRE BS-189302GGS
...
90
GRIP, Handle BS-198669GS
...
91
HANDLE BS-B193200GS
...
--
MANUAL, Engine, B&S (Not Illustrated) BS-MS3430
...
--
MANUAL, Operator's (Not Illustrated) BS-197523GS
...
--
OIL (Not Illustrated) BS-BB3061GS
...
--
PLUG, 120/240V, TL30 (Not Illustrated) BS-43438GS
...
--
DECAL, Family, ca evap (Not Illustrated) BS-202180GS
...
--
CHARGER, Battery (Not Illustrated) BS-84002790
...
--
KIT, Decals (Not Illustrated) BS-197787GS

Wheel Kit (201255)

...
...
1
WHEEL BS-209322GS
...
2
E-RING BS-703977
...
3
AXLE BS-191267GGS
...
6
SUPPORT, Leg BS-B187101GS
...
7
FOOT, Mounting BS-87841GS
...
9
NUT BS-67989GS
...
10
NUT, 1/4-20, GR5 BS-703233
...
--
KIT, Hardware (Not Illustrated) BS-187046GS

Wiring Diagram (196817WD)

...

No Parts Available for this Schematic

Wiring Schematic (196817WS)

...

No Parts Available for this Schematic

...
...
...
...
...
