030241-0 Briggs and Stratton Generator 5,550 Watt

Model: 030241-0

Save
 Part Not Listed?Part Not Listed?
product name

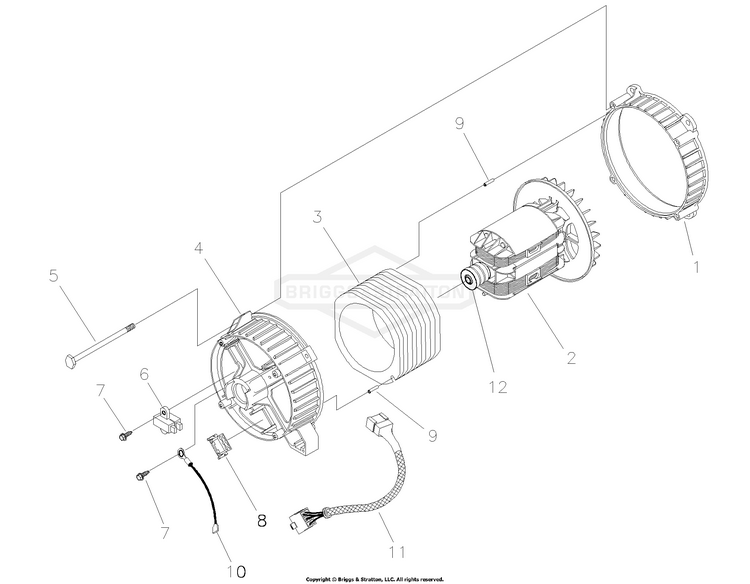

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ASSY., Rotor (Includes Item 12) BS-191043GS
...
3
STATOR BS-191042AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCJ., M6 - 1.0 x 13( .EMS BS-86308CGS
...
6
ASSEMBLY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
WIRE-A, Ground BS-193428AGS
...
11
HARNESS, Wire, Power BS-194274GS
...
12
BEARING BS-65791GS

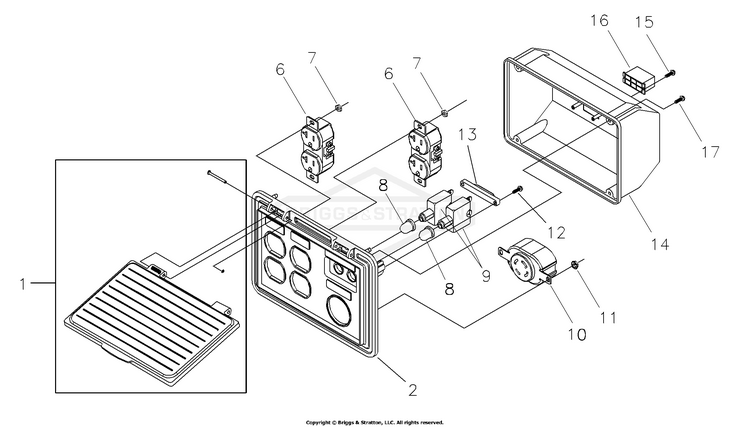

Control Panel

...
...
1
KIT, Control Panel Lid BS-195112GS
...
2
CONTROL PANEL, Compact BS-188889GS
...
6
OUTLET, 120V, 20Amp, Duplex BS-68759GS
...
8
CAP, Circuit Breaker BS-84198GS
...
9
BREAKER-CIRCUIT 20A BS-209872GS
...
10
OUTLET, 120/240 Locking, 30A BS-43437GS
...
13
BAR, Retaining BS-93857GS
...
14
COVER, Back, Control Panel BS-188890GS
...
15
SCREW, Self Tapping, STC 3 x 18 BS-82308GS
...
16
HOUSING, Receptacle BS-22694GS

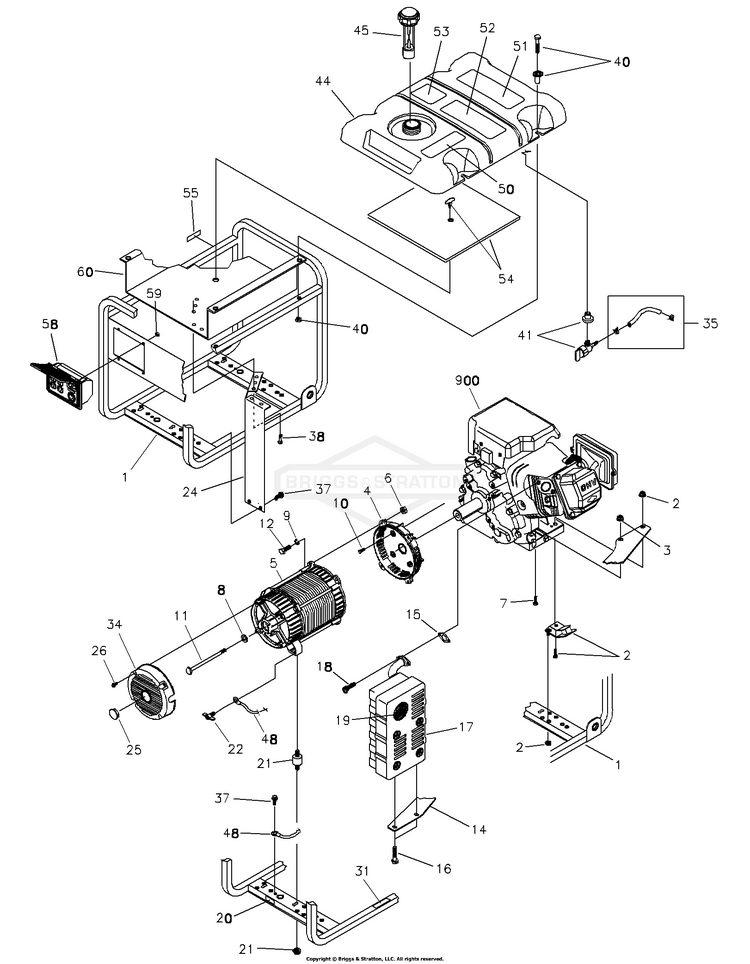

Main Unit

...
...
1
CRADLE (Includes #’s 20, 31 & 55) BS-M197544GS
...
2
KIT, Vibration Mount 45° BS-194150GS
...
3
NUT, M8 Flange Serrated BS-67989GS
...
4
HOUSING, Engine Adapter BS-190220GS
...
7
TPHMS, M8 - 1.25 x 35 Purchase locally BS-96796GS
...
10
SBHCS, 3/8-16 x 1.0 Lg BS-190274BGS
...
11
HHCS, 5/16-24 x 7 BS-47480GS
...
14
BRACKET, Muffler BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground, Green BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW, Wing M6 - 1.0 x 16 BS-86494GS
...
24
SHIELD, Heat BS-194390GS
...
25
CAP BS-191190GS
...
26
SCREW, M5-0.8 x 10, Taptite BS-74908GS
...
31
DECAL, Hot Muffler BS-196830GS
...
34
COVER, RBC, Plastic w/Cap BS-195422GS
...
35
LINE, Fuel BS-791745
...
37
SCREW, 12-14 x 7/8 Self Drilling BS-B2153GS
...
38
SCREW, 10-24 x 1/2 Crimptite BS-56893GS
...
40
KIT, Fuel Tank Hardware (Includes Qty of 4) BS-195477GS
...
41
KIT, Valve, Tank BS-192980GS
...
44
ASSY., Tank, Fuel 7-Gallon (Includes Items 41, 50, 51, 52 & 53) BS-194217GS
...
45
CAP, Fuel Gauge BS-B4363GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Gas Fill BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
53
DECAL, Warning, CO BS-202997GS
...
54
KIT, Insulation w/Clip BS-194448GS
...
55
DECAL, Fuel Shut-off BS-197798GS
...
58
ASSY, Control Panel BS-190355GS
...
59
NUT, Palnut, 3/16" BS-189164GS
...
60
HEATSHIELD BS-208564GS
...
--
BOTTLE, Oil Parts Not Illustrated BS-BB3061GS
...
--
MANUAL, Operator’s Parts Not Illustrated BS-197023GS
...
--
DECAL, Family, CA EVP Parts Not Illustrated BS-202180GS
...
--
KIT, Decals, Service Parts Not Illustrated BS-197659GS

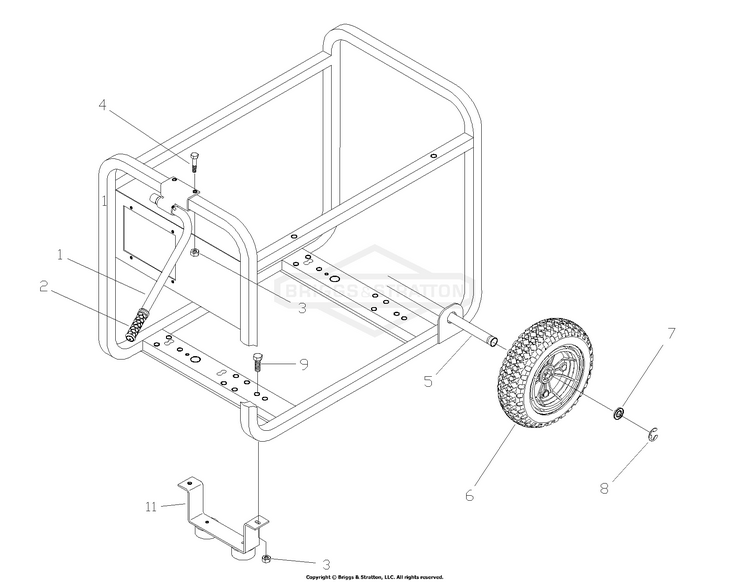

Wheel Kit

...
...
1
ASSY., Handle w/Grip BS-189715GS
...
2
GRIP BS-198669GS
...
3
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
5
AXLE BS-191267GGS
...
6
WHEEL BS-209322GS
...
8
E-RING BS-703977
...
11
ASSY., Support w/Mounts BS-204536GS
...
--
SUBKIT, Hardware Part Not Illustrated BS-189738GS
...
...
...
...
...
