030239-0 Briggs and Stratton Generator 2,000 Watt

Model: 030239-0

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

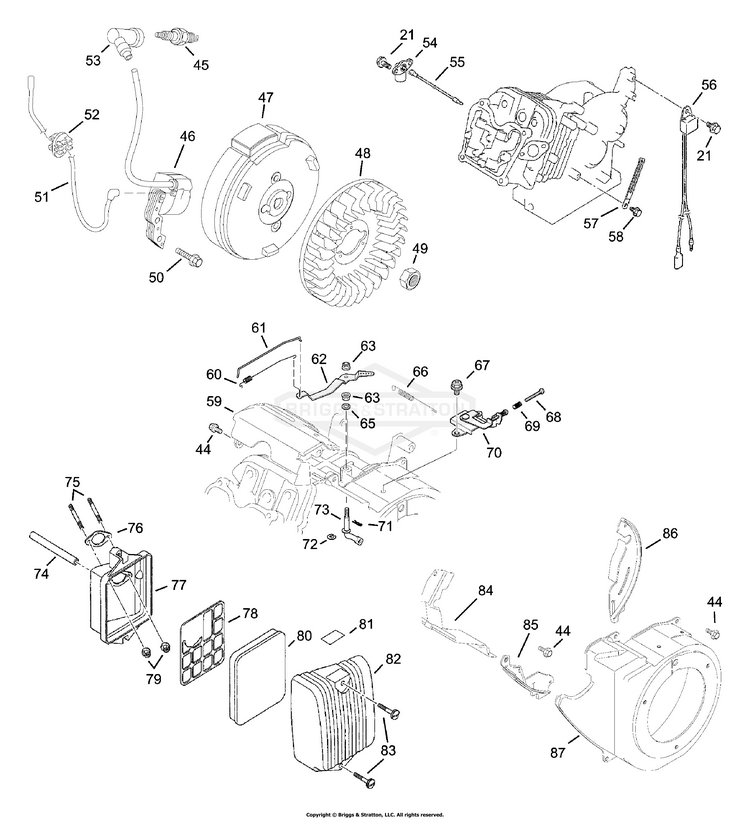

Engine (Part 3)

...
...
21
SCREW BS-710057
...
44
SCREW BS-710023
...
45
PLUG-SPARK BS-711252
...
46
ARMATURE-MAGNETO BS-711197
...
47
FLYWHEEL BS-711735
...
48
FAN - FLYWHEEL BS-711738
...
49
NUT BS-710048
...
50
SCREW BS-711142
...
51
WIRE-STOP BS-710324
...
52
CLIP-WIRE BS-710046
...
53
BOOT-SPARK PLUG BS-710634
...
54
SENSOR-OIL BS-711246
...
55
WIRE ASSEMBLY BS-711247
...
56
MODULE-OIL GARD BS-710305
...
57
CLIP-WIRE BS-710407
...
58
SCREW BS-711427
...
59
SHIELD-HEAT BS-711718
...
60
SPRING-GOV LINK BS-197989GS
...
61
LINK - MECH GOVERNOR BS-197990GS
...
62
LEVER - GOV. CONTROL BS-197991GS
...
63
NUT BS-711208
...
65
WASHER BS-711516
...
66
SPRING-GOVERNOR BS-197992GS
...
67
SCREW BS-710074
...
68
SCREW/SPG-GOV SPEED BS-715941
...
69
SCREW/SPG-GOV SPEED BS-715941
...
70
KIT-IDLE SPEED (Incl 68, 69) BS-711132
...
71
PIN-COTTER BS-710056
...
72
RETAINER-E RING (Incl 72) BS-710154
...
73
CRANK, Governor BS-711514
...
74
BRTHR,AIR CLNR BS-187498GS
...
75
STUD,AIR CLNR BS-187500GS
...
76
GASKET-AIR CLEANER Included in Gasket Set "V" BS-710639
...
77
BASE - AIR CLEANER BS-711138
...
78
RETAINER-AIR FILTER BS-711461
...
79
NUT,AIR CLNR CVR BS-187503GS
...
80
ELEMENT, CLNR,AIR BS-187497GS
...
81
DECAL, CHOKE BS-187576GS
...
82
CVR, CLNR,AIR BS-187494GS
...
83
SCREW - A/C COVER BS-711163
...
84
SHIELD-CYLINDER BS-197998GS
...
85
COVER-AIR GUIDE BS-711746
...
86
COVER-AIR GUIDE BS-711744
...
87
HOUSING-BLOWER BS-197999GS
...
...
...
...
...
