030239-0 Briggs and Stratton Generator 2,000 Watt

Model: 030239-0

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

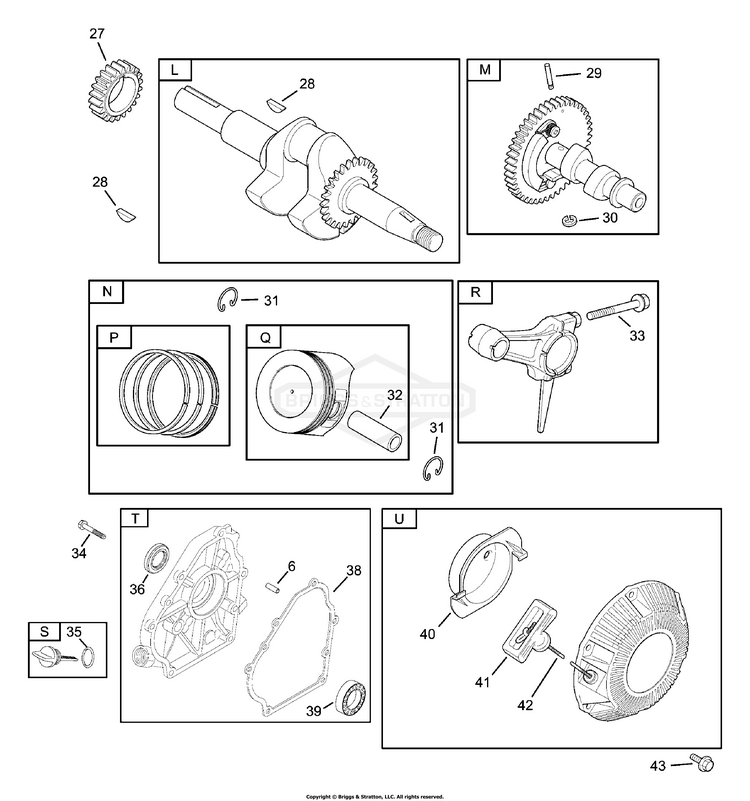

Engine (Part 2)

...
...
6
PIN-LOCATING BS-710005
...
26
JET-MAIN BS-711754
...
27
GEAR-TIMING BS-711708
...
28
KEY-WOODRUFF BS-710037
...
29
PIN-SHAFT BS-711730
...
30
RETAINER-E RING BS-710548
...
31
LOCK - PISTON PIN BS-711494
...
32
PIN - PISTON BS-711733
...
33
SCREW BS-710041
...
34
SCREW BS-710032
...
35
SEAL - O RING BS-711521
...
36
SEAL-OIL BS-197987GS
...
38
GASKET-CRANKCASE Included in Gasket Set "V" BS-711752
...
39
BEARING-BALL BS-711175
...
40
CUP-FLYWHEEL BS-711758
...
42
ROPE - STARTER BS-711539
...
43
SCREW BS-710976
...
L
CRANKSHAFT (Incl 28) BS-198004GS
...
M
CAMSHAFT (Incl 29, 30) BS-198005GS
...
N
PISTON ASSY (STD, Incl P, Q, 31) BS-716061
...
P
RING SET-STD BS-715060
...
Q
PISTON ASSY (STD, Incl 32) BS-716061
...
R
ROD-CONNECTING-STD (Incl 33) BS-716059
...
S
DIPSTICK (Incl 35) BS-715588
...
T
COVER-CRANKCASE (Incl 6, 36, 38, 39) BS-198007GS
...
U
STARTER - REWIND (Incl 40, 41, 42) BS-716068
...
...
...
...
...
