030239-0 Briggs and Stratton Generator 2,000 Watt

Model: 030239-0

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

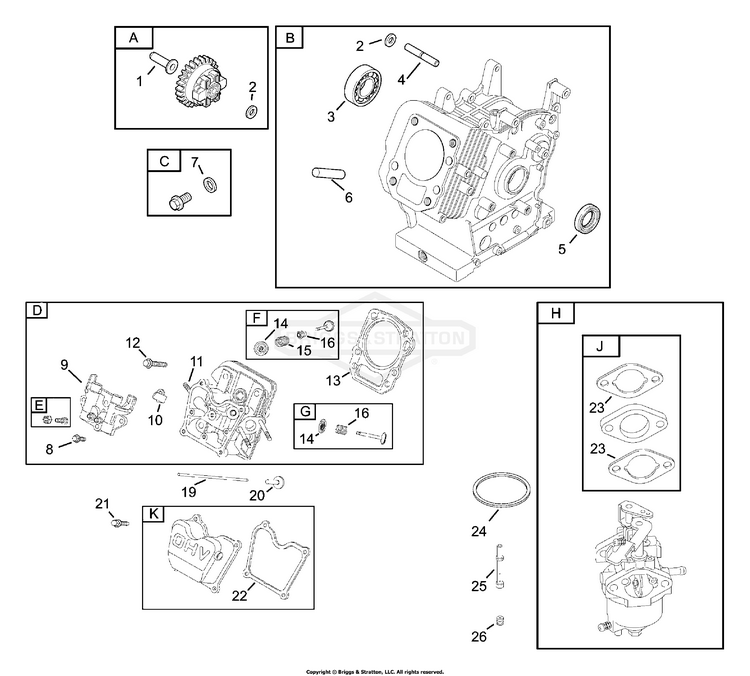

Engine (Part 1)

...
...
1
CUP, Governor BS-710872
...
2
WASHER BS-710545
...
3
BEARING-BALL BS-711728
...
4
SHAFT-GOV GEAR BS-710028
...
5
SEAL-OIL BS-197983GS
...
6
PIN-LOCATING BS-710005
...
7
WASHER BS-711188
...
8
SCREW BS-710234
...
9
ARM - ROCKER (Incl E) BS-197984GS
...
10
PLATE - VALVE SPRING BS-711731
...
11
STUD BS-710148
...
12
SCREW BS-710020
...
13
GASKET-CYLINDER HD Included in Gasket Set "V" BS-711732
...
14
RETAINER-VALVE BS-711086
...
15
WASHER BS-712063
...
16
SPRING - VALVE BS-711492
...
19
ROD - PUSH BS-197985GS
...
20
TAPPET-VALVE BS-711173
...
21
SCREW BS-710057
...
22
GASKET-ROCKER COVER Included in Gasket Set "V" BS-711490
...
23
GASKET-INTAKE Included in Gasket Set "V" BS-710060
...
24
GASKET-FLOAT BOWL BS-711763
...
25
NOZZLE-CARBURETOR BS-711756
...
26
JET-MAIN BS-711754
...
A
GEAR-GOVERNOR (Incl 1, 2) BS-715679
...
B
CYLINDER ASSY (Incl 2, 3, 4, 5, 6) BS-198000GS
...
C
PLUG-OIL DRAIN (Incl 7) BS-715811
...
D
HEAD-CYLINDER (Incl E, F, G, 8, 9, 10, 11, 12, 13) BS-198001GS
...
E
ADJUSTER-ROCKER ARM BS-715841
...
F
VALVE-INTAKE (Incl 14, 15, 16) BS-716051
...
G
VALVE-EXHAUST (Incl 14, 16) BS-716052
...
H
CARBURETOR (Incl J, 24, 25, 26) BS-198002GS
...
J
SPACER-CARBURETOR (Incl 23) BS-715034
...
K
COVER - ROCKER ARM (Incl 22) BS-198003GS
...
...
...
...
...
