030239-0 Briggs and Stratton Generator 2,000 Watt

Model: 030239-0

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

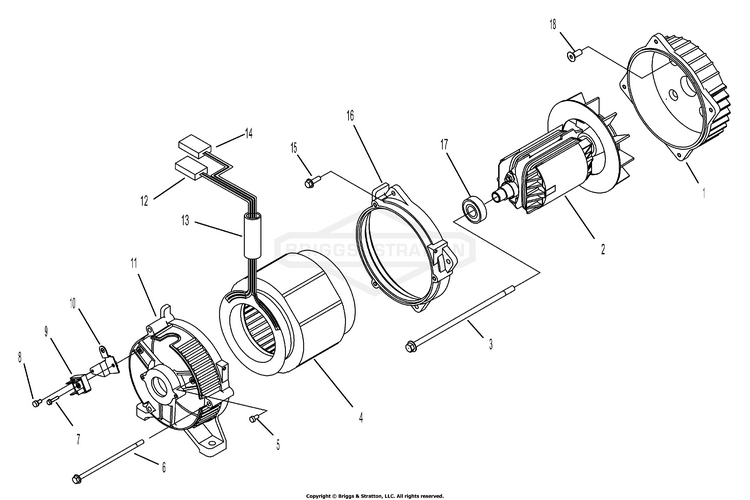

Alternator

...
...
1
ADPTR, ENG BS-197889GS
...
2
ASSY, ROTOR BS-197890GS
...
3
BOLT, ROTOR BS-197891GS
...
4
ASSY, STATOR BS-197892GS
...
5
SCREW, M5 X 8 BS-197893GS
...
6
BOLT, STATOR BS-197894GS
...
7
SCREW, M4 X 18 BS-197895GS
...
8
SCREW, M5 X 10 BS-197896GS
...
9
RECTIFIER BS-187462GS
...
10
BRCKT, RCTFR BS-197897GS
...
11
RBC BS-197898GS
...
12
CNNCTR BS-197899GS
...
13
SLEEVE BS-197900GS
...
14
CNNCTR BS-197901GS
...
15
SCREW, M6 X 20 BS-197902GS
...
16
ADPTR, MNTNG,ALT BS-197903GS
...
17
BRNG BS-187411GS
...
18
SCREW, M8 X 20 BS-197904GS
...
...
...
...
...
