030239-0 Briggs and Stratton Generator 2,000 Watt

Model: 030239-0

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

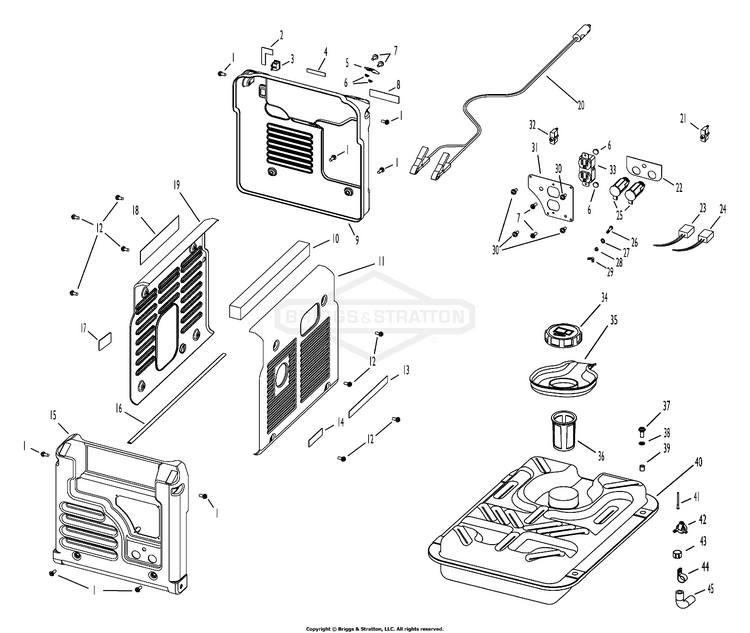

Main Unit (Part 1)

...
...
1
BOLT, CVR, MFFLR BS-187757GS
...
2
DECAL, ON-OFF BS-197871GS
...
3
SWITCH, ENG, ON/OFF BS-187450GS
...
4
DECAL, CHOKE BS-187766GS
...
5
SPPRT, RECOIL BS-197843GS
...
6
NUT, M4, FLNG BS-187761GS
...
7
SCREW, M4X12 BS-187760GS
...
8
DECAL, FUEL SHUTOFF, 4-L, CCW BS-191545GS
...
9
PNL, END, RECOIL BS-197829GS
...
10
FILLER, FOAM BS-197882GS
...
11
PNL, SIDE, MFFLR BS-197831GS
...
12
BOLT, M6X16 BS-197860GS
...
13
DECAL, SPECS BS-197872GS
...
14
DECAL, CAUTION, HOT MFFLR, 4 LANG BS-191436GS
...
15
PNL, END, CNTRL BS-197828GS
...
16
U-PACKING BS-197881GS
...
17
DECAL, CAUTION, OIL BS-187763GS
...
18
DECAL, UNIT BS-197870GS
...
19
PNL, SIDE, OIL BS-197830GS
...
20
CABLE, BTTRY CHARGE,ACC PLUG BS-187876GS
...
21
BRKR, CRCT, 10A, 125V BS-187460GS
...
22
DECAL, DC OUT BS-197873GS
...
23
CNNCTR BS-197875GS
...
24
CNNCTR BS-197876GS
...
25
OUTLET, 12V DC,ACCSSRY BS-187873GS
...
26
PHMS, M5-0.8 X 20 BS-187415GS
...
27
WSHR, LCK, INTRNL BS-197874GS
...
28
NUT, M5 X 0.8 BS-187423GS
...
29
NUT,WING, M5 X 0.8 BS-187424GS
...
30
SCREW, M4X12, SLFTAP BS-197863GS
...
31
PNL, CNTRL BS-197854GS
...
32
BRKR, CRCT, 15A, 125V BS-197855GS
...
33
RCPTCL, 15 A, 125 V BS-187456GS
...
34
CAP, FUEL BS-187436GS
...
35
PACKING,TANK BS-197883GS
...
36
STRAINER-FUEL BS-710065
...
37
BOLT, M6X20, FLNG BS-197864GS
...
39
SLEEVE BS-197865GS
...
40
TANK, FUEL BS-197832GS
...
41
FILTER - FUEL BS-711550
...
42
VALVE- FUEL SHUT OFF BS-711547
...
43
CLAMP, HOSE BS-711549
...
44
CLIP, NYLN BS-197845GS
...
45
HOSE, FUEL BS-197844GS
...
MANUAL, Owners Not Illustrated BS-197561GS
...
BOTTLE, Oil Not Illustrated BS-100005
...
...
...
...
...
