030235-2 Briggs and Stratton Generator 5,500 Watt

Model: 030235-2

Save
 Part Not Listed?Part Not Listed?
product name

Alternator (197102)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-191043GS
...
3
STATOR BS-191042AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 130 SEMS BS-86308CGS
...
6
ASSY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
ASSY,Wire, Ground BS-193428AGS
...
11
HARNESS,Wire, Power BS-194274GS
...
12
BEARING BS-65791GS
...
--
O-Ring BS-189197GS

Control Panel (197642)

...
...
1
PANEL, Control BS-197471GS
...
2
COVER, Outlet Flip BS-197472GS
...
3
COVER, Back Panel BS-188890GS
...
4
OUTLET, 120V, 15/20A Duplex BS-197731GS
...
5
NUT, 5/32 Pal BS-189165GS
...
6
LIGHT, Led Panel BS-202951GS
...
7
SCREW, 3 x 6, Tapping BS-197958GS
...
8
BREAKER-CIRCUIT 20A BS-202030GS
...
--
BOOT, Breaker Circuit (not shown) BS-191481GS
...
9
OUTLET, 120/240V, 30A BS-43437GS
...
10
HOUSING, Receptacle, 6 Pin BS-22694GS
...
11
SCREW, 3 x 18, Tapping BS-82308GS
...
12
SCREW, 3.5 x 14, Tapping BS-192241GS

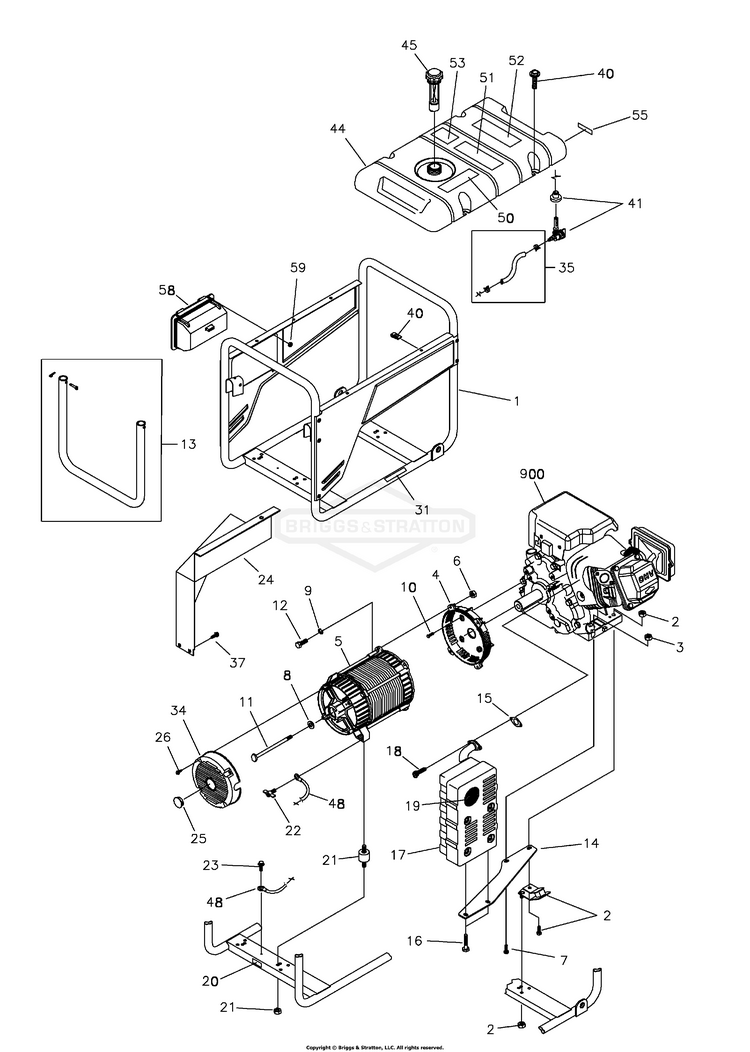

Main Unit (197441)

...
...
1
Assy., Cradle (Includes #20 & 31) BS-198163GS
...
2
Kit, Vibration, Mount, 45° BS-194150GS
...
3
Nut, M8 Flange Serrated BS-67989GS
...
4
Housing, Engine Adapter BS-190220GS
...
5
Assy., Alternator See Alternator BS-~NSP
...
7
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
8
Washer, M8 Flat BS-96796GS
...
11
HHCS, 5/16-24 x 7 BS-47480GS
...
13
Kit, Handle BS-198165GS
...
14
Bracket, Muffler BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
17
Muffler BS-189008GS
...
18
SHCS, 5/16 - 18 x 7/8" BS-201522GS
...
19
Screen, Spark Arrest BS-83083GS
...
20
Decal, Ground, Green BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
Screw, Wing M6 - 1.0 x 16 BS-86494GS
...
23
Screw, 12 - 14 x 7/8, Self Drill BS-B2153GS
...
24
Shield, Heat BS-197424GS
...
25
Cap BS-191190GS
...
26
Screw, M5-0.8 x 10, Taptite BS-74908GS
...
31
Decal, Exhaust Warning BS-196830GS
...
34
Cover, RBC, Plastic w/Cap BS-195422GS
...
35
LINE, Fuel (Cut To Fit) BS-791745
...
37
Crimptite, 10-24 x 1/2 BS-56893GS
...
40
Kit, Fuel Tank Hardware w/U-Clips BS-199433GS
...
xx
U-Clips (Optional Accessory) BS-199284GS
...
41
Kit, Valve, Fuel Tank BS-192980GS
...
44
Assy., Tank, Fuel (Includes #41, 50, 51, 52, 53 & 55) BS-193668GS
...
45
Cap, Fuel Gauge BS-B4363GS
...
48
Wire, Ground BS-195373GS
...
50
Decal, Gas Fill BS-188333GS
...
51
Decal, Danger BS-194799GS
...
52
Decal, Start Instructions BS-189235GS
...
53
Decal, Warning, CO BS-202997GS
...
55
Decal, Shut-Off, Fuel BS-197798GS
...
58
Assy., Control Panel BS-197641GS
...
xx
Manual, Operator’s Parts Not Illustrated BS-200907GS
...
xx
Bottle, Oil Parts Not Illustrated BS-BB3061GS
...
xx
CORD, Power Parts Not Illustrated BS-206775GS
...
xx
Kit, Decals Parts Not Illustrated BS-198166GS

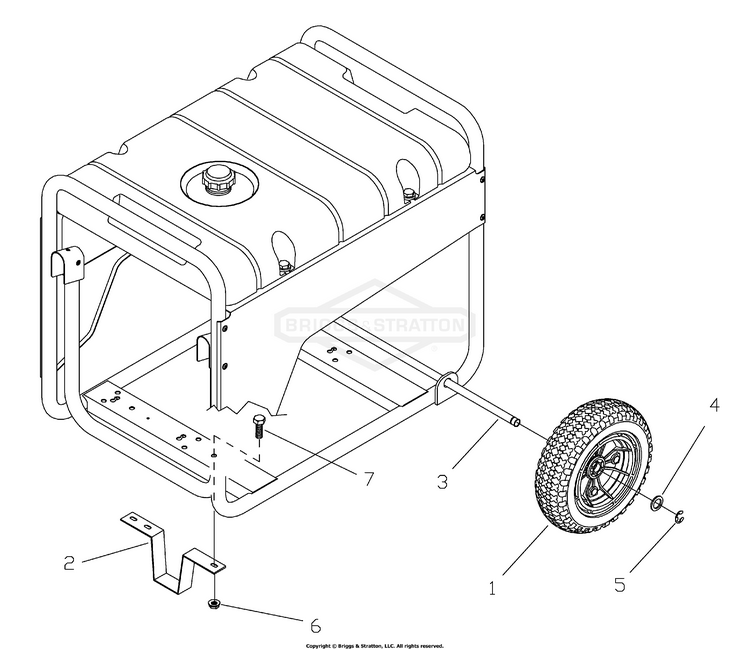

Wheel Kit (197317)

...
...
1
WHEEL BS-209322GS
...
2
Support, Wheel Kit BS-B1764GS
...
3
Axle BS-191267HGS
...
5
E-RING BS-703977
...
6
Nut, M8 - Flange Serrated BS-67989GS
...
--
Subkit, Hardware Parts Not Illustrated BS-197594GS
...
...
...
...
...
