030231-0 Briggs and Stratton Generator 3,600 Watt

Model: 030231-0

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

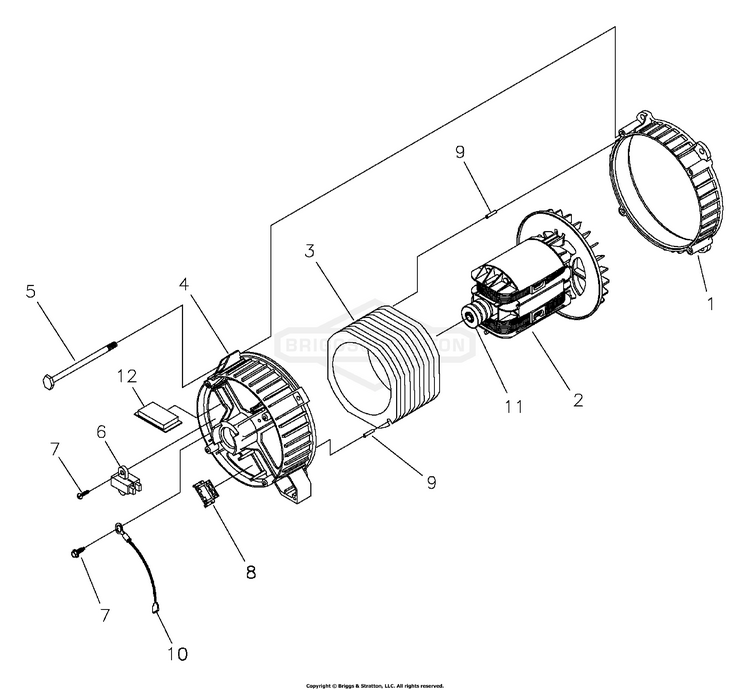

Alternator (198252)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ASSY, Rotor (Includes Item 11) BS-198501GS
...
3
STATOR BS-198500AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 115 SEMS BS-86308GS
...
6
ASSY, Holder, Brush BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
ASSY,Wire, Ground BS-193428AGS
...
11
BEARING BS-65791GS
...
12
BOARD, Circuit, System Control BS-205858GS
...
O-Ring BS-189197GS

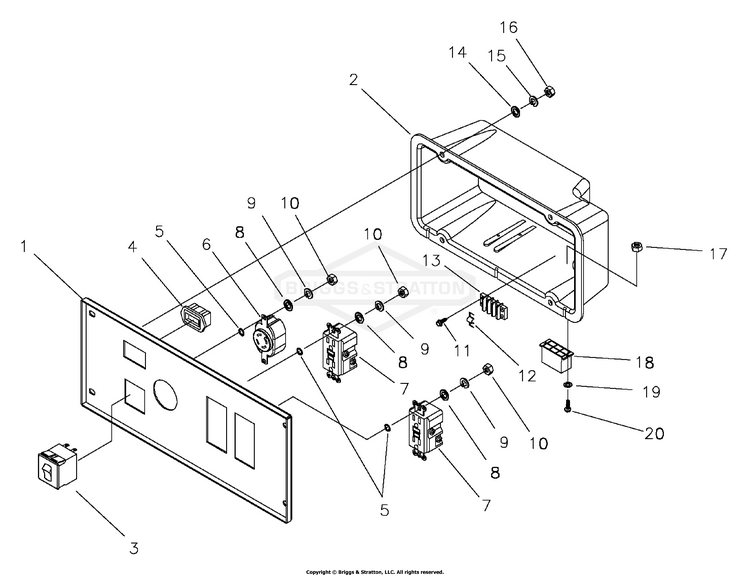

Control Panel (198253)

...
...
1
PANEL, Control BS-198234GS
...
2
BOX, Control Panel BS-198236GS
...
3
BREAKER-CIRCUIT 15A BS-202027GS
...
4
METER-HOUR BS-202602GS
...
6
OUTLET, 120/240V, 20A BS-68867GS
...
7
OUTLET, 120V, 15A Duplex BS-94373GS
...
11
SCREW, 4 x 18,Tapping BS-198495GS
...
12
JUMPER,Terminal Block BS-193095GS
...
13
STRIP,Terminal, 3 Pole BS-193427GS
...
18
HOUSING, Plug BS-22694GS

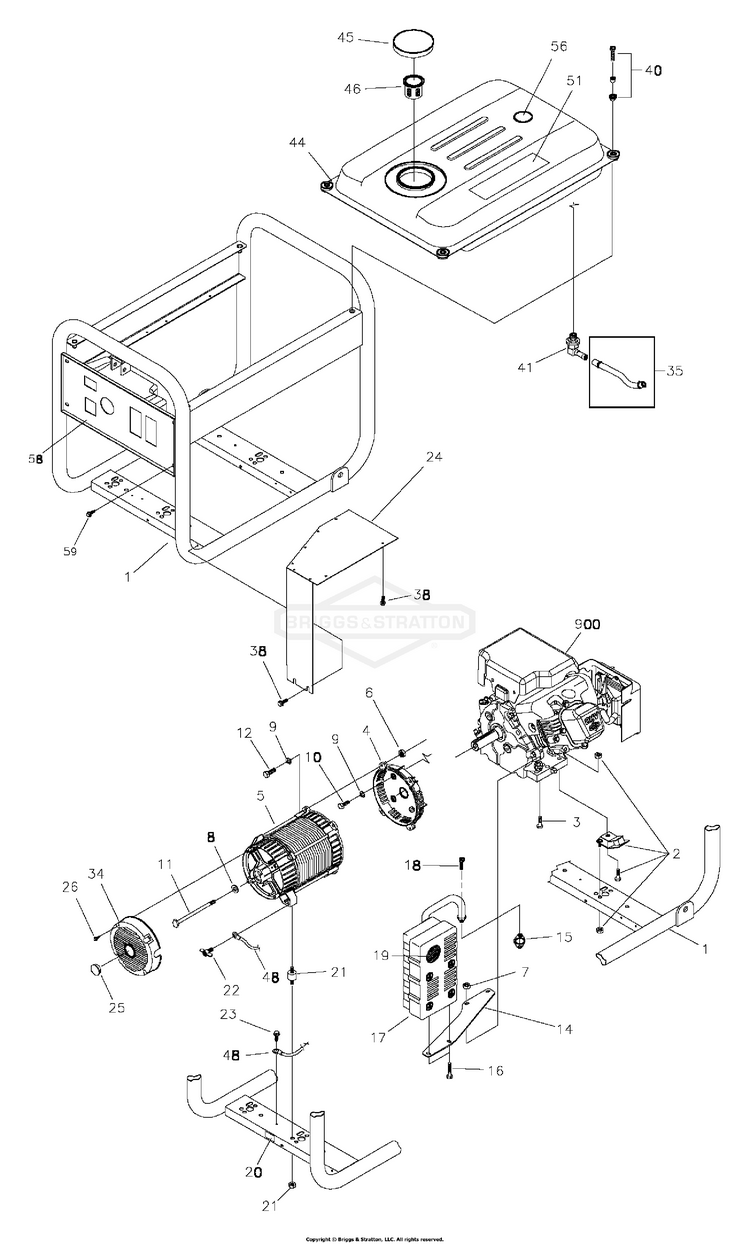

Main Unit (199493)

...
...
1
KIT, Cradle BS-B198124GS
...
2
KIT, Vibration Mount BS-194150GS
...
3
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
4
ADAPTER, Engine BS-186058AGS
...
5
ASSY, Alternator (see "Alternator") BS-~NSP
...
7
NUT, M8 Flange Serrated BS-67989GS
...
8
WASHER BS-96796GS
...
11
HHCS, 5/16 - 24 x 7-7/8" BS-24823GS
...
14
BRACKET, Muffler BS-191785GS
...
15
GASKET-EXHAUST BS-692237
...
17
MUFFLER BS-188301GS
...
18
SHCS, M6 - 1.0 x 20 BS-40945GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW,Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
24
ASSY, Heat Shield BS-197601GS
...
25
CAP BS-191190GS
...
26
TAPTITE, M5 - 0.8 x 10 BS-74908GS
...
34
COVER, RBC Plastic with Cap BS-195422GS
...
35
LINE, Fuel BS-791745
...
38
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
40
KIT, Fuel Tank Hardware BS-197618GS
...
41
VALVE, Fuel BS-310574GS
...
44
ASSY,Tank Fuel (Includes Items 41, 45, 46, 51 & 56) BS-197620GS
...
45
CAP,Tank Fuel BS-189135GS
...
46
STRAINER,Tank Fuel BS-197499GS
...
48
WIRE, Ground BS-195373GS
...
51
DECAL, Danger BS-197157GS
...
56
GAUGE, Fuel BS-189136GS
...
58
ASSY, Control Panel (see "Control Panel") BS-198235GS
...
59
PPHS, 1/4 - 20 x 0.5 BS-198611GS
...
MANUAL, Operator's Parts Not Illustrated BS-199454GS
...
MANUAL, Engine Parts Not Illustrated BS-MS6737
...
PLUG-120/240V TL20A Parts Not Illustrated BS-100522GS
...
KIT, Decals Srv Parts Not Illustrated BS-200172GS
...
Front Draw Bar w/Spindles-RH Side Optional Accessories BS-100126

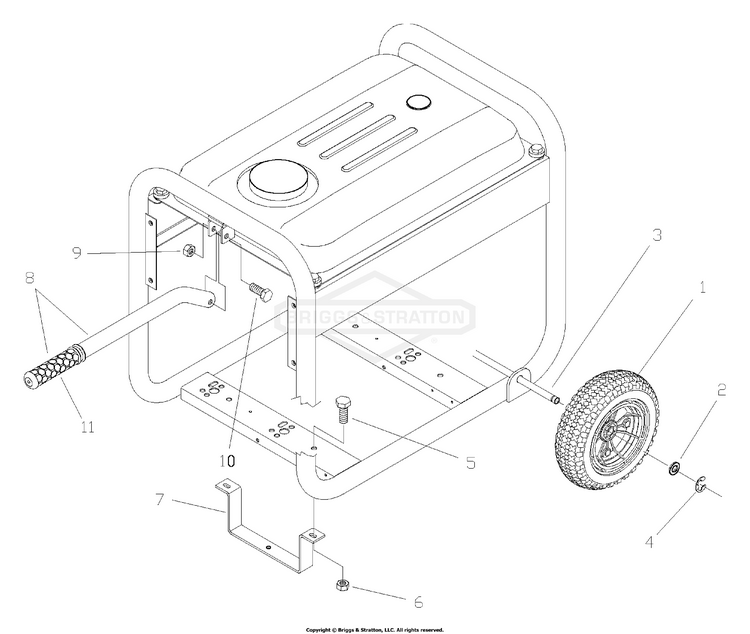

Wheel Kit (198254)

...
...
1
WHEEL BS-209322GS
...
3
AXLE BS-198248GS
...
4
RETAINER, RING, 1/2 BS-703976
...
6
NUT, M8, Flange Serrated BS-67989GS
...
7
SUPPORT,Wheel Kit BS-198441GS
...
8
ASSY, Handle (Includes Item 11) BS-B198440GS
...
9
NUT, M8 1.25 Nylok BS-49820GS
...
11
GRIP BS-198669GS

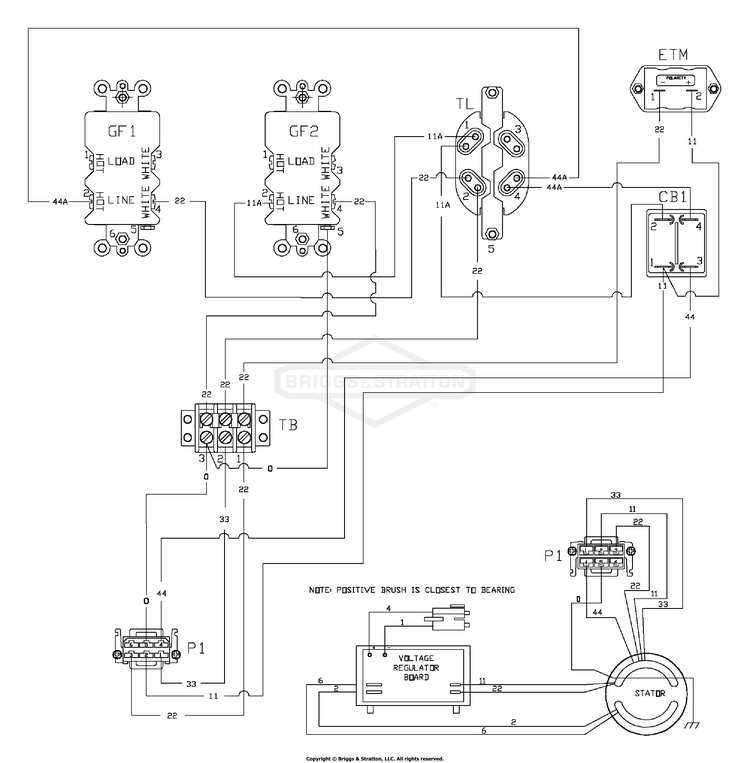

Wiring Diagram (198241)

...

No Parts Available for this Schematic

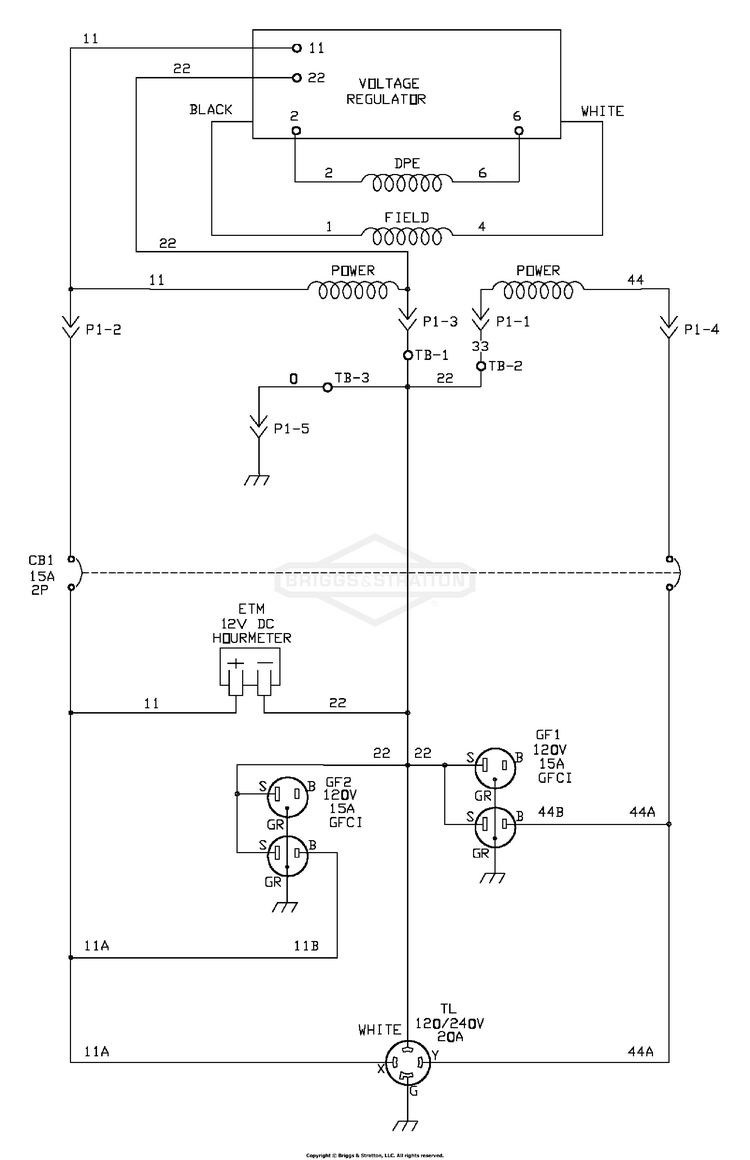

Wiring Schematic (198241)

...

No Parts Available for this Schematic

...
...
...
...
...
