030229-0 Briggs and Stratton Generator BSQ3500

Model: 030229-0

Save
 Part Not Listed?Part Not Listed?
product name

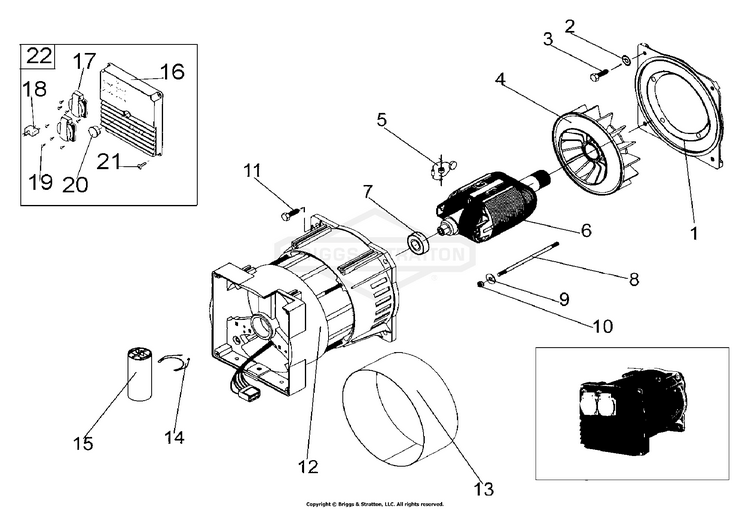

Alternator

...
...
Alternator BS-102064GS
...
1
Flange Plate BS-102051GS
...
2
Washer Spring M8 & 5/16" BS-~NSP
...
3
Screw Set 5/16"UNF x 3/4" BS-~NSP
...
4
Rotor Fan Sincro BS-102073GS
...
5
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
6
Rotor Assy Sincro EP3.0 BS-102080GS
...
7
Rotor Bearing BS-102038GS
...
8
Rotor Bolt 195mm BS-102057GS
...
9
Washer Flat M8 & 5/16" BS-~NSP
...
10
Nut nylock M8-1.25 Type T BS-~NSP
...
11
Screw Set 5/16"UNF x 3/4" BS-~NSP
...
12
Stator Assy Sincro EP3.0 BS-102078GS
...
13
Stator Cover Band BS-~NSP
...
14
Capacitor Clip BS-~NSP
...
15
CAPACITOR BS-707029
...
16
Outlet Panel Blank BS-102075GS
...
17
Outlet Socket Schuko Used on 102064GS BS-102030GS
...
18
Circuit Breaker 12A BS-102049GS
...
19
Screw Plastite PPhd No6 * 3/8" BS-~NSP
...
20
End Cap PLastic Plug BS-102085GS
...
21
Screw MC PPHD M5*10mm BS-~NSP
...
22
Outlet Panel Complete EP3.0 G/S Used on 102064GS BS-102093GS

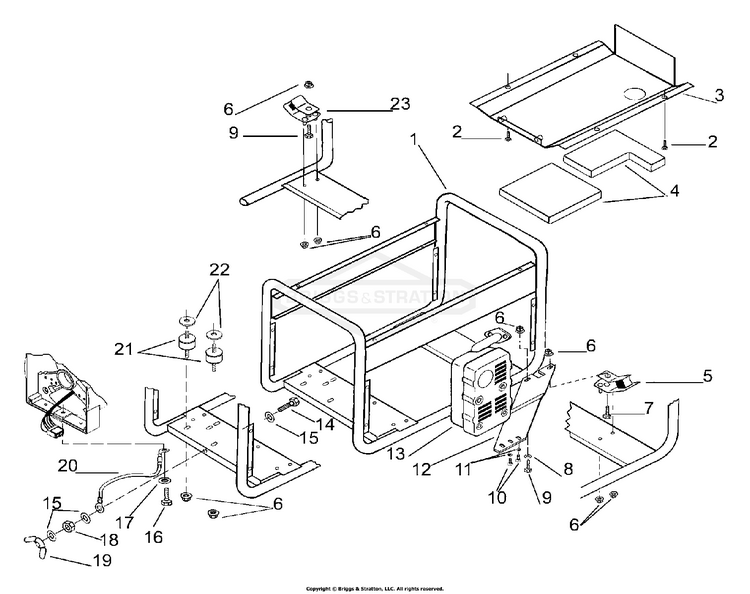

Cradle Assembly

...
...
1
Cradle Assembly, BSQ3500 BS-103084GS
...
2
Screw Taptite PPHd 4.2*1.4*8mm BS-~NSP
...
3
Heat Shield, Fuel tank, Pro Max 3500S BS-103083GS
...
4
Acoustic foam, Fuel tank Heatshield BS-103136GS
...
5
Vibration Mount 45 Degree Hard BS-102031GS
...
6
Nut Flange M8-1.25 BS-~NSP
...
7
Bolt M8-1.25*40mm BS-102264GS
...
8
Washer Flat M8 & 5/16" BS-~NSP
...
9
Screw Set M8-1.25*35mm BS-~NSP
...
10
Screw Set HHD M6-1.0*12mm BS-~NSP
...
11
Washer Spring M6*1/4" BS-~NSP
...
12
Bracket Exhaust Mounting BS-102503GS
...
13
Exhaust B4206 Modified BS-102502GS
...
14
Screw Machine HHD M8-1.25*16mm BS-~NSP
...
15
Washer Shakeproof 1/4" & M6 Int BS-~NSP
...
16
Screw Set M6-1.0x25mm Plated BS-~NSP
...
17
Washer Shakeproof M8 int BS-~NSP
...
18
Nut Full M6-1.0 BS-~NSP
...
19
Nut Wing M6-1.0 BS-102036GS
...
20
Lead Earth Assy 145mm BS-102050GS
...
21
Vibration Mount 32mm Diameter BS-102034GS
...
22
Spacer 4mm BS-102118GS
...
23
Vibration Mount 45 Degree Soft BS-102033GS
...
--
Decal Warning Read Manual (Not Illustrated) BS-102077GS
...
--
Decal Caution Hot (Not Illustrated) BS-102041GS
...
--
Decal GND (Not Illustrated) BS-102048GS
...
--
Decal Electrical Hazard (Not Illustrated) BS-102076GS
...
--
Decal BSQ3500 (Not Illustrated) BS-103155GS
...
--
Owners Manual Euro-25L Portable Generator (Not Illustrated) BS-MS5796

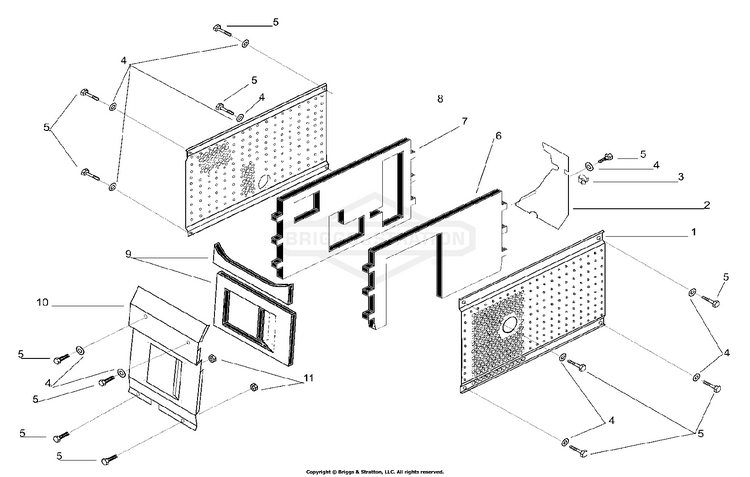

Panel Assembly

...
...
1
Panel Assembly,Exhaust Side (Includes Foam) BS-103153GS
...
2
Heatshield Carburetor BS-103133GS
...
3
Clip 13mm hose BS-102319GS
...
4
Washer Shakeproof 1/4" & M6 Int BS-~NSP
...
5
Screw Set HHD M6-1.0*12mm BS-~NSP
...
6
Acoustic Foam, (Supplied With Panel) BS-~NSP
...
7
Acoustic Foam, (Supplied With Panel) BS-~NSP
...
8
Panel Assembly, Oil Fill Side (Includes Foam) BS-103152GS
...
9
Acoustic Foam, (Supplied With Panel) BS-~NSP
...
10
Panel Assembly, Outlet Side (Includes Foam) BS-103151GS
...
11
Nut Locking Flange M6-1.0mm BS-~NSP

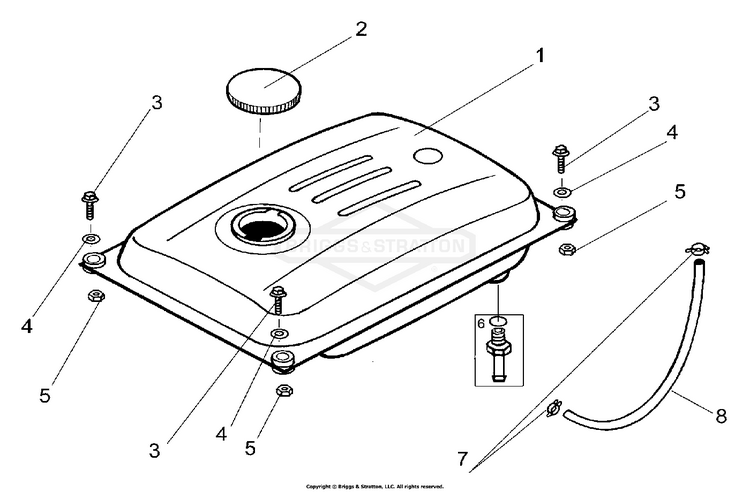

Tank Fuel Metal

...
...
1
Tank Fuel Metal BS-102044GS
...
2
Fuel Cap BS-102090GS
...
3
Screw Set M6-1.0x25mm Plated BS-~NSP
...
4
Washer Repair 6x20 oxy Black BS-102042GS
...
5
Nut Locking Flange M6-1.0mm BS-~NSP
...
6
Connector Fuel Tank BS-102699GS
...
7
Clamp Hose 14mm OD BS-102549GS
...
8
Hose Fuel 5/16"ID SAE J30R7 BS-102550GS
...
...
...
...
...
