030225-0 Briggs and Stratton Generator BSQ1000

Model: 030225-0

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

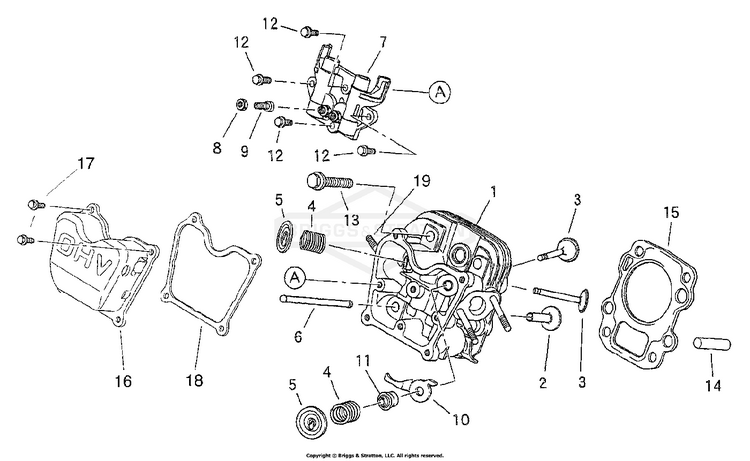

Cylinder Head

...
...
1
HEAD, Cylinder BS-715927
...
2
TPPT, CYL HEAD BS-187406GS
...
3
VALVE, Exhaust BS-715931
...
4
SPRING - VALVE BS-711492
...
5
RTNR,VLV SPG BS-187412GS
...
6
ROD - PUSH BS-711493
...
7
ASSY, RCKR, ARM BS-187416GS
...
8
NUT, CYL HEAD BS-187417GS
...
9
SCRW, ADJST BS-187418GS
...
10
PLATE, Valve Spring BS-711488
...
11
SEAL,VLV STEM BS-187422GS
...
12
BOLT,FLNG BS-187423GS
...
13
BOLT, FLNG BS-187426GS
...
14
PIN, DWL BS-187428GS
...
15
GASKET-CYLINDER HD BS-711489
...
16
CVR,VALVE BS-187468GS
...
17
BOLT,VALVE CVR BS-187470GS
...
18
GASKET-ROCKER COVER BS-711490
...
19
STUD BS-710099
...
...
...
...
...
