030225-0 Briggs and Stratton Generator BSQ1000

Model: 030225-0

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

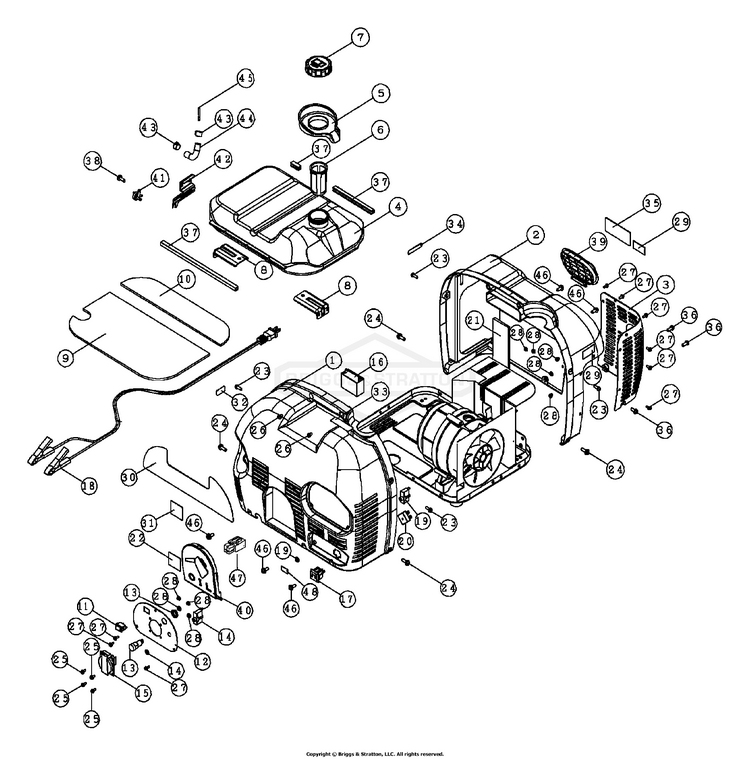

Enclosure

...
...
1
COVER, GENERATOR PANEL BS-187432GS
...
2
COVER, GENERATOR MUFFLER BS-187433GS
...
3
COVER, MUFFLER BS-187435GS
...
4
TANK-FUEL BS-199733GS
...
5
PACKING, TANK BS-187439GS
...
6
STRAINER-FUEL BS-710065
...
7
CAP, FUEL TANK BS-187436GS
...
8
BRACKET, TANK BS-187442GS
...
9
TANK-FUEL FOR TANK #1 BS-199733GS
...
10
TANK-FUEL FOR TANK #2 BS-199733GS
...
11
SWITCH, ENGINE BS-187450GS
...
12
PANEL, CONTROL (220V 60Hz) BS-103165GS
...
13
LAMP, PILOT (250V) BS-102003GS
...
14
BREAKER, CIRCUIT (4A 250V) BS-103166GS
...
15
RECEPTACLE, OUTLET (250V 16A) BS-102005GS
...
16
CONDENSOR (14µF 300V) BS-102006GS
...
17
DC OUTPUT BS-090418GS
...
18
BATTERY CHARGE CABLE BS-065787GS
...
19
BREAKER, CIRCUIT (10A 125V) BS-187460GS
...
20
BRIDGE DIODE BS-187462GS
...
21
HEAT SHIED SPONGE FOR COVER MUFFLER BS-187463GS
...
22
LABEL, WARNING ELECTRICAL BS-102007GS
...
23
BOLT, COVER (M5-16) BS-187756GS
...
24
BOLT, COVER (M6-20) BS-187774GS
...
25
SCREW, PAN HEAD (M4-12) WITH FLAT BS-187760GS
...
26
BOLT,COVER (M5-10) BS-187759GS
...
27
SCREW, PAN HEAD (M4-12) WITH FLAT,LOCK BS-102008GS
...
28
NUT, HEX HEAD (M4X0.6) WITH FLANGE BS-187761GS
...
29
LABEL, WARNING EXHAUST BS-102009GS
...
30
LABEL, MODEL BS-103167GS
...
31
LABEL, CAUTION OIL BS-187763GS
...
32
LABEL, FUEL COCK BS-187764GS
...
33
LABEL, CAUTION FUEL BS-187765GS
...
34
LABEL, CHOKE BS-187766GS
...
35
LABEL, DATA BS-103168GS
...
36
BOLT, MUFFLER COVER (M6-16) BS-187775GS
...
37
U-PACKING BS-187769GS
...
38
SCREW BS-711548
...
39
COVER, SPARK PLUG BS-187772GS
...
40
COVER, OIL FILLER BS-187773GS
...
41
VALVE- FUEL SHUT OFF BS-711547
...
42
BRACKET - MOUNTING BS-711546
...
43
CLAMP, HOSE BS-711549
...
44
FUEL HOSE BS-187578GS
...
45
FILTER - FUEL BS-711550
...
46
BOLT, COVER (M6-16) BS-187757GS
...
47
CONNECTOR BS-103169GS
...
48
LABEL, DC OUTPUT BS-102012GS
...
OWNER'S MANUAL BS-102784GS
...
OWNER'S MANUAL ADDENDUM FOR 030225 BS-103170GS
...
...
...
...
...
