030218-0 Briggs and Stratton Generator 3,500 Watt

Model: 030218-0

Save
 Part Not Listed?Part Not Listed?
product name

Alternator (191750)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-191685GS
...
3
STATOR BS-191686AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 115 SEMS BS-86308GS
...
6
ASSY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
ASSY,Wire, Ground BS-193428AGS
...
13
HARNESS,Wire, Power BS-194274GS
...
14
BEARING BS-65791GS

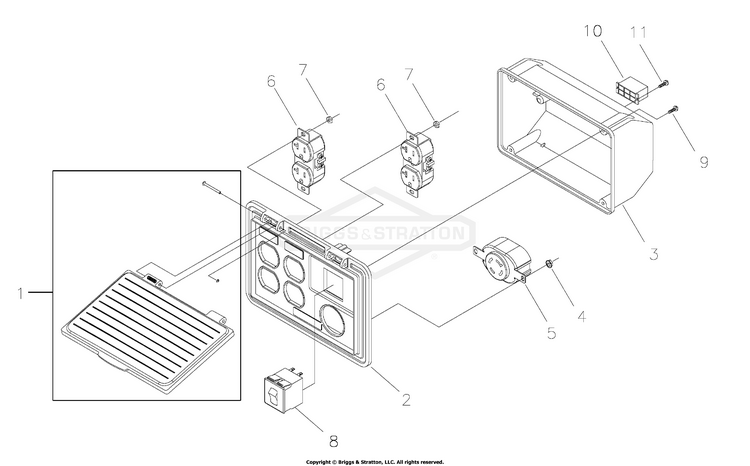

Control Panel (196798)

...
...
1
Assy, Control Lid Panel BS-195112GS
...
2
Assy, Control Panel BS-196796GS
...
3
Box, Rear Cover BS-188890GS
...
5
Outlet, 120/240 Locking, 20A BS-68867GS
...
6
Outlet, 120V, 15Amp, Duplex BS-63025GS
...
8
BREAKER-CIRCUIT 15A BS-202027GS
...
9
Screw, Tapping, 3.5 x 14 BS-192241GS
...
10
Housing, Receptacle BS-22694GS
...
11
Screw, Tapping, STC 3 x 18 BS-82308GS

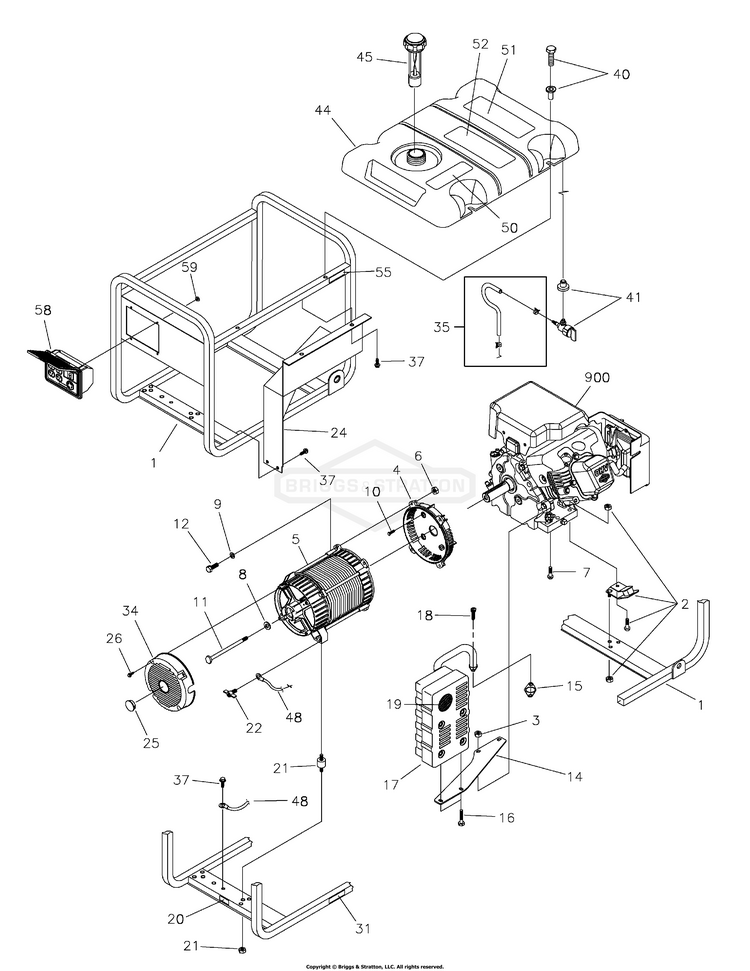

Main Unit (196755)

...
...
1
Kit, Cradle (Includes 20, 31 & 55) BS-M194779GS
...
2
Mount, Vibration BS-194150GS
...
3
Nut, M8 Flange Serrated BS-67989GS
...
4
Housing, Engine Adapter BS-186058AGS
...
5
Assy, Alternator See Alternator BS-~NSP
...
7
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
8
Washer, 8.4 x 22.2 x 3 BS-96796GS
...
11
HHCS, 5/16-24 x 7-7/8" BS-24823GS
...
14
Bracket, Muffler BS-191785GS
...
15
GASKET-EXHAUST BS-692237
...
17
Muffler BS-188301GS
...
19
Screen, Spark Arrest BS-83083GS
...
20
Decal, Ground BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
Screw, Wing M6 - 1.0 x 16 BS-86494GS
...
24
Shield, Heat BS-191790GS
...
25
Cap BS-191190GS
...
26
Taptite, M5-0.8 x 10 BS-74908GS
...
31
Decal, Caution Hot Muffler BS-191436GS
...
34
Cover, RBC, Plastic w/Cap BS-195422GS
...
35
Kit, Hose Formed BS-195207GS
...
37
HHCS, 12 - 14 x 7/8" Self Driller BS-B2153GS
...
40
Kit, Fuel Tank Hardware (Includes Qty 4) BS-194398GS
...
41
Kit, Valve, Tank Fuel Service BS-192980GS
...
44
Assy., Tank, Fuel (Includes Items 41, 50, 51, 52) BS-197553GS
...
45
Gauge, Fuel BS-B4363GS
...
48
Wire, Ground BS-195373GS
...
50
Decal, Fuel Level BS-191437GS
...
51
Decal, Warning BS-197157GS
...
52
Decal, Operating Instructions BS-189235GS
...
55
Decal, Fuel Shut Off BS-197798GS
...
58
Assy, Control Panel BS-196796GS
...
xx
Manual, Operator's Parts Not Illustrated BS-196382GS
...
xx
PLUG-120/240V TL20A Parts Not Illustrated BS-100522GS
...
xx
Kit, Decals Service Parts Not Illustrated BS-197554GS
...
...
...
...
...
