030211-1 Briggs and Stratton Generator 6,200 Watt

Model: 030211-1

Save
 Part Not Listed?Part Not Listed?
product name

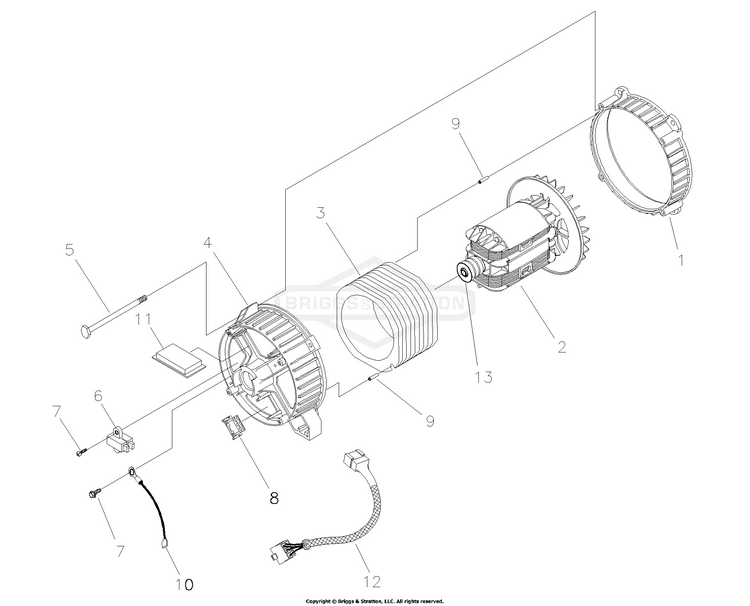

Alternator (194087)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR (Includes Item 13) BS-191876GS
...
3
STATOR BS-194006AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCJ., M6 - 1.0 x 140 HEMS BS-86308HGS
...
6
ASSY, Holder, Brush BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
ASSY, Wire, Ground BS-193428AGS
...
11
BOARD, Circuit, System Control BS-205858GS
...
12
HARNESS, Wire, Power BS-194274GS
...
13
BEARING BS-65791GS

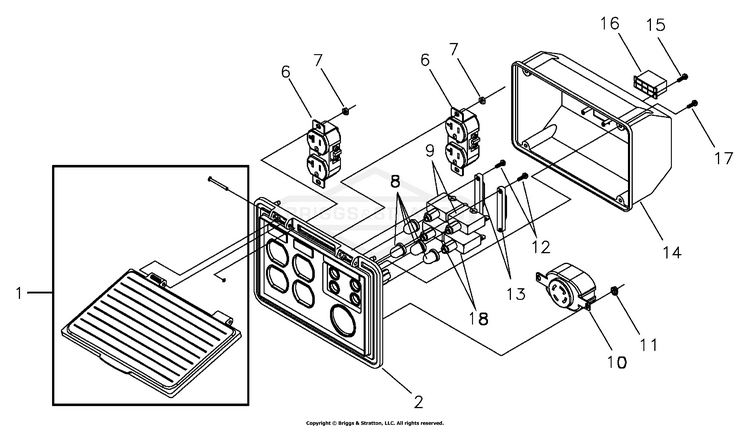

Control Panel (191780)

...
...
1
KIT, Control Panel Lid BS-195112GS
...
2
CONTROL PANEL, Compact BS-191450GS
...
6
OUTLET, 120V, 20A, Duplex BS-68759GS
...
8
CAP, Breaker, Circuit BS-84198GS
...
9
BREAKER-CIRCUIT 30A BS-706178
...
10
OUTLET, 120/240V Locking, 30A BS-43437GS
...
13
BAR, Retaining BS-93857GS
...
14
COVER, Back, Control Panel BS-188890GS
...
15
SCREW, Tapping, STC 3 x 18 BS-82308GS
...
16
HOUSING, Receptacle BS-22694GS
...
17
SCREW, Tapping, 3.5 x 14 BS-192241GS
...
18
BREAKER-CIRCUIT 25A BS-706175

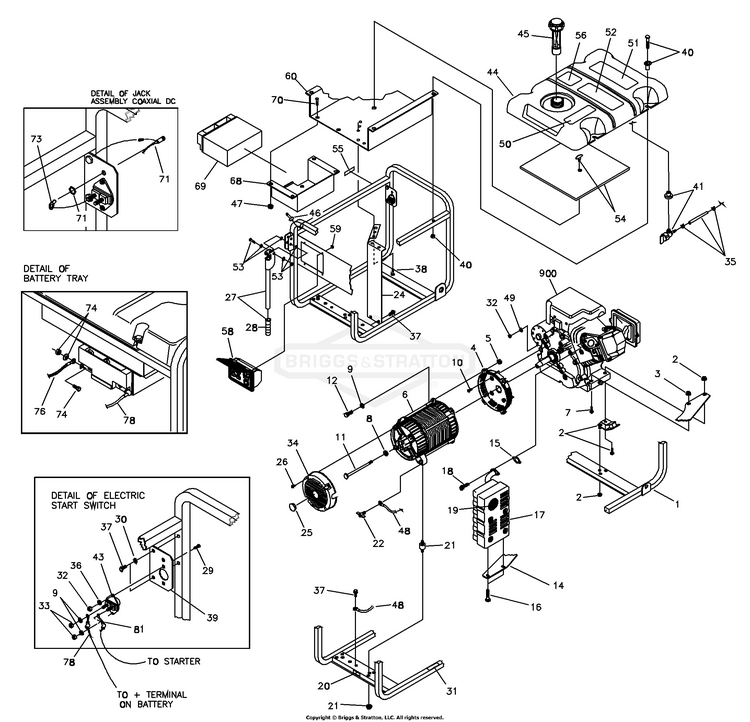

Main Unit (196820)

...
...
1
CRADLE BS-197464BNGS
...
2
KIT, Vibration Mount BS-194150GS
...
4
HOUSING, Engine Adapter BS-190220GS
...
6
ASSY, Alternator (see page 4) BS-~NSP
...
8
WASHER, 8.4 x 22.2 x 3 BS-96796GS
...
10
SBHCS, 3/8-16 x 7/8 BS-190274DGS
...
11
HHCS, 5/16-24 x 7.44 BS-187365FGS
...
14
BRACKET, Muffler BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW, Wing M6 - 1.0 x 16 BS-86494GS
...
24
SHIELD, Heat BS-194390GS
...
25
CAP BS-191190GS
...
26
TAPTITE, M5-0.8 x 10 BS-74908GS
...
27
ASSY, Handle/Grip BS-B193200GS
...
28
GRIP BS-198669GS
...
31
DECAL, Hot Muffler BS-196830GS
...
34
COVER, RBC w/Cap BS-195422GS
...
35
LINE, Fuel BS-791745
...
37
SCREW, 12-14 x 7/8 Self Drilling BS-B2153GS
...
38
SCREW, 10-24 x 1/2 Crimptite BS-56893GS
...
39
PLATE, Mounting Switch BS-188987GS
...
40
KIT, Hardware Tank Fuel (Includes Qty 4) BS-195477GS
...
41
KIT, Valve, Tank BS-192980GS
...
43
SWITCH, Starter BS-77282GS
...
44
ASSY., Tank, Fuel (Includes Items 41, 50, 51, 52 & 56) BS-194217GS
...
45
CAP, Fuel Gauge BS-B4363GS
...
46
PIN BS-B4135GS
...
47
NUT, M6 Flange Lock BS-77395GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Instruction, Fuel Level BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
53
KIT, Handle Fold-down Hardware BS-194034GS
...
54
KIT, Insulation with Clip BS-194448GS
...
55
DECAL, Fuel Shut-off BS-197798GS
...
56
DECAL, CO Warning BS-202997GS
...
58
ASSY, Control Panel BS-191757GS
...
60
HEATSHIELD BS-208564GS
...
68
TRAY, Battery BS-195680GS
...
69
BATTERY BS-193043GS
...
71
ASM, Jack, DC BS-192531GS
...
73
LUG, 5/16 #22/18 I-S BS-58359GS
...
74
KIT, Battery Hardware BS-193347GS
...
76
WIRE ASM, #55 BS-185939KGS
...
78
WIRE ASM, #13 BS-189302CGS
...
81
WIRE ASM, #16 BS-189302GGS
...
xx
MANUAL, Engine, B&S Parts Not Illustrated BS-MS3430
...
xx
MANUAL, Operator’s Parts Not Illustrated BS-195529GS
...
xx
BOTTLE, Oil Parts Not Illustrated BS-BB3061GS
...
xx
CHARGER, Battery Parts Not Illustrated BS-84002790
...
xx
DECAL, Family, CA EVP Parts Not Illustrated BS-202180GS
...
xx
KIT, Decals Service Parts Not Illustrated BS-195578GS

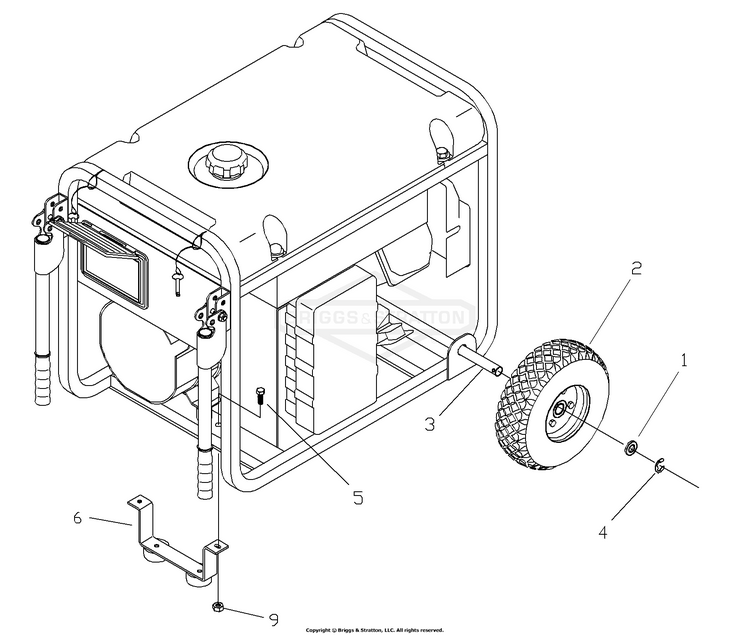

Wheel Kit (190312)

...
...
2
WHEEL BS-209636GS
...
3
AXLE BS-191267GGS
...
4
E-RING BS-703977
...
6
ASSY, Support w/Mounts BS-204536GS
...
9
NUT, M8 - Flange Serrated BS-67989GS
...
--
SUBKIT, Hardware Parts Not Illustrated BS-187046GS

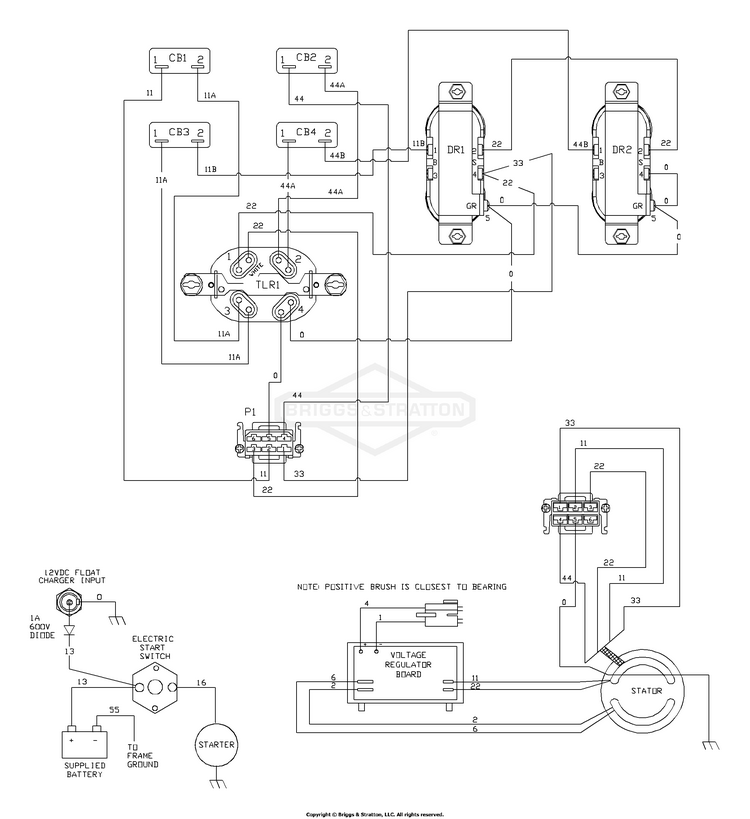

Wiring Diagram (196817WD)

...

No Parts Available for this Schematic

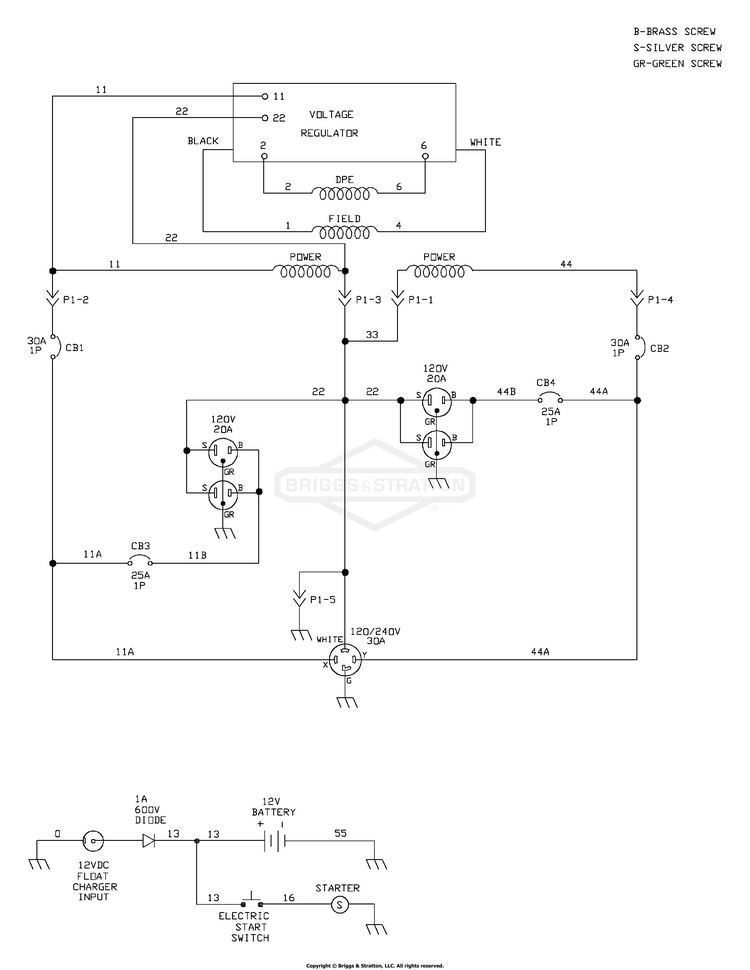

Wiring Schematic (196817WS)

...

No Parts Available for this Schematic

...
...
...
...
...
