030210-1 Briggs and Stratton Generator 7,500 Watt

Model: 030210-1

Save
 Part Not Listed?Part Not Listed?
product name

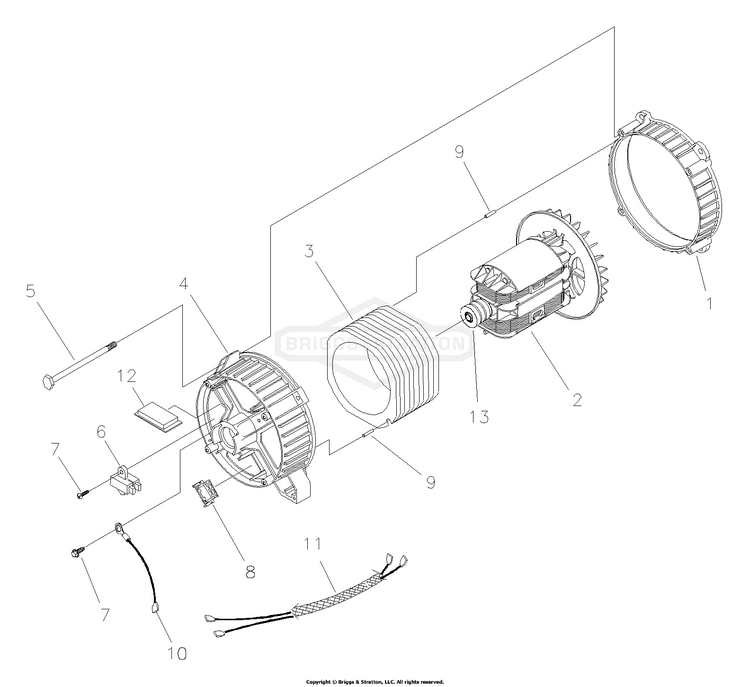

Alternator (196476)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-196707GS
...
3
STATOR BS-196706AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 140 SEMS BS-86308KGS
...
6
ASSY, Holder, Brush BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
ASSY, Wire, Ground BS-193428AGS
...
11
HARNESS, Power,T.D.R. BS-196708GS
...
12
BOARD, Circuit, System Control BS-205858GS
...
13
BEARING BS-65791GS

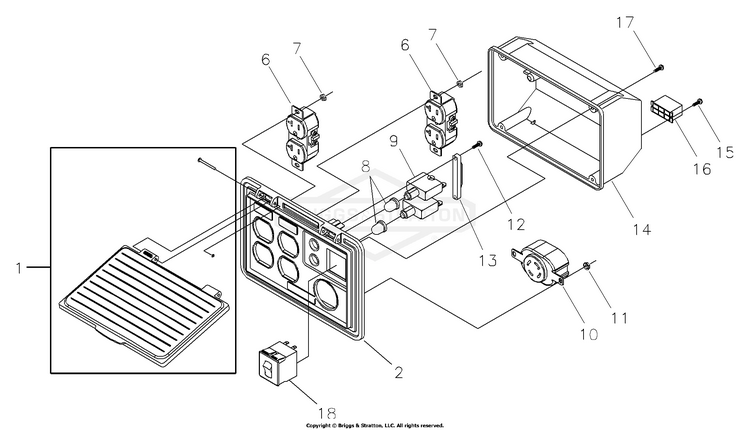

Control Panel (195695)

...
...
1
ASSY, Control Lid Panel BS-195112GS
...
2
CONTROL PANEL, Compact BS-192273DGS
...
6
OUTLET, 120V, 20A, Duplex BS-68759GS
...
8
CAP, Breaker, Circuit BS-84198GS
...
9
BREAKER-CIRCUIT 20A BS-209872GS
...
10
OUTLET, 120/240V Locking, 30A BS-43437GS
...
13
BAR, Retaining BS-93857GS
...
14
BOX, Rear Cover BS-192274GS
...
15
SCREW, Tapping, STC 3 x 18 BS-82308GS
...
16
HOUSING, Receptacle BS-22694GS
...
17
SCREW, Tapping, 3.5 x 14 BS-192241GS
...
18
BREAKER, Circuit, 30A BS-192785GS

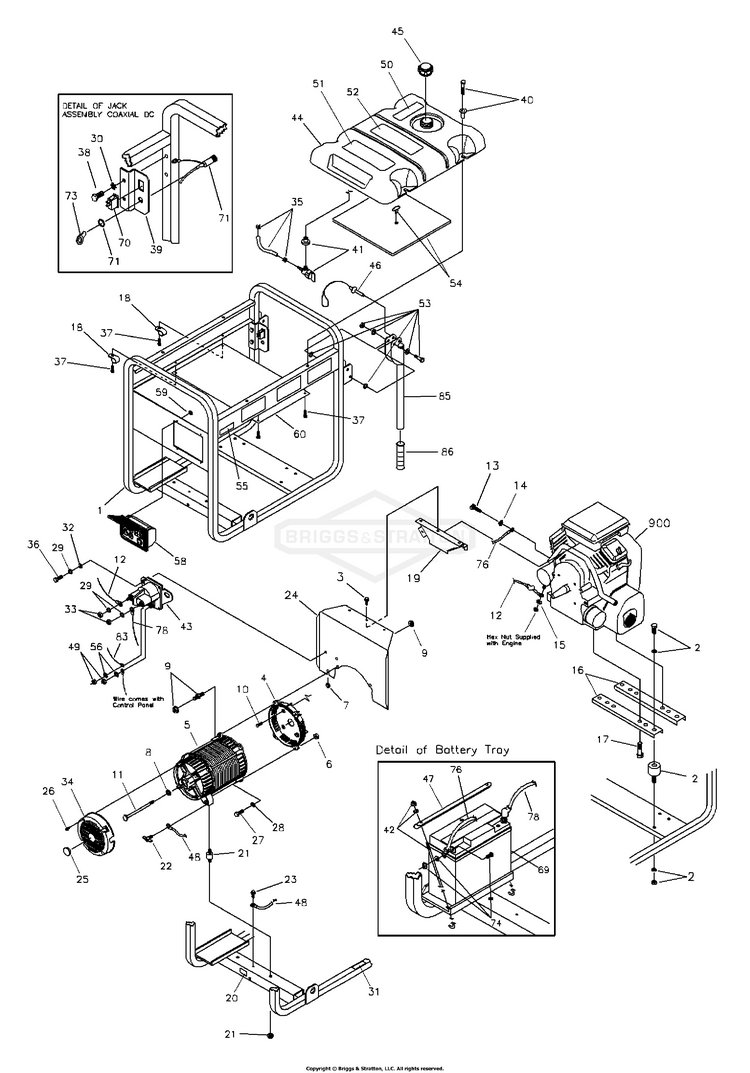

Main Unit (196380)

...
...
1
CRADLE BS-M196373GS
...
2
KIT, Engine Support Hardware BS-194526GS
...
3
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
4
ADAPTER, Engine BS-190220GS
...
5
ASSY, Alternator (see "Alternator") BS-~NSP
...
7
GROMMET BS-62265GS
...
8
WASHER BS-96796GS
...
9
KIT, Alt to Heat Shield Hardware BS-194208GS
...
10
SCREW, SBHC, 3/8-16 x 1" BS-190274BGS
...
11
HHCS, 5/16 - 24 x 9.29 BS-187365CGS
...
12
ASSY, Wire, #16, Red BS-189302BGS
...
16
SUPPORT, Engine BS-M77304GS
...
17
SCREW-HEX WSHR HD TAP BS-2828635SM
...
18
CLAMP, Hose BS-55934TGS
...
19
SUPPORT, Heatshield BS-J93074GS
...
20
DECAL, Ground BS-B4986GS
...
21
KIT, Vibration Mount BS-194155GS
...
22
SCREW, Wing M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
24
ASSY, Heat Shield BS-J194951GS
...
25
CAP BS-191190GS
...
26
TAPTITE, M5 - 0.8 x 10 BS-74908GS
...
31
DECAL, Caution Hot Muffler BS-196830GS
...
34
COVER, RBC Plastic with Cap BS-195422GS
...
35
LINE, Fuel BS-791745
...
37
SCREW, Self Driller, 12-14 x 7/8 BS-B2153GS
...
38
SCREW, 10-16 x .68 Self Drill BS-195094GS
...
39
ASSY, Switch Starter BS-196492GS
...
40
KIT, Fuel Tank Hardware (Includes Qty of 4) BS-194398GS
...
41
VALVE, Fuel BS-192980GS
...
42
KIT, Hardware J-Bolt BS-193986GS
...
43
CONTACTOR, Starter BS-B4769GS
...
44
ASSY, Tank Fuel (Includes Items 41, 50, 51 & 52) BS-194217GS
...
45
CAP, Fuel Gauge BS-B4363GS
...
46
PIN, Handle Release BS-B4135GS
...
47
BRACKET, Battery Hold Down BS-M96925GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Instruction Fuel Level BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
53
KIT, Folddown Handle Hardware BS-194034GS
...
54
KIT, Insulation w/ clip BS-196725GS
...
55
DECAL, Fuel Shutoff BS-197798GS
...
58
ASSY, Control Panel (see "Control Panel") BS-195661AGS
...
59
PALNUT, 3/16 BS-189164GS
...
60
SHEILD, Heat BS-196527GS
...
69
BATTERY BS-193043GS
...
70
SWITCH, Rocker On/Off BS-192855GS
...
71
ASSY, Jack, Coax, DC BS-196659GS
...
73
LUG, 5/16, #22/18 BS-58359GS
...
74
KIT, Hardware Battery BS-193347GS
...
76
ASSY, Wire, #55 Blk BS-185939KGS
...
78
ASSY, Wire, #13 Red BS-189302KGS
...
83
ASSY, Wire, 18 AWG, Red, 3.5" BS-192403YGS
...
85
ASSY, Fold Down Handle (Includes Item 86) BS-B193200GS
...
86
GRIP, Handle BS-198669GS
...
MANUAL, Operator's Not Illustrated BS-196377GS
...
MANUAL, Engine Not Illustrated BS-MS5375
...
BOTTLE, Oil Not Illustrated BS-100005
...
CHARGER, Battery Not Illustrated BS-84002790
...
KIT, Decal Service Not Illustrated BS-197005GS
...
SCREW Not Illustrated BS-690661
...
ARRESTOR, Spark Not Illustrated BS-794945
...
ASSY, Muffler Not Illustrated BS-692099
...
BRACKET, Muffler Not Illustrated BS-691513
...
SCREW Not Illustrated BS-692056
...
CLAMP, Muffler Not Illustrated BS-690898
...
SCREW Not Illustrated BS-841233
...
Front Draw Bar w/Spindles-RH Side Optional Accessories Not Illustrated BS-100126

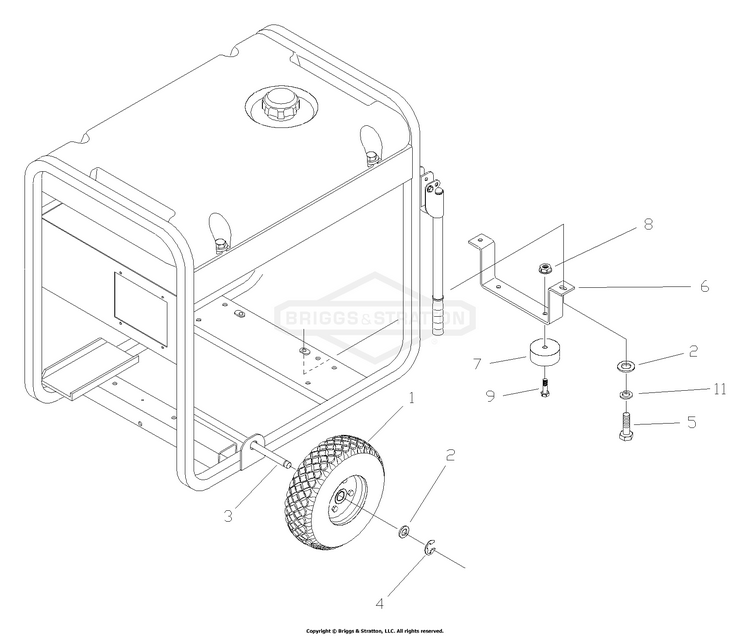

Wheel Kit (196467)

...
...
1
WHEEL BS-209636GS
...
3
AXLE, 5/8" BS-191267JGS
...
4
E-RING BS-703977
...
6
SUPPORT, Wheel Kit BS-B186927GS
...
7
MOUNT, Vibration BS-87841GS
...
8
NUT, M6 Flange Lock BS-77395GS

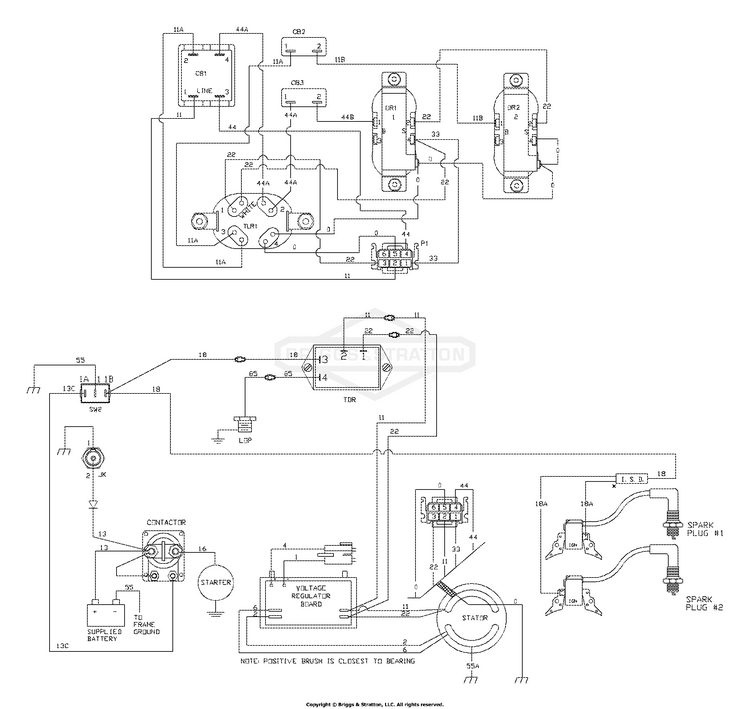

Wiring Diagram (195699)

...

No Parts Available for this Schematic

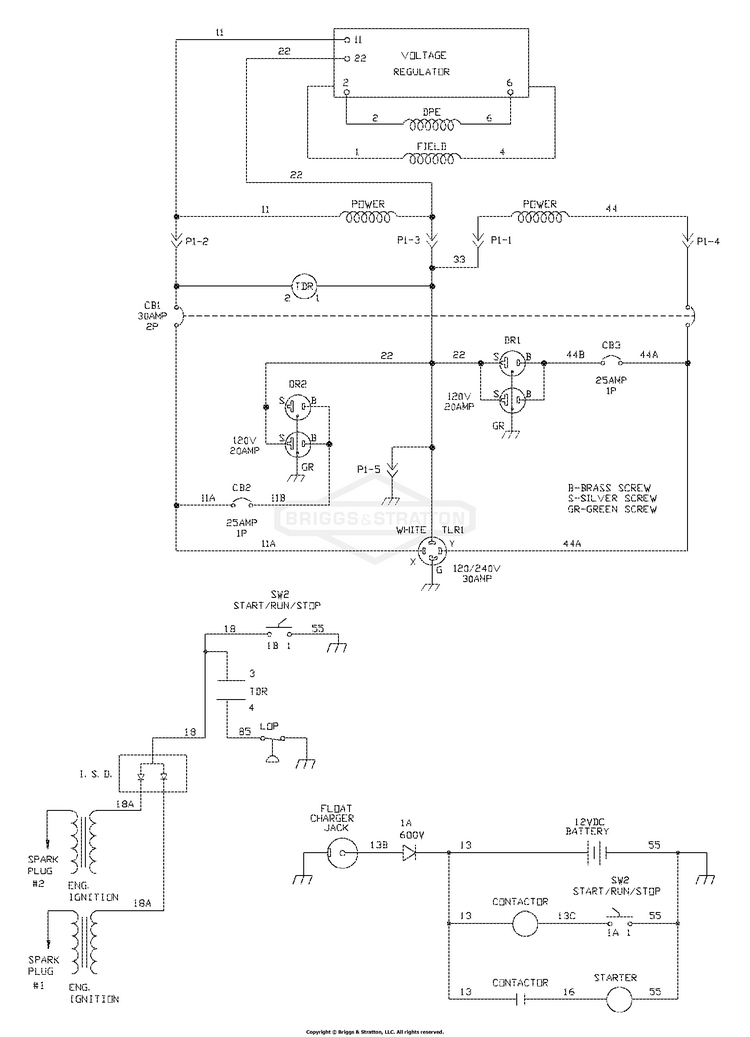

Wiring Schematic (195699)

...

No Parts Available for this Schematic

...
...
...
...
...
