030209-0 Briggs and Stratton Generator 5,500 Watt

Model: 030209-0

Save
 Part Not Listed?Part Not Listed?
product name

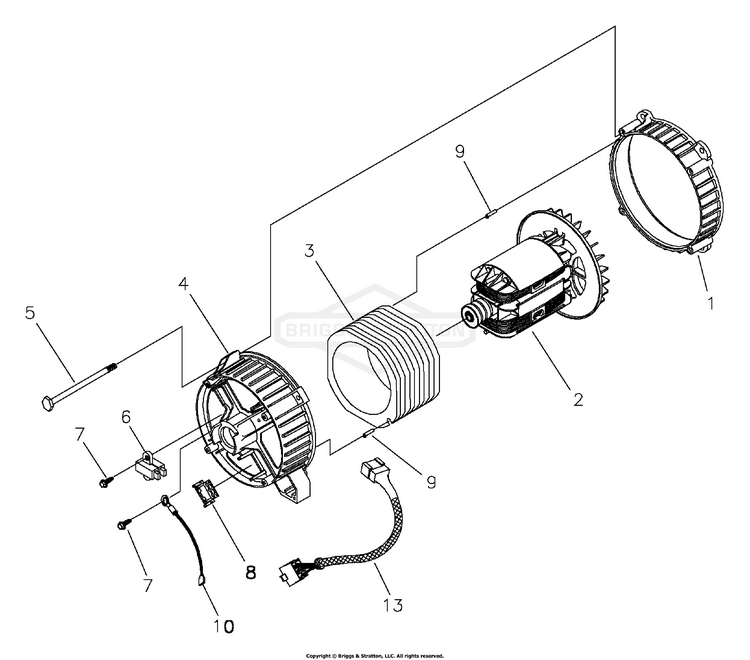

Alternator (191171)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-190032GS
...
3
STATOR BS-190079AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 140 SEMS BS-86308HGS
...
6
ASSY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
ASSY,Wire, Ground BS-193428AGS
...
13
HARNESS,Wire, Power BS-194274GS
...
--
O-RING, 1.375 N I.D. X .093 IN BS-189197GS

Control Panel (189442)

...
...
1
KIT, Control Panel Lid BS-195112GS
...
2
CONTROL PANEL, Compact BS-188889GS
...
6
OUTLET, 120V, 20A, Duplex BS-68759GS
...
8
CAP, Breaker, Circuit BS-84198GS
...
9
BREAKER-CIRCUIT 20A BS-209872GS
...
10
OUTLET, 120/240V Locking, 30A BS-43437GS
...
13
BAR, Retaining BS-93857GS
...
14
COVER, Back, Control Panel BS-188890GS
...
15
SCREW, Self Tapping, STC 3 x 18 BS-82308GS
...
16
HOUSING, Receptacle BS-22694GS

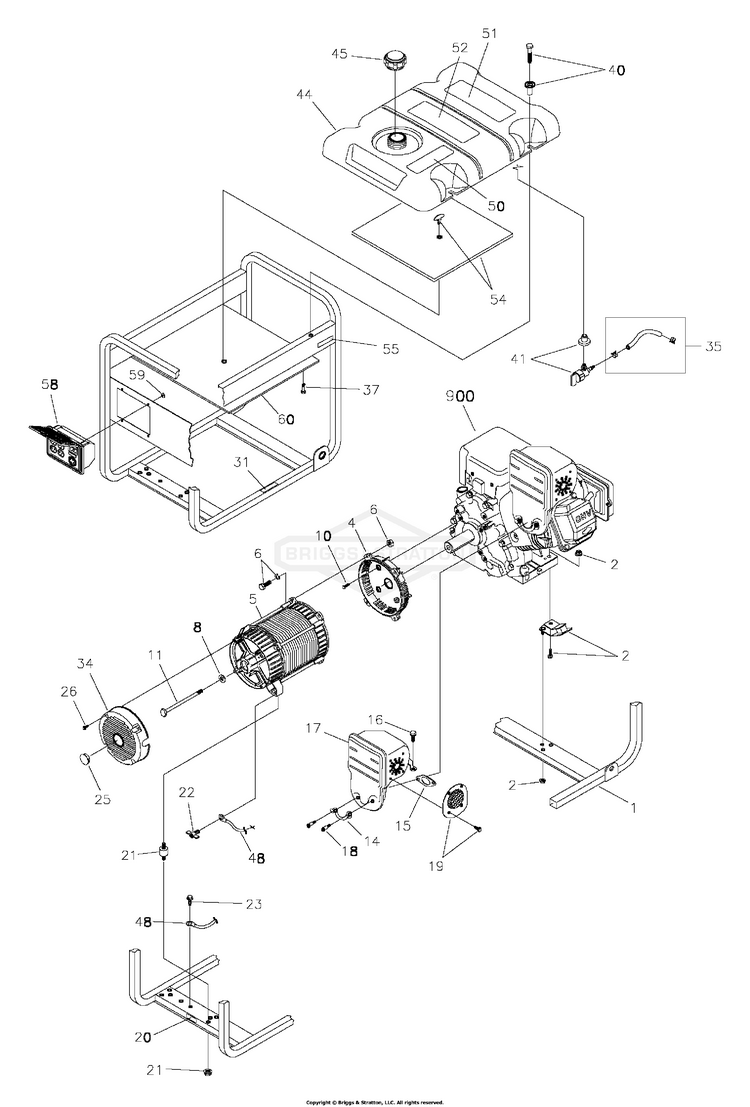

Main Unit (195562)

...
...
1
CRADLE BS-M195451GS
...
2
KIT,Vibration Mount 45°. BS-194150GS
...
4
HOUSING, Engine Adapter BS-190220GS
...
5
ASSY,Alternator (see "Alternator") BS-~NSP
...
6
KIT, Hardware Mounting Adapter BS-194151GS
...
8
WASHER, M8 Flat BS-96796GS
...
10
SBHCS, 3/8-16 x 1.0 Lg. BS-190274BGS
...
11
HHCS, 5/16-24 x 7-7/16 BS-187365FGS
...
14
TAB, Locking BS-695400
...
15
GASKET, Muffler BS-794818
...
16
SCREW BS-695312
...
17
MUFFLER BS-794949
...
18
SCREW, Shoulder BS-695399
...
19
ARRESTOR, Spark BS-794945
...
20
DECAL, Ground, Green BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW,Wing, M6 - 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
25
CAP BS-191190GS
...
26
SCREW, M5-0.8 x 10,Taptite BS-74908GS
...
31
DECAL, Hot Muffler BS-191436GS
...
34
COVER, Bearing Carrier BS-195422GS
...
35
LINE, Fuel BS-791745
...
37
SCREW, 12-14 x 7/8 Self Drilling BS-B2153GS
...
40
KIT, Fuel Tank Hardware BS-194398GS
...
41
KIT,Valve,Tank BS-192980GS
...
44
ASSY,Tank, Fuel (Includes Items 41, 50, 51 & 52) BS-194217GS
...
45
CAP, Fuel BS-90878GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Gas Fill BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
54
KIT, Insulation w/ Clip BS-194448GS
...
55
DECAL, Fuel Shut-off BS-191435GS
...
58
ASSY, Control Panel (see "Control Panel") BS-190355GS
...
60
SHIELD, Heat BS-193452GS
...
BOTTLE, Oil Not Illustrated BS-BB3061GS
...
MANUAL, Owners Not Illustrated BS-195447GS
...
MANUAL, Engine Not Illustrated BS-MS5242
...
KIT, Decals, Service Not Illustrated BS-195574GS

Wheel Kit (194555)

...
...
1
ASSY, Handle (Includes Item 3) BS-189715GS
...
3
GRIP BS-198669GS
...
4
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
5
AXLE, 1/2" x 22.20" BS-192006AGS
...
6
WHEEL BS-197061GS
...
7
RETAINER, RING, 1/2 BS-703976
...
9
SUPPORT,Wheel Kit BS-B187101GS
...
11
NUT, M8 Flange Serrated BS-67989GS

Wiring Diagram (190536)

...

No Parts Available for this Schematic

Wiring Schematic (190536)

...

No Parts Available for this Schematic

...
...
...
...
...
