030208-0 Briggs and Stratton Generator 3,500 Watt

Model: 030208-0

Save
 Part Not Listed?Part Not Listed?
product name

Alternator (191750)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-191685GS
...
3
STATOR BS-191686AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 115 SEMS BS-86308GS
...
6
ASSY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
ASSY,Wire, Ground BS-193428AGS
...
13
HARNESS,Wire, Power BS-194274GS
...
14
BEARING BS-65791GS

Control Panel (191751)

...
...
1
KIT, Cover Control Panel BS-195112GS
...
2
CONTROL PANEL, Compact BS-188889AGS
...
6
OUTLET, 120V, 20Amp, Duplex BS-68759GS
...
8
CAP, Breaker, Circuit BS-84198GS
...
9
BREAKER, Circuit BS-75207DGS
...
10
OUTLET, 120/240V Locking, 20A BS-68867GS
...
13
BAR, Retaining BS-93857GS
...
14
COVER, Back, Control Panel BS-188890GS
...
16
HOUSING, Receptacle BS-22694GS

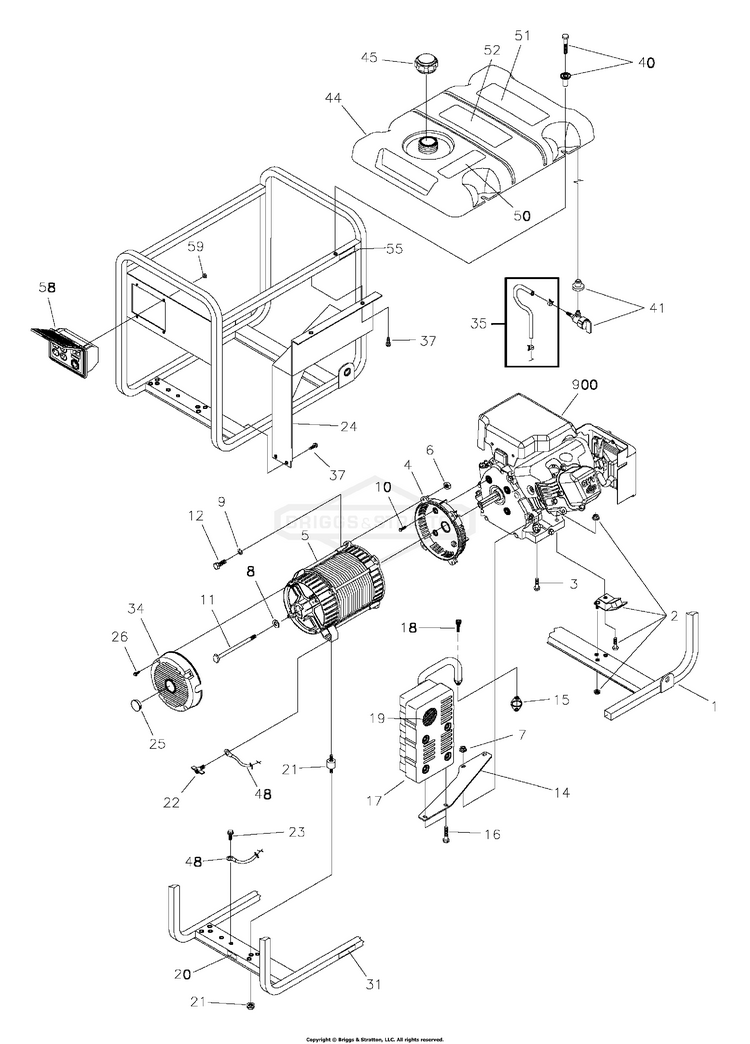

Main Unit (195563)

...
...
1
CRADLE BS-M194779GS
...
2
KIT, Vibration Mount BS-194150GS
...
4
HOUSING, Engine Adapter BS-186058AGS
...
5
ASSY, Alternator (see "Alternator") BS-~NSP
...
8
WASHER, M8 Flat BS-96796GS
...
10
HHCS, 5/16-24 x 3/4,SEMS BS-86307GS
...
11
HHCS, 5/16-24 x 7-7/8" Lg BS-24823GS
...
14
BRACKET, Muffler BS-191785GS
...
15
GASKET-EXHAUST BS-692237
...
17
MUFFLER BS-188301GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground BS-B4986GS
...
22
SCREW,Wing M6 - 1.0 x 16 BS-86494GS
...
21
MOUNT-VIBRATION BS-194153GS
...
23
SCREW BS-313085GS
...
24
SHIELD, Heat BS-191790GS
...
25
CAP BS-191190GS
...
26
TAPTITE, M5-0.8 x 10 Lg. BS-74908GS
...
31
DECAL, Caution Hot Muffler BS-196830GS
...
34
COVER, RBC with Cap BS-195422GS
...
35
KIT, Fuel Hose with Clamp BS-195207GS
...
37
HHCS, 12 - 14 x 7/8" Self Driller BS-B2153GS
...
40
KIT, Fuel Tank Hardware (Includes Qty of 4) BS-194398GS
...
41
KIT, Valve,Tank BS-192980GS
...
44
ASSY, Tank, Fuel (Includes Items 41, 50, 51 & 52) BS-193645GS
...
45
CAP, Fuel Tank BS-846987
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Fuel Level BS-188333GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Operating Instructions BS-189235GS
...
55
DECAL, Fuel Shut Off BS-197798GS
...
58
ASSY, Control Panel (see "Control Panel") BS-191743AGS
...
MANUAL, Operator's Not Illustrated BS-195432GS
...
MANUAL, Engine Not Illustrated BS-MS3430
...
BOTTLE, Oil Not Illustrated BS-BB3061GS
...
KIT, Decals, Service Not Illustrated BS-195576GS
...
Front Draw Bar w/Spindles-RH Side Optional Accessories BS-100126

Wheel Kit (191756)

...
...
1
ASSY, Handle (Includes Item 11) BS-189715GS
...
2
LEG, Mounting BS-94034GS
...
3
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
5
AXLE BS-93728GS
...
6
WHEEL BS-197061GS
...
7
PIN, 3/32 X 1.6 BS-703300
...
9
NUT, 5/8 - 18 Jam Lock BS-94222QGS
...
11
GRIP BS-198669GS
...
--
SUBKIT, Hardware (Not Illustrated) BS-191932GS

Wiring Diagram (191562)

...

No Parts Available for this Schematic

Wiring Schematic (191562)

...

No Parts Available for this Schematic

...
...
...
...
...
