030206-0 Briggs and Stratton Generator 5,500 Watt

Model: 030206-0

Save
 Part Not Listed?Part Not Listed?
product name

Alternator (192518)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-190032GS
...
3
STATOR BS-190079AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCJ., M6 - 1.0 x 140 HEMS BS-86308HGS
...
6
ASSEMBLY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
WIRE-A, Ground BS-193428AGS
...
13
HARNESS, Wire, Power BS-194274GS
...
14
BEARING BS-65791GS

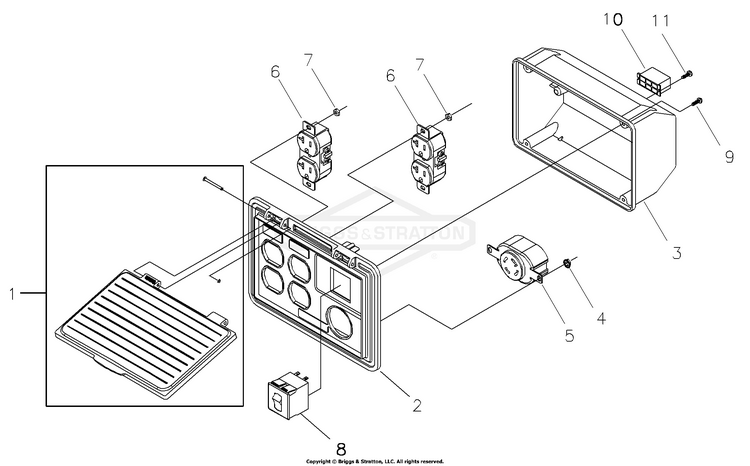

Control Panel (196230)

...
...
1
ASSY, Control Lid Panel BS-195112GS
...
2
CONTROL PANEL, Compact BS-196506AGS
...
3
BOX, Rear Cover BS-188890GS
...
5
OUTLET, 120/240 Locking, 30A BS-43437GS
...
6
OUTLET, 120V, 20Amp, Duplex BS-68759GS
...
8
BREAKER, 20, 2P BS-202029GS
...
9
SCREW, Tapping, 3.5 x 14 BS-192241GS
...
10
HOUSING, Receptacle BS-22694GS
...
11
SCREW, Tapping, STC 3 x 18 BS-82308GS

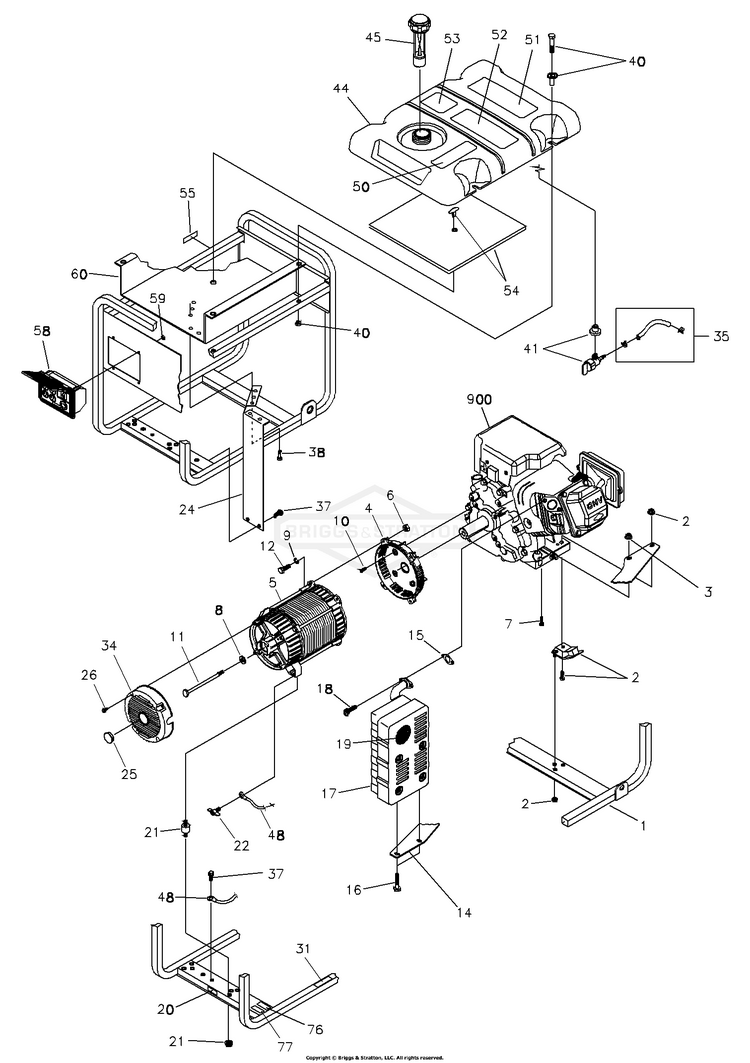

Main Unit (196850)

...
...
1
CRADLE (Includes #’s 20, 31, 55, 76 and 77) BS-M196923GS
...
2
KIT, Vibration Mount 45° BS-194150GS
...
3
NUT, M8 Flange Serrated BS-67989GS
...
4
HOUSING, Engine Adapter BS-190220GS
...
5
ASSY, Alternator (see page 5) BS-~NSP
...
8
WASHER, 8.4 x 22.2 x 3 BS-96796GS
...
10
SBHCS, 3/8-16 x 1.0 Lg BS-190274BGS
...
11
HHCS, 5/16-24 x 7-7/16 BS-187365FGS
...
14
BRACKET, Muffler BS-189009GS
...
15
GASKET, Exhaust BS-695398
...
17
MUFFLER BS-189008GS
...
18
SHCS, 5/16 - 18 x 7/8" BS-201522GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground, Green BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW, Wing M6 - 1.0 x 16 BS-86494GS
...
24
SHIELD, Heat BS-194390GS
...
25
CAP BS-191190GS
...
26
SCREW, M5-0.8 x 10, Taptite BS-74908GS
...
31
DECAL, Warning, Exhaust BS-200310GS
...
34
COVER, RBC, Plastic w/cap BS-195422GS
...
35
LINE, Fuel BS-791745
...
37
SCREW, 12-14 x 7/8 Self Drilling BS-B2153GS
...
38
SCREW, 10-24 x 1/2 Crimptite BS-56893GS
...
40
KIT, Fuel Tank Hardware (Includes Qty of 4) BS-195477GS
...
41
KIT, Valve, Tank BS-192980GS
...
44
ASSY., Tank, Fuel 7-Gallon (Includes #’s 41, 50, 51, 52 & 53) BS-197303GS
...
45
CAP, Fuel Gauge BS-B4363GS
...
48
WIRE, Ground BS-195373GS
...
50
DECAL, Gas Fill BS-188333GS
...
51
DECAL, Warning BS-194984GS
...
52
DECAL, Start Instructions BS-94480GS
...
53
DECAL, Warning CO BS-202997GS
...
54
KIT, Insulation w/Clip BS-194448GS
...
55
DECAL, Fuel Shut-off BS-197798GS
...
58
ASSY, Control Panel BS-202530GS
...
59
NUT, Palnut, 3/16" BS-189164GS
...
60
HEATSHIELD BS-208564GS
...
76
DECAL, Neutral Ground, French BS-195940GS
...
77
DECAL, Ground Neutral BS-195459GS
...
xx
BOTTLE, Oil Parts Not Illustrated BS-BB3061GS
...
xx
MANUAL, Operator’s Parts Not Illustrated BS-196849GS
...
xx
MANUAL, Engine Parts Not Illustrated BS-MS3790
...
xx
DECAL, Family, CA, EVP Parts Not Illustrated BS-202180GS
...
xx
KIT, Decals, Service Parts Not Illustrated BS-197301GS

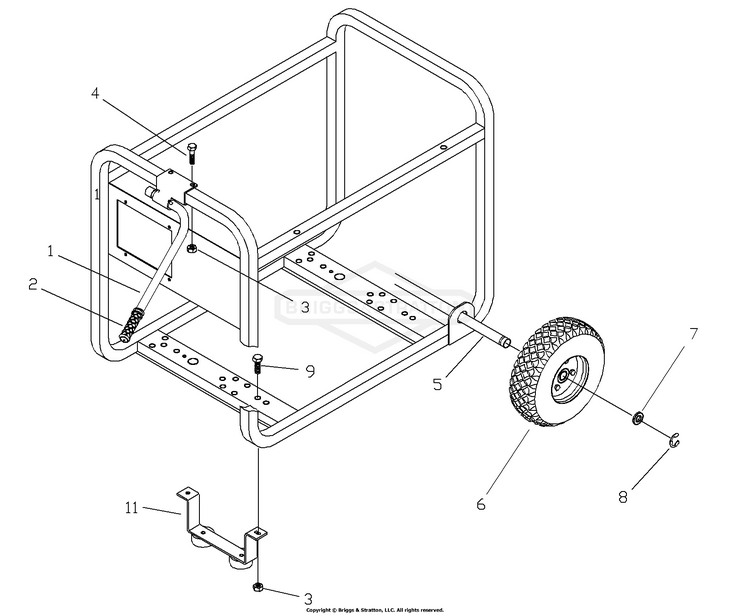

Wheel Kit (189833)

...
...
1
ASSY, Handle w/Grip BS-189715GS
...
2
GRIP BS-198669GS
...
3
NUT, M8 Flange Serrated BS-67989GS
...
5
AXLE BS-191267GGS
...
6
WHEEL BS-209636GS
...
8
E-RING BS-703977
...
11
ASSY, Support, w/Mounts BS-204536GS
...
--
SUBKIT, Hardware Part Not Illustrated BS-189738GS

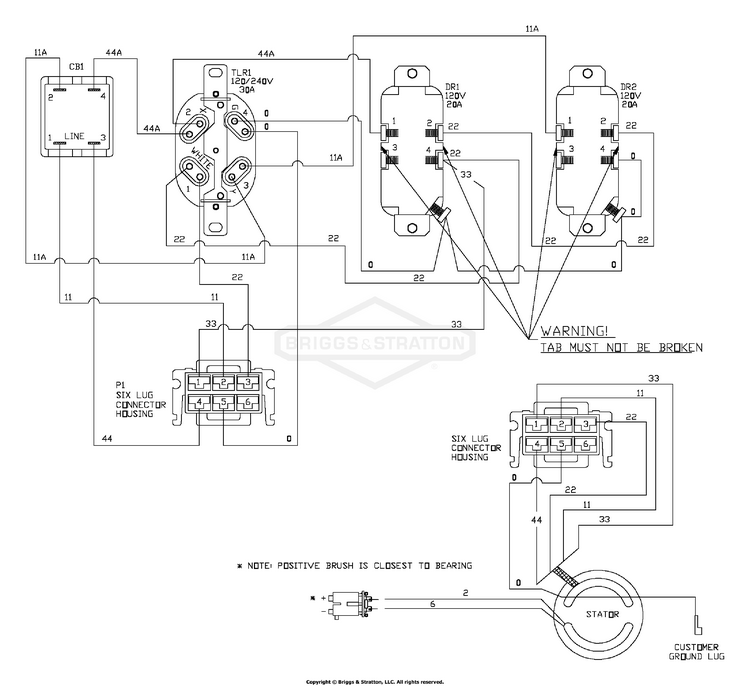

Wiring Diagram (196808)

...

No Parts Available for this Schematic

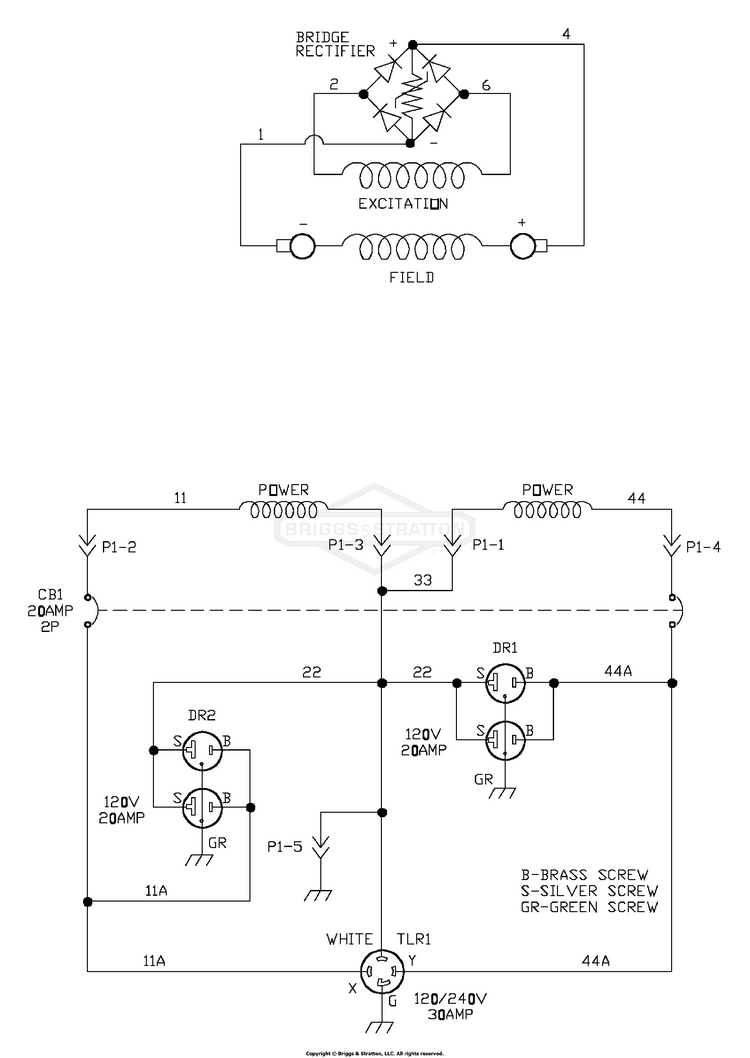

Wiring Schematic (196808)

...

No Parts Available for this Schematic

...
...
...
...
...
