030205-0 Briggs and Stratton Generator 5,800 Watt

Model: 030205-0

Save
 Part Not Listed?Part Not Listed?
product name

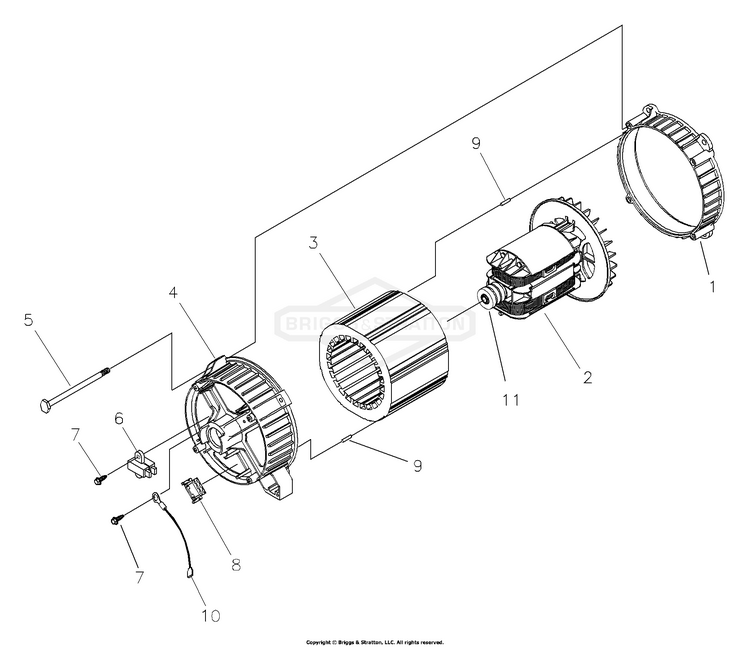

Alternator (199732)

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR (Includes Item 11) BS-199859GS
...
3
STATOR BS-190079AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 140 SEMS BS-86308HGS
...
6
ASSY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
ASSY,Wire, Ground BS-193428AGS
...
11
BEARING BS-65791GS

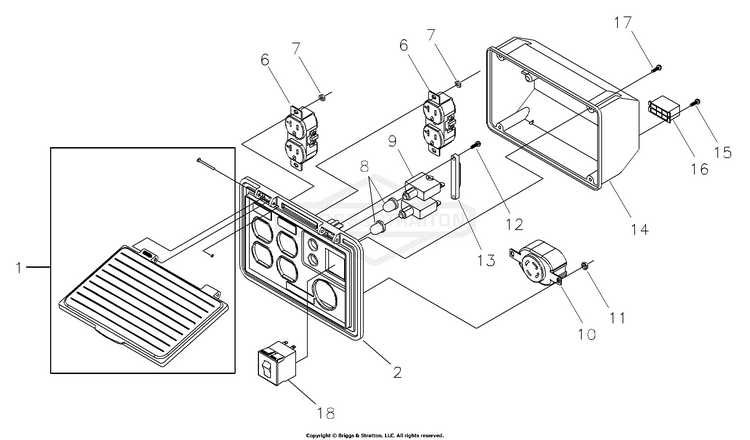

Control Panel (199731)

...
...
1
ASSY, Control Lid Panel BS-195112GS
...
2
PANEL, Control, Compact BS-192273EGS
...
6
OUTLET, 120V, 20A, Duplex BS-68759GS
...
8
CAP, Breaker, Circuit BS-84198GS
...
9
BREAKER-CIRCUIT 25A BS-706175
...
10
OUTLET, 120/240V Locking, 30A BS-43437GS
...
13
BAR, Retaining BS-93857GS
...
14
BOX, Rear Cover BS-192274GS
...
15
SCREW,Tapping, STC 3 x 18 BS-82308GS
...
16
HOUSING, Receptacle BS-22694GS
...
17
SCREW,Tapping, 3.5 x 14 BS-192241GS
...
18
BREAKER, Circuit, 25A BS-191479BGS

Main Unit (199730)

...
...
1
KIT, Cradle BS-J199622GS
...
2
HANDLE BS-J194925GS
...
3
SWITCH, Key BS-199507GS
...
4
ADAPTER, Engine BS-191793GS
...
5
ASSY, Alternator (see "Alternator") BS-~NSP
...
8
WASHER, 8.4 x 22.2 x 3 BS-96796GS
...
9
DECAL, Operation Instructions BS-186640GS
...
10
SCREW-HEX WSHR HD TAP BS-2828635SM
...
11
HHCS, 5/16-24 x 8.62 BS-187365BGS
...
13
AXLE BS-196914GS
...
14
KIT, Vibration Mount Hardware (2 sets) BS-192553GS
...
15
KIT,Wheel BS-193548GS
...
16
RETAINER, RING, 1/2 BS-703976
...
17
BOLT, Carriage, 1/4-20 x 1-3/4 BS-31669GS
...
18
MOUNT, Tiewrap BS-195733GS
...
19
KNOB, Handle BS-194289GS
...
20
DECAL, Ground BS-B4986GS
...
21
KIT,Vibration Mount BS-194727GS
...
22
SCREW BS-690297
...
24
BRACKET, Mounting Head Guard BS-198975GS
...
25
CAP, Bolt, Rotor BS-191190GS
...
26
TAPTITE, M5 - 0.8 x 10 BS-74908GS
...
27
GUARD, Head BS-199496GS
...
28
SCREW, HEX, 1/4-20X.5 BS-704130
...
29
ASSY, Tube Lift BS-196063GS
...
30
SHIELD, Fuel Fill BS-192921GS
...
31
DECAL, Caution Exhaust BS-196830GS
...
32
DECAL, Battery Instructions BS-193504GS
...
33
KIT, Retaining Brckt with Hardware BS-194721GS
...
34
COVER, RBC, Plastic BS-191029GS
...
35
LINE, Fuel BS-791745
...
36
NUT, M6 - 1.0 Wing BS-87680GS
...
39
TAPE, Foam, Battery Tray BS-198874GS
...
43
SOLENOID, Starter BS-691656
...
44
ASSY,Tank, 7-Gallon, with Labels BS-193345GS
...
45
CAP, Fuel Tank BS-90878GS
...
46
MOUNT, Vibration, Inner BS-195340GS
...
47
MOUNT, Vibration, Outer BS-195341GS
...
49
SCREW, 5/16 - 18 x 5.25,Taptite BS-195342GS
...
50
ASSY, Jack Coaxial, DC BS-198925GS
...
58
ASSY, Control Panel (see "Control Panel") BS-199463GS
...
60
KIT, Overflow Fuel Hose w/ Clamp BS-200445GS
...
67
HARNESS, AC BS-192809GS
...
68
STRAP, Battery Hold Down BS-196569GS
...
69
BATTERY, 12V w/Hardware BS-193463GS
...
70
KIT, Hardware Battery BS-193347GS
...
71
CABLE, Red, Solenoid to Starter BS-189302JGS
...
76
CABLE, Blk, Battery to Engine BS-185939SGS
...
78
CABLE, Red, Battery to Solenoid BS-189302MGS
...
MANUAL, Operator's Not Illustrated BS-196997GS
...
MANUAL, Engine Not Illustrated BS-MS5936
...
TIEWRAP, Overflow Hose Not Illustrated BS-28739AGS
...
KIT, Decals Not Illustrated BS-200446GS
...
DECAL, Family, CA, EVP Not Illustrated BS-199384GS
...
DECAL,Warning Not Illustrated BS-195247GS
...
DECAL, Instructions Fuel Level Not Illustrated BS-192808GS
...
CHARGER, Battery Not Illustrated BS-84002790
...
SET, Key Not Illustrated BS-691959
...
Front Draw Bar w/Spindles-RH Side Optional Accessories BS-100126

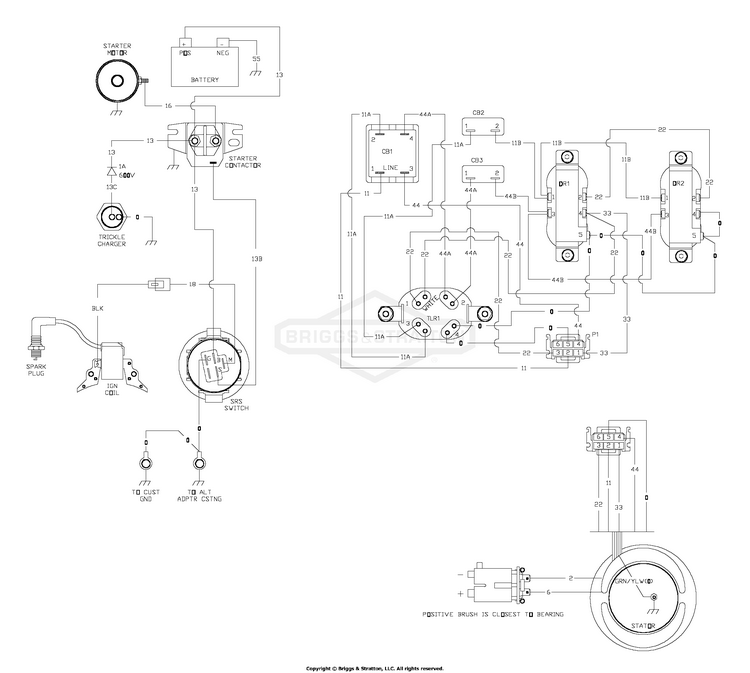

Wiring Diagram (199729)

...

No Parts Available for this Schematic

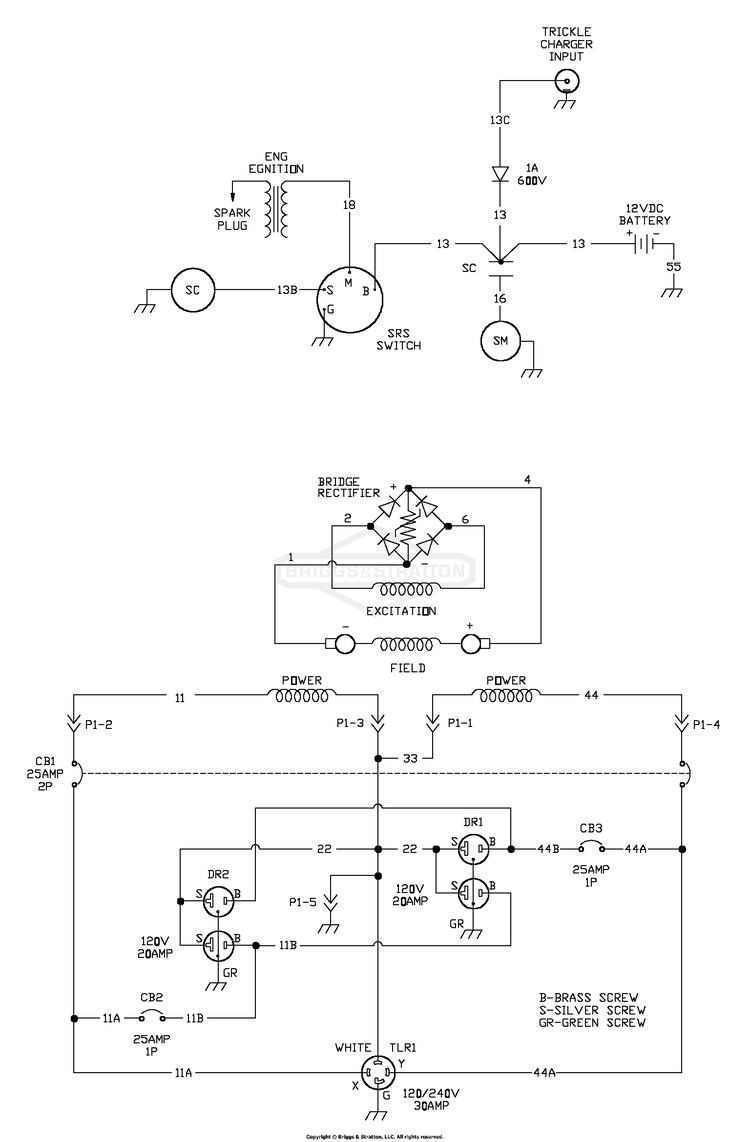

Wiring Schematic (199729)

...

No Parts Available for this Schematic

...
...
...
...
...
