020224-1 Briggs and Stratton Pressure Washer 2,700 PSI

Model: 020224-1

Save
 Part Not Listed?Part Not Listed?
product name

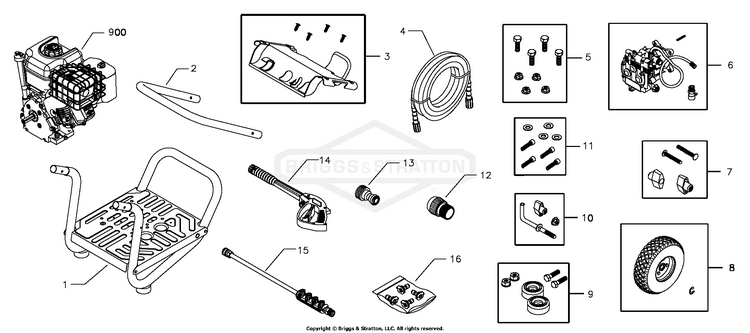

Main Unit

...
...
1
ASSY, Base BS-198732GS
...
2
HANDLE BS-M194567GS
...
3
ASSY, Billboard w/Decals & Clips BS-200170GS
...
Clips, Tree BS-195964GS
...
4
HOSE ASSEMBLY BS-84006753
...
5
KIT, Engine Mounting Hardware BS-192318GS
...
6
PUMP BS-317054GS
...
Key BS-23139DGS
...
Valve, Thermal Relief BS-94298GS
...
7
KIT, Handle Fastening BS-B2203GS
...
8
KIT, Wheel BS-194509GS
...
E-RING BS-703977
...
9
KIT, Vibration Mount BS-192310GS
...
10
KIT, Hook BS-193819GS
...
11
KIT, Pump Mounting Hardware BS-192131GS
...
12
Garden Hose Quick Connect BS-7175187GS
...
13
Garden Hose Quick Connect BS-7175187GS
...
14
GUN BS-84003228
...
15
EXTENSION, QC BS-207796GS
...
16
KIT, Nozzle BS-202514GS
...
Nozzle, QC, Plastic, Soap BS-198841GS
...
Nozzle, QC, Red BS-195983WGS
...
NOZZLE-QC YELLOW BS-195983XGS
...
Nozzle, QC White BS-195983ZGS
...
MANUAL, Operator's Not Illustrated BS-203763GS
...
MANUAL, Engine Not Illustrated BS-MS3431
...
AXLE Not Illustrated BS-191267SGS
...
FITTING, 1/2" Not Illustrated BS-192014GS
...
FITTING, 3/4" Not Illustrated BS-192015GS
...
KIT, INT'L Tag Warning Not Illustrated BS-200171GS
...
KIT-O-RING Not Illustrated BS-705001
...
PUMP SAVER Optional Accessory BS-6039

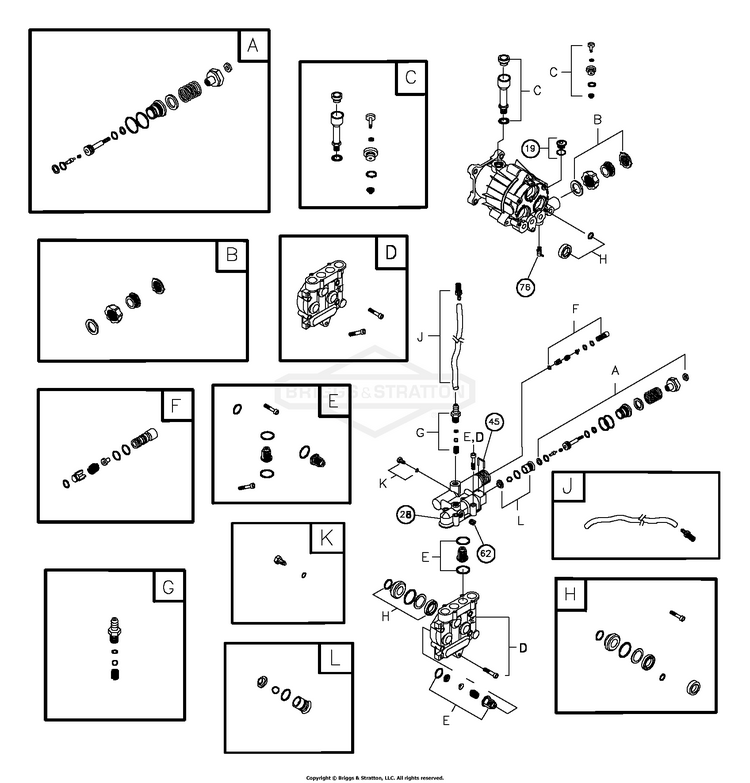

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190673GS
...
45
PIN BS-190578GS
...
62
CAP, 1/8 BS-190581GS
...
76
VALVE, Thermal Relief BS-208673GS
...
A
KIT, Unloader Service kits include all parts shown within the box. BS-190594GS
...
B
KIT, Water Inlet Service kits include all parts shown within the box. BS-190670GS
...
C
KIT, Breather Tube Service kits include all parts shown within the box. BS-190669GS
...
D
KIT, Head Brass Service kits include all parts shown within the box. BS-193808GS
...
E
KIT, Check Valves Service kits include all parts shown within the box. BS-193806GS
...
F
KIT, Inlet Check Service kits include all parts shown within the box. BS-190592GS
...
G
KIT, Chemical Injection Service kits include all parts shown within the box. BS-190593GS
...
H
KIT, Seal Set Service kits include all parts shown within the box. BS-193807GS
...
J
KIT, Chemical Hose Service kits include all parts shown within the box. BS-189971GS
...
K
KIT, Pipe Fitting Service kits include all parts shown within the box. BS-193971GS
...
L
KIT, Unloader Seat Service kits include all parts shown within the box. BS-193972GS
...
FILTER, Inlet Not Illustrated BS-B2384GS
...
OIL BOTTLE Not Illustrated BS-190586GS
...
FILTER, Inlet, Bag of 10 Not Illustrated BS-186452GS
...
...
...
...
...
