01938-0 Briggs and Stratton 10,000 Watt Home Generator System

Model: 01938-0

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

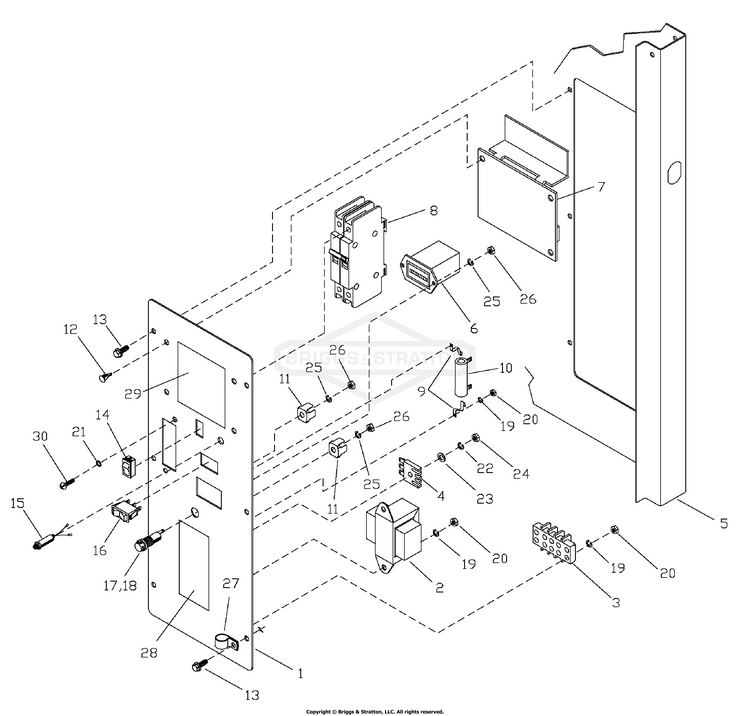

Control Panel Group

...
...
1
PANEL BS-190902GS
...
2
TRANSFORMER BS-192366GS
...
3
TERMINAL BS-192320GS
...
4
RECTIFIER, Battery Charge BS-65795GS
...
5
BULKHEAD, Engine BS-H185967GS
...
6
METER-HOUR BS-202602GS
...
7
BOARD, Circuit BS-191652GS
...
8
BREAKER, Circuit, 50A BS-208790GS
...
9
BRACKET BS-B4893GS
...
10
RESISTOR BS-B4867GS
...
11
LUG BS-57345GS
...
12
STANDOFF BS-186413GS
...
13
SCREW, HEX, 1/4-20X.5 BS-704130
...
14
SWITCH, ON/OFF BS-87799GS
...
15
LAMP, LED BS-B5133GS
...
16
SWITCH, ON/OFF/ON BS-186443GS
...
17
HOLDER, Fuse BS-191302GS
...
18
FUSE BS-22676GS
...
27
CLIP, Retainer, Fuel Hose BS-192940GS
...
28
DECAL, Operation Instructions BS-186640GS
...
29
DECAL, Operation Instructions BS-186640GS
...
--
Assy, Connector Service (Not Illustrated) BS-201057GS
...
...
...
...
...
