01938-0 Briggs and Stratton 10,000 Watt Home Generator System

Model: 01938-0

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

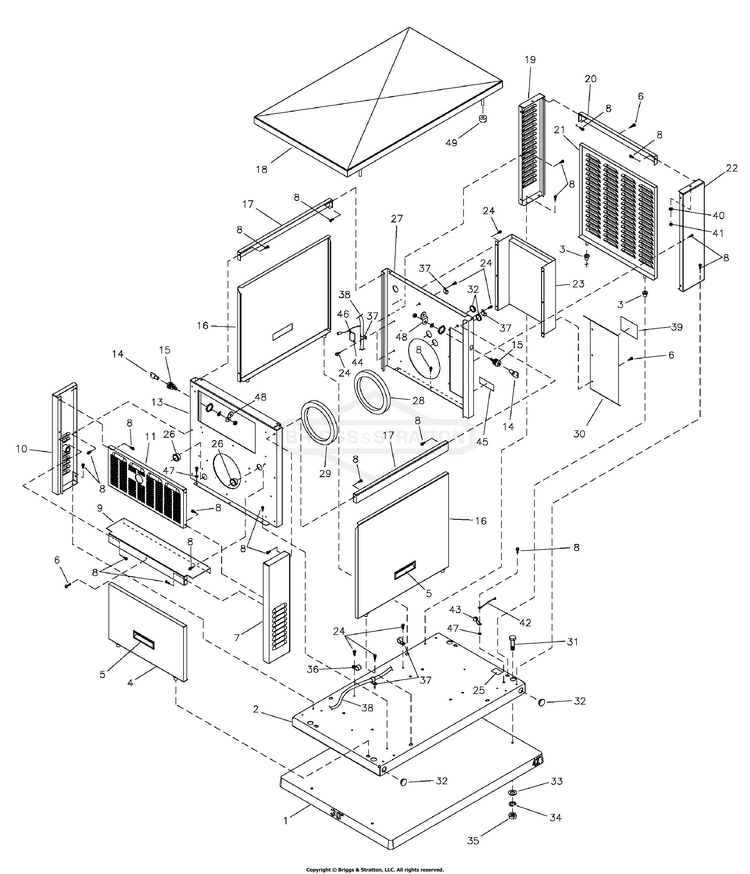

Enclosure Group

...
...
1
PAD, MTG, STAND BY GEN, BS-186104GS
...
2
BASE BS-H185972GS
...
3
GROMMET BS-186061GS
...
4
DOOR BS-191410GS
...
5
HANDLE BS-186049GS
...
6
SCREW BS-189792GS
...
7
CORNER, HGS BS-191408GS
...
8
SCREW, HEX, 1/4-20X.5 BS-704130
...
9
BAFFLE BS-H185968GS
...
10
CORNER, HGS BS-191409GS
...
11
VENT BS-H185965GS
...
13
BULKHEAD, Alternator BS-H191972GS
...
14
KEY, Latch BS-B5053GS
...
15
LOCK, Door BS-186172GS
...
16
DOOR BS-191406GS
...
17
SUPPORT, Rail BS-H186046GS
...
18
ROOF BS-H187234GS
...
19
CORNER BS-H185963GS
...
20
SUPPORT, Rail BS-H186047GS
...
21
DOOR BS-H185969GS
...
22
CORNER BS-H185964GS
...
23
BAFFLE BS-H187235GS
...
24
TAPTITE BS-74908GS
...
25
DECAL SHEET, WARNINGS BS-705920
...
26
BUSHING, Snap BS-186173GS
...
27
BULKHEAD, Engine BS-H185967GS
...
28
SEAL BS-770801
...
29
SEAL BS-770802
...
30
COVER, Control Panel BS-H186760GS
...
32
PLUG, Hole BS-185976GS
...
36
CLIP, Retainer, Fuel Hose BS-192940GS
...
37
CLAMP BS-192767GS
...
38
HARNESS, Wiring BS-192344GS
...
39
DECAL BS-B5082AGS
...
41
NUT BS-67885GS
...
42
WIRE BS-186790AGS
...
43
LUG BS-186345GS
...
44
DECAL, Operation Instructions BS-186640GS
...
45
DECAL BS-192467GS
...
48
CAMBAR, Lock BS-192804GS
...
49
WASHER BS-194415GS
...
--
KIT, Seal (Not Illustrated) BS-187008GS
...
...
...
...
...
