01938-0 Briggs and Stratton 10,000 Watt Home Generator System

Model: 01938-0

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

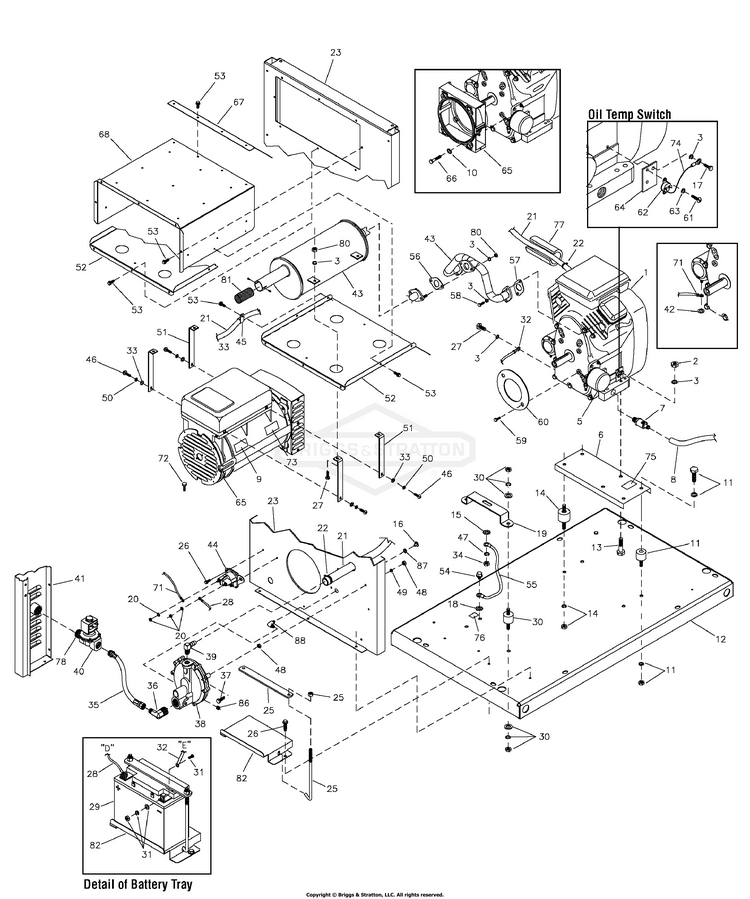

Main Unit Group

...
...
5
FILTER, Oil BS-492932S
...
6
SUPPORT-ENGINE BS-H186285GS
...
7
HOSE, Oil Drain BS-1723165SM
...
8
HOSE, Oil Drain BS-1723165SM
...
9
DECAL, Operation Instructions BS-186640GS
...
11
MOUNT, Vibration BS-194254GS
...
12
BASE BS-H185972GS
...
14
MOUNT, Vibration BS-194259GS
...
16
E-RING BS-189294GS
...
19
SUPPORT, Alternator BS-H188046GS
...
20
KIT, Hardware BS-194251GS
...
21
HOSE, Flex, NG/LPG BS-186152GS
...
22
CLAMP BS-57822GS
...
23
Bulkhead, Alternator Side BS-H191972GS
...
25
KIT, Hardware, Battery BS-194250GS
...
26
SCREW, HEX, 1/4-20X.5 BS-704130
...
28
WIRE BS-188574GS
...
29
BATTERY BS-188443GS
...
30
MOUNT, Vibration BS-194253GS
...
31
KIT, Hardware, Battery Terminal BS-194252GS
...
32
WIRE BS-188573GS
...
35
HOSE BS-186148GS
...
36
FITTING BS-186151GS
...
38
REGULATOR, FUEL BS-84012834
...
39
FITTING BS-186150GS
...
40
SOLENOID, Gas Fuel BS-194683GS
...
41
CORNER, HGS BS-191409GS
...
43
KIT, Exhaust BS-205626GS
...
44
SOLENOID, Starter BS-691656
...
45
CLAMP BS-192669GS
...
51
BRACKET BS-H191993GS
...
52
BASE BS-H186030GS
...
53
CRIMPTITE BS-56893GS
...
54
SCREW, 3/8-16X.75 BS-703950
...
55
WIRE BS-186790AGS
...
56
GASKET, Exhaust BS-186062GS
...
57
GASKET, Exhaust BS-691613
...
60
DISK BS-B4260GS
...
62
SWITCH, Temp BS-204426GS
...
64
PLATE, Temp Switch BS-186206GS
...
67
COLLECTOR BS-H186320GS
...
68
BOX, Muffler Top BS-H186038GS
...
71
WIRE BS-185939CGS
...
73
DECAL BS-193506GS
...
74
WIRE BS-186790CGS
...
75
DECAL, Operation Instructions BS-186640GS
...
76
DECAL SHEET, WARNINGS BS-705920
...
77
INSULATION BS-186551GS
...
78
FITTING BS-26915GS
...
81
ARRESTOR, Spark BS-187277GS
...
82
TRAY, Battery BS-H189951GS
...
86
PLUG BS-96137GS
...
87
Washer, Flat 1/2 BS-22304GS
...
88
FITTING BS-A6344GS
...
--
CAP, Funnel (Not Illustrated) BS-B3518GS
...
--
MANUAL, Installation (Not Illustrated) BS-192385GS
...
--
MANUAL, Operator's (Not Illustrated) BS-192384GS
...
--
MANUAL, Operator's (Not Illustrated) BS-276344TRI
...
--
KEY, Latch (Not Illustrated) BS-B5053GS
...
--
PAINT, Touch Up, Tan (Not Illustrated) BS-B5478GS
...
--
HOSE-FLEX NG/LPG (Not Illustrated) BS-202295GS
...
--
KIT,SERVICE,WALL PLATE (Not Illustrated) BS-313326GS
...
...
...
...
...
