01917-0 Briggs and Stratton Transfer System 50 Amp Automatic Transfer Switch

Model: 01917-0

Save
 Part Not Listed?Part Not Listed?
product name

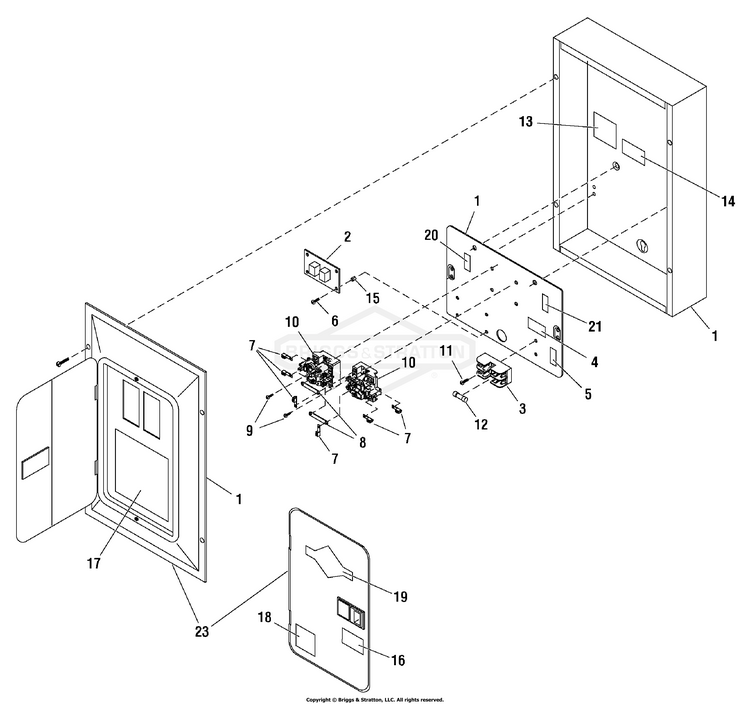

Transfer Switch

...
...
2
BOARD, Circuit BS-192909GS
...
3
HOLDER, Fuse BS-192151GS
...
4
DECAL BS-190984GS
...
5
DECAL SHEET-WARNINGS BS-704418
...
6
TAPTITE BS-193626GS
...
7
BLOCK-TERMINAL BS-706901
...
8
BAR, Bus BS-189916GS
...
9
TAPTITE BS-194205GS
...
10
RELAY BS-185891GS
...
11
TAPTITE BS-193239GS
...
12
FUSE BS-205110GS
...
13
DECAL BS-190983GS
...
14
DECAL BS-190982GS
...
15
SPACER BS-192701GS
...
16
DECAL BS-205395GS
...
17
DECAL BS-192707GS
...
18
DECAL BS-192708GS
...
19
DECAL BS-203442GS
...
20
DECAL BS-B5106GS
...
21
DECAL BS-B5107GS
...
23
COVER, Load Center BS-198161GS
...
--
BREAKER, Circuit, 15A (Not Illustrated) BS-189883GS
...
--
BREAKER, Circuit, 20A (Not Illustrated) BS-189883AGS
...
--
BREAKER, Circuit, 20A (Not Illustrated) BS-189896GS
...
--
MANUAL, Operator's (Not Illustrated) BS-192636GS
...
--
HARNESS, Wiring (Not Illustrated) BS-193800GS
...
--
HARNESS, Wiring, Power (Not Illustrated) BS-193801GS

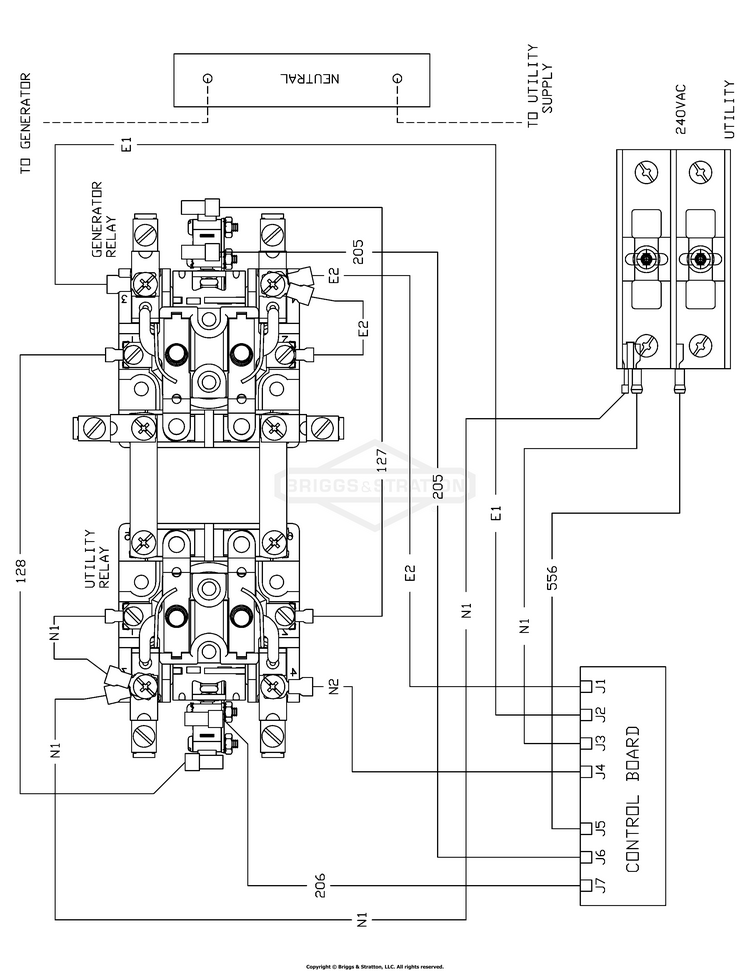

Wiring Diagram - Transfer Switch

...

No Parts Available for this Schematic

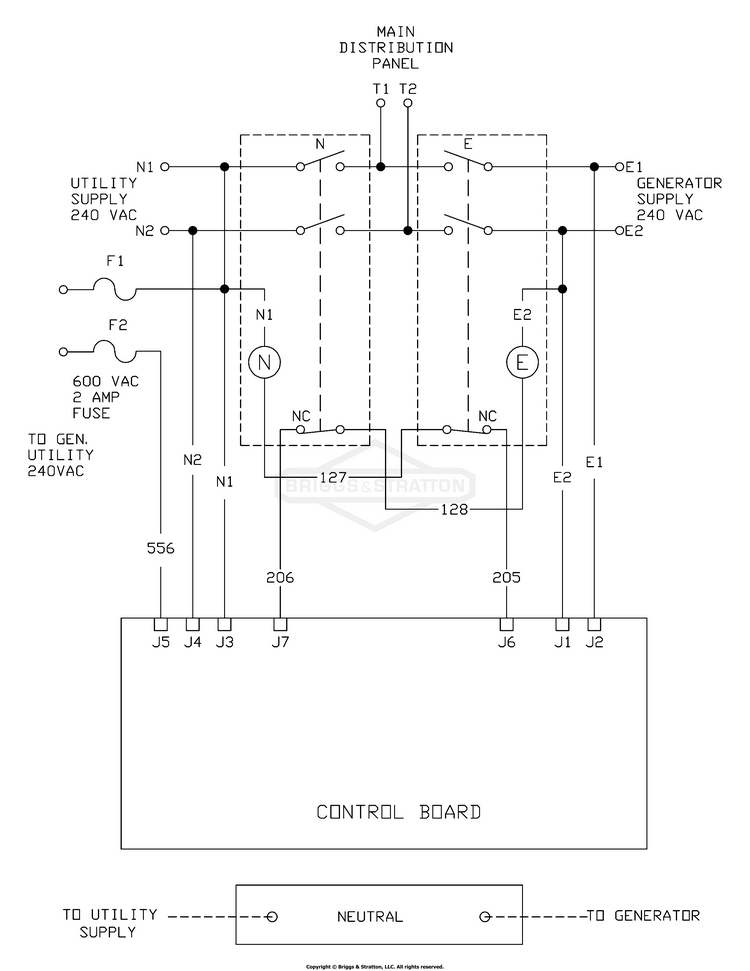

Wiring Schematic - Transfer Switch

...

No Parts Available for this Schematic

...
...
...
...
...
