01815-0 Briggs and Stratton 12,000 Watt Home Generator System

Model: 01815-0

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

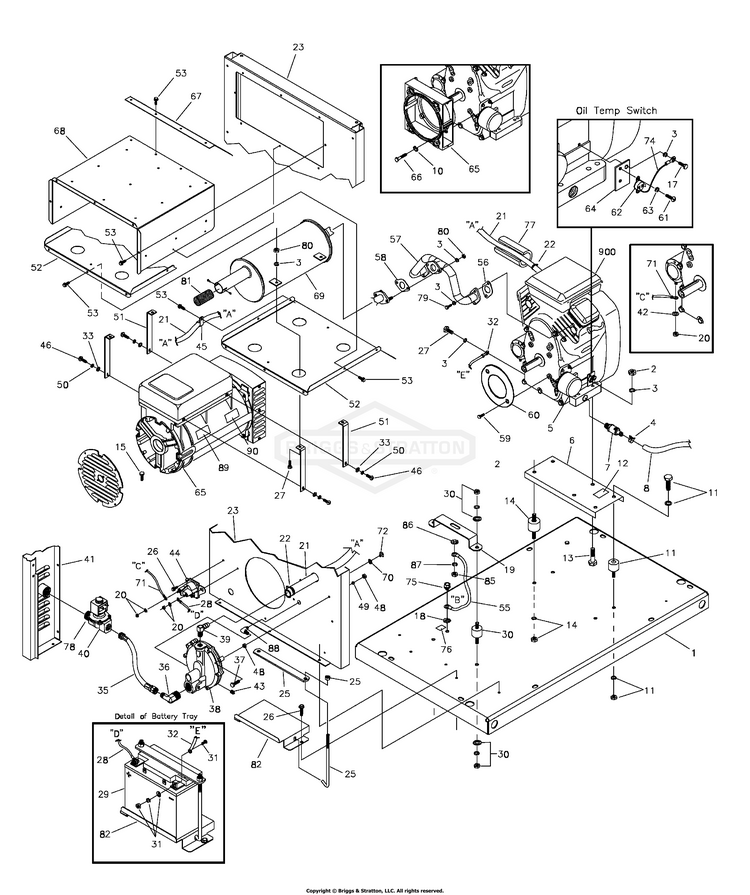

Main Unit Group

...
...
1
Base, Mount BS-H185972GS
...
4
Clip, Hoseband BS-48031JGS
...
5
FILTER, Oil BS-492932S
...
6
Pan, Engine Mounting BS-H186285GS
...
7
HOSE, Oil Drain BS-1723165SM
...
8
HOSE, Oil Drain BS-1723165SM
...
11
Kit, Vibration Mount BS-194254GS
...
12
DECAL, Operation Instructions BS-186640GS
...
14
Kit, Vibration Mount BS-194259GS
...
19
Support, Alt. BS-H188046GS
...
20
Kit, Starter Contact Hardware BS-194251GS
...
21
Hose, Gas Regulator to Engine BS-186152GS
...
22
Clamp, Hose BS-57822GS
...
23
Bulkhead, Alternator Side BS-H191972GS
...
25
Kit, J-Bolt & Battery Strap BS-194250GS
...
26
SCREW, HEX, 1/4-20X.5 BS-704130
...
28
Cable, Battery Positive BS-188574GS
...
29
Battery, 33AH, w/Hardware BS-188443GS
...
30
Kit, Vibration Mount BS-194253GS
...
31
Kit, Battery Hardware BS-194252GS
...
32
Cable, Battery Negative BS-188573GS
...
35
Hose, Gas - Regulator BS-186148GS
...
36
Elbow, Brass, 3/4" NPT x 1/2" Gas BS-186151GS
...
38
REGULATOR, FUEL BS-84012834
...
39
Elbow, Brass 3/8 NPT BS-186150GS
...
40
SOLENOID, Gas Fuel BS-194683GS
...
41
Assy, Corner, LH, SRV BS-191409GS
...
43
Plug, 1/8" - 27 BS-96137GS
...
44
SOLENOID, Starter BS-691656
...
45
Clamp, Hose, "J" BS-192669GS
...
47
Plug, Dome BS-187049GS
...
51
Bracket, Muffler BS-H186125GS
...
52
Base, Muffler Box BS-H186030GS
...
53
Crimptite, 10 - 24 x 1/2" BS-56893GS
...
54
Fitting, Barbed, 90°, 1/8" NPT BS-A6344GS
...
55
Wire, Ground BS-186790DGS
...
56
Gasket, Manifold BS-806425
...
57
Kit, Manifold With Gaskets BS-195143GS
...
58
Gasket, Manifold, Muffler BS-186062GS
...
60
Disk, Air Blocker BS-B4260GS
...
62
SWITCH, Temp BS-204426GS
...
64
Plate, Oil Temp Switch BS-186206GS
...
67
Deflector, 45° Muffler Box BS-H186320GS
...
68
Box, Muffler BS-H186038GS
...
69
Muffler BS-192676GS
...
70
Washer, Flat 1/2 BS-22304GS
...
71
Cable, Starter BS-185939CGS
...
72
E-Ring BS-189294GS
...
74
Wire, Ground BS-186790CGS
...
75
SCREW, 3/8-16X.75 BS-703950
...
76
DECAL SHEET, WARNINGS BS-705920
...
77
Insulation, Fuel Hose BS-186551GS
...
78
Nipple, 3/4" NPT BS-26915GS
...
81
Screen, Spark Arrestor w/Screws BS-187277GS
...
82
Tray, Battery Support BS-H189951GS
...
88
Fitting, Barb, 90° BS-A6344GS
...
89
DECAL, Operation Instructions BS-186640GS
...
90
Decal, Hot Surface BS-193506GS
...
--
KIT,SERVICE,WALL PLATE (Not Illustrated) BS-313326GS
...
--
Cap, Funnel, Oil Bottle (Not Illustrated) BS-B3518GS
...
--
Assy, Key (Not Illustrated) BS-B5053GS
...
--
Paint, Touch-Up (Not Illustrated) BS-B5478GS
...
--
Hose, Flex (Not Illustrated) BS-190824GS
...
--
Kit, Sound Shield (Not Illustrated) BS-193873GS
...
--
HANG TAG, Attn Standby Equipment (Not Illustrated) BS-195200GS
...
--
Warmer, Battery, 240 Volt (Optional Accessory) BS-01915
...
--
Warmer, Oil, 240 Volt (Optional Accessory) BS-01916
...
...
...
...
...
